Large Air Volume 3200RPM 120mm Blower Fan Waterproof With Induction Motor
AC Axial Cooling Fan Capacitor Type 120x120x38mm 110V 220V 12038 Capacitor-Run External Rotor Induction Motor
What is an AC axial fan?
Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...
Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
AC Axial Cooling Fan Capacitor Type RGC12038
Energy Saving Noise Reduction Soft Wind Long Lasting
Basic Parameter:
| Model No. | Bearing | Frequency | Voltage | Current | Rated Input Power | Air Flow | Static pressure | Noise | Speed | |
| (Hz) | (V) | (A) | (W) | (CFM) | (Inch-H2O) | (dBA) | (RPM) | |||
| RGC12038B1HA | Dual Ball | 50Hz | 100~125V | 0.20/0.27 | 30 | 84 | 0.32 | 45 | 2800 | |
| 60Hz | 31 | 95 | 0.28 | 50 | 3200 | |||||
| RGC12038B2HA | 50Hz | 220~240V | 0.12/0.13 | 36 | 84 | 0.32 | 45 | 2800 | ||
| 60Hz | 35 | 95 | 0.28 | 50 | 3200 | |||||
All designs and specifications are for reference only and are subject to change without prior notice.
The different customer requirements and different raw materials will lead to different data.
The provider data are used for reference only. For future information, please contact us.
| Product Name | AC Axial Cooling Fan Capacitor Type |
| Warranty | 1 Year |
| After-sales Service | Free Spare Parts |
| Frame | Aluminum Alloy, Painted Black |
| Impeller | Retardant Thermoplastic In Black |
| Motor | Capacitor-Run External rotor induction |
| Waterproof Grade | Ip 55 |
| Certification | CE, RoHS |
| Lifetime | 40000 Hours |
| Customized Support | OEM, ODM |
| Storage Temperature | -20℃~80℃ |
| Operating Temperature | -10℃~70℃ |
| Power Connection | Terminal, Lead Wire |
Applicable: Manufacturing Plant, Machinery Repair Shops, etc
Power Connection:
Terminal
Lead Wire

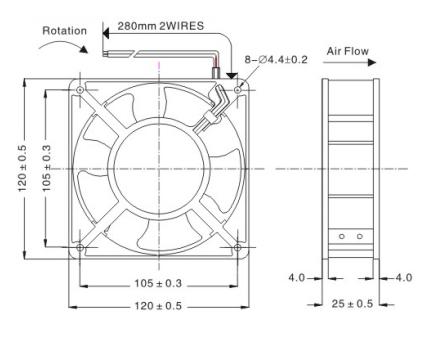

Drawing:
Characteristic Curve:
Parts:
Payment:
1.Trade Assurance: In the first order, we suggest you use Trade Assurance.
2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.
3.Western Union, Money Gram, Paypal, all available.
4.L/C: for large order.
Shipping:
1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.
2. if you have your own forwarder, please tell us the detailed information.
Q1: Are you a factory or trading company?
A1: Yes, We are a factory which has 15 years of manufacturing history.
Q2: What is DC Fan and AC fan?
A2: DC fan is power by DC voltage, always is 5V 12V 24V 48V 60V and72V.
AC fan is power by AC voltage, always is 110V,220V, and 380V.
Q3: How to choose Fan?
A3: To choose a Fan, you should consider the points below:
a. Fan size
b. Fan voltage
c. Fan speed
d. Fan bearing type? ( Sleeve-bearing or Ball-bearing type?)
e. Fan power ( Wattage) f. Fan airflow.
Q4: How long is the warranty?
A4: We Guarantee 1 years warranty.
Q5: What is the delivery time?
A5: Sample lead time:3-5 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)
