40mm DC Axial Cooling Fan
40x40x10 Axial Cooling Fan Portable DC Blower For Ventilation Confined Space Blower Exhaust Fan Customized
What is a DC cooling fan?
DC fans also known as DC Brushless Fans are basically cooling fans engineered to meet requirements such as higher air flows at high static pressures. RENGANG manufactures Brushless DC fans in varied sizes ranging from 60 mm to 280 mm. These fans are available in the plastic blade as well as the metal blade.
DC Axial Cooling Fan RGD4010
Energy Saving Noise Reduction Soft Wind Long Lasting
Basic Parameters:
| Model No. | Bearing | Voltage | Current | Rated input power | Airflow | Air pressure | Noise | Speed | |||||
| (V) | (A) | (W) | (CFM) | (m3/min) | (mm-H2O) | (inch-H2O) | (dBA) | (RPM) | |||||
| RGD4010H5B(S) | Ball/Sleeve | 5 | 0.28 | 1.4 | 6.66 | 0.19 | 4.55 | 0.18 | 28 | 7000 | |||
| RGD4010M5B(S) | 0.25 | 1.25 | 5.75 | 0.16 | 3.55 | 0.14 | 24 | 6000 | |||||
| RGD4010L5B(S) | 0.20 | 1.00 | 4.85 | 0.14 | 2.52 | 0.09 | 20 | 5000 | |||||
| RGD4010H12B(S) | 12 | 0.12 | 1.44 | 6.66 | 0.19 | 4.55 | 0.18 | 28 | 7000 | ||||
| RGD4010M12B(S) | 0.10 | 1.20 | 5.75 | 0.16 | 3.55 | 0.14 | 24 | 6000 | |||||
| RGD4010L12B(S) | 0.06 | 0.72 | 4.85 | 0.14 | 2.52 | 0.09 | 20 | 5000 | |||||
| RGD4010H24B(S) | 24 | 0.03 | 1.44 | 6.66 | 0.19 | 4.55 | 0.18 | 28 | 7000 | ||||
| RGD4010M24B(S) | 0.05 | 1.20 | 5.75 | 0.16 | 3.55 | 0.14 | 24 | 6000 | |||||
| RGD4010L24B(S) | 0.04 | 0.96 | 4.85 | 0.14 | 2.52 | 0.09 | 20 | 5000 | |||||
If the parameters you need are not in the table,
Please contact us, We can customize it according to your requirements.
Customized Support: OEM, ODM.
After-sales Service Provided: Free Spare Parts
Operating temperature: -10℃~60℃
Storage temperature: -20℃~70℃
Warranty: 1 Year
Motor protection: Polarity Protection
Dielectric strength: 500V/1mA/2s
Applicable: Home Appliances, Small Equipment, etc

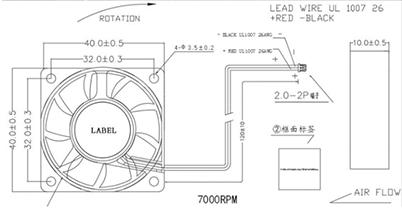

Drawing:
Performance Curve:
Schematic diagram of the cooling fan assembly:
Payment:
1.Trade Assurance: In the first order, we suggest you use Trade Assurance.
2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.
3.Western Union, Money Gram, Paypal, all available.
4.L/C: For large orders.
Shipping:
1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.
2. if you have your own forwarder, please tell us the detailed information.
FAQ
Q: Why did you choose us?
A: Surmount brand has a very good reputation in China, with a focus on improvement of quality & research, flexible service, best solution providers.
Q: How many workers do you have and how many production lines do you own?
A: We have 250-300 workers in normal time, we employ more workers in peak season, about 300 workers.
We own 7 production lines.
Q: Can you customize the required fan or blower?
A: Of course, we have a professional engineering team that can design and develop new fans or blowers according to customer’s requirements.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples before ordering.
Q: Can I have a discount on the quoted price?
A: Yes, The quoted price is based on annual usage quantity.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
