Plastic DC Brushless Fan 40x40x10mm Round Type 5V 12V For Car Equipment
DC Brushless Fan 40x40x10mm Round Type 5V 12V Used On The Car Equipment
What is a DC cooling fan?
DC fans also known as DC Brushless Fans are cooling fans engineered to meet requirements such as higher air flows at high static pressures. RENGANG manufactures Brushless DC fans in varied sizes ranging from 60 mm to 280 mm. These fans are available in the plastic blade as well as the metal blade.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
DC Axial Cooling Fan RGD4010
Energy Saving Noise Reduction Soft Wind Long Lasting
Basic Parameters:
| Model No. | Bearing | Voltage | Current | Rated input power | Airflow | Air pressure | Noise | Speed | |||||
| (V) | (A) | (W) | (CFM) | (m3/min) | (mm-H2O) | (inch-H2O) | (dBA) | (RPM) | |||||
| RGD4010VH5B(S) | Ball/Sleeve | 5 | 0.22 | 1.10 | 6.19 | 0.18 | 4.52 | 0.18 | 32 | 7000 | |||
| RGD4010H5B(S) | 0.17 | 0.85 | 4.97 | 0.14 | 3.29 | 0.13 | 27 | 6000 | |||||
| RGD4010M5B(S) | 0.11 | 0.55 | 4.08 | 0.11 | 2.41 | 0.09 | 23 | 5000 | |||||
| RGD4010L5B(S) | 0.08 | 0.40 | 3.49 | 0.10 | 1.63 | 0.08 | 20 | 4000 | |||||
| RGD4010VH12B(S) | 12 | 0.15 | 1.8 | 6.19 | 0.18 | 4.52 | 0.18 | 32 | 7000 | ||||
| RGD4010H12B(S) | 0.12 | 1.44 | 4.97 | 0.14 | 3.29 | 0.13 | 27 | 6000 | |||||
| RGD4010M12B(S) | 0.10 | 1.20 | 4.08 | 0.11 | 2.14 | 0.09 | 23 | 5000 | |||||
| RGD4010L12B(S) | 0.08 | 0.96 | 3.49 | 0.10 | 1.63 | 0.08 | 20 | 4000 | |||||
| RGD4010VH24B(S) | 24 | 0.09 | 2.16 | 6.19 | 0.18 | 4.52 | 0.18 | 32 | 7000 | ||||
| RGD4010H24B(S) | 0.07 | 1.68 | 4.97 | 0.14 | 3.29 | 0.13 | 27 | 6000 | |||||
| RGD4010M24B(S) | 0.05 | 1.20 | 4.08 | 0.11 | 2.41 | 0.08 | 23 | 5000 | |||||
| RGD4010L24B(S) | 0.04 | 0.98 | 43.49 | 0.10 | 1.63 | 0.09 | 20 | 4000 | |||||
If the parameters you need are not in the table,
Please contact us, We can customize it according to your requirements.
Customized Support: OEM, ODM.
After-sales Service Provided: Free Spare Parts
Operating temperature: -10℃~60℃
Storage temperature: -20℃~70℃
Warranty: 1 Year
Motor protection: Polarity Protection
Dielectric strength: 500V/1mA/2s
Applicable: Home Appliances, Small Equipment, etc

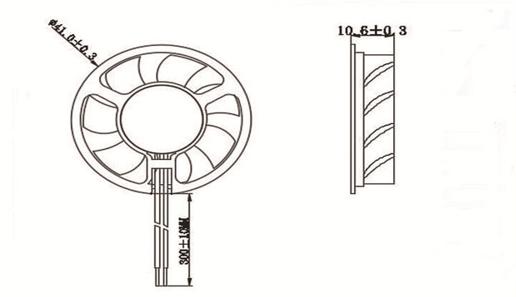

Drawing:

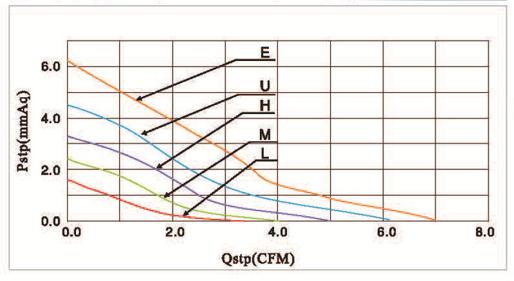

Performance Curve:
Schematic diagram of the cooling fan assembly:
