6038 DC Axial Cooling Fan 60x60x38mm 12V 24V Low Power Consumption

What is a DC cooling fan?
DC fans also known as DC Brushless Fans are basically cooling fans engineered to meet requirements such as higher air flows at high static pressures. RENGANG manufactures Brushless DC fans in varied sizes ranging from 60 mm to 280 mm. These fans are available in the plastic blade as well as the metal blade.

What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.

                                                DC Axial Cooling Fan RGD6038

                          Energy Saving       Noise Reduction      Soft Wind        Long Lasting

Basic Parameters:

If the parameters you need are not in the table,

Please contact us, We can customize it according to your requirements.

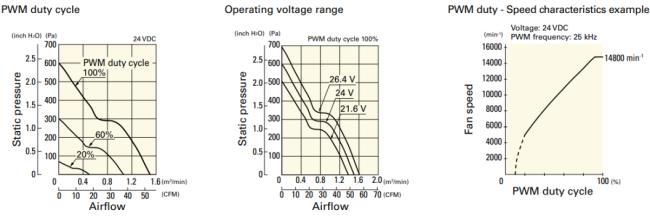

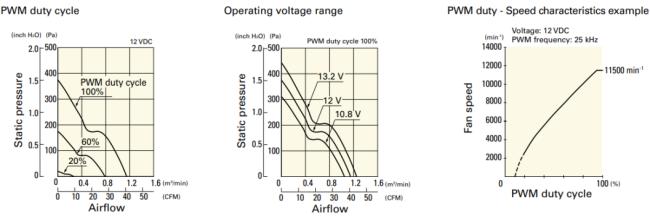

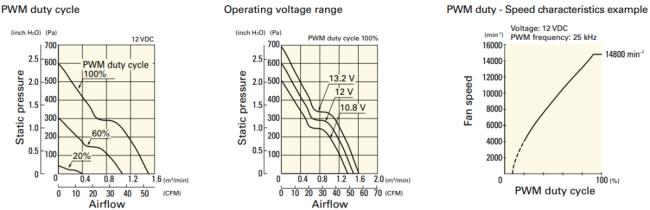

Airflow - Static Pressure Characteristics:

RGD6038H12B

RGD6038M12B

RGD6038H24B

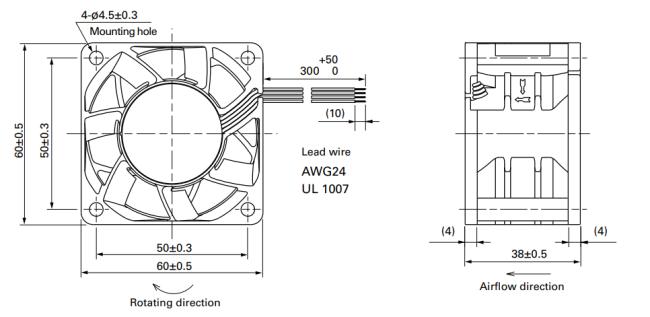

Drawing:

Operation Voltage: 7.5~12.5V/18.0~26.5V/36.0~54.0V

Customized Support: OEM, ODM.

After-sales Service Provided: Free Spare Parts

Operating temperature: -10℃~60℃

Storage temperature: -20℃~70℃

Warranty: 1 Year

Applicable: PC, Cat Seat, Dron, etc

Schematic diagram of the cooling fan assembly:
