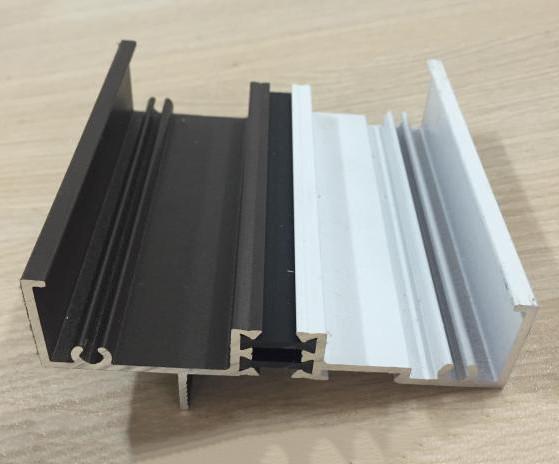

HD50 Aluminium Sliding Door Profiles Anodize Window Extrusion
HD50 Aluminium Sliding Door Profiles Anodize Window Extrusion
6063 Kitchen Cabinet Anodize For Window Door / Exhibition Stands Aluminum Extrusion Profile
Corporate Introduction:
Foshan Dolphin Metal Products Co., LTD is located in Foshan Guangdong. We have been engaged in foreign trade for more than 10 years. The company has two factories in China and one in Vietnam. We provide various high-standing T5&T6 6000 series aluminum profile for doors&windows, conservatory, cabinet&wardrobe, building material and etc. With professional R&D, OEM/ODM are available. Our monthly output reaches more than 8000 Tons, so our customers come from different countries, such as Thailand, Malaysia, Singapore, Vietnam, Burma and etc.
Moreover, the company has a professional and responsible team to help our customers. All processes are visualized during thr order. Before loading, we have quality inspectors to check the products. After the order, the aftersales staff will ask for feedback. We have always been adhering to the concept that customers are friends and teachers. Every feedback is a opportunity to learn and grow. With the development of these years, Dolphin Co., LTD will be further upgraded and expanded.
The surface treatment :
1) Mill Finished
2) Anodized: Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.
3) Electrophoretic coated: Silver, champagne, bronze, black, light bronze, dark bronze.
4) Powder spray coated: Normal color, special color. Thicknes: 60 to 80 um.
5) Fluorocarbon powder spray coated /PVDF Pain: Normal color, special color.
6) Drawbench
7) Steel polished
8) Wood grain coated /Wooden transfer: Imported paper, domestic paper.
Technical requirements
1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered
4) Material: Alloy 6063, 6061 or according to customer’ s choice
Temper: T3, T4, T5, T6
5) Window Accessories: Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7) MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
8) FOB Port: Shanghai Port
Specifications:
1) Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa |
≥ 8% |
Please tell us the information below, and we will give the best suggestion to you !
1. Where you intend to use the aluminium profiles?
2. If you have the estrusion drawing, send us and we develop the correspondence mold.
3. Which color you want or tell us the architectural style you like.
4. Purchase quantity. It will convenient us to give you the best price.
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
Photos:
