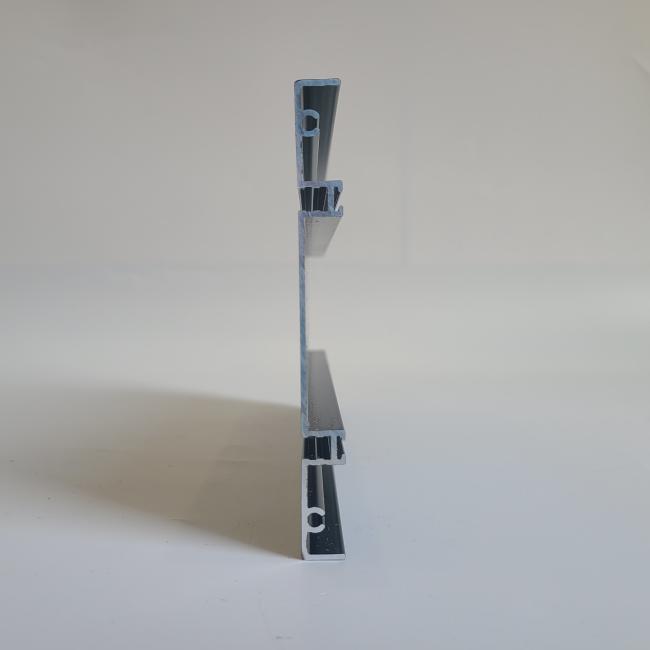

25um Aluminium Sliding Window Profile GB/75237-2004 Powder Painting
Customized Aluminum Window Extrusion Profiles GB/75237-2004 / Powder Painting / Anodizing
Customized Aluminum Window Extrusion Profiles GB/75237-2004 / Powder Painting / Anodizing
Temper: T4, T5, T6 ,T66
Deep process: Milling, Drilling, Bending,Cutting.
Alloy :6063,6061,6005 or according to customer’ s choice
Material:Aluminum
Color:clear, satin, bronze, black, golden, silver, other multicolor
Description:
| Item | Customized Aluminum Window Extrusion Profiles GB/75237-2004 / Powder Painting / Anodizing |
| Material | Aluminium 6000 series alloy, such as 6061, 6063, 6082 etc. |
| Temper | T4, T5, T6 |
| Thickness | General profile thickness:0.8-5.0mm; Anodized protection thickness: 8-25um; Powder coating color thickness: 40-120um. |
| Size | 3m-6m per piece, or customized. |
| Shape | Square, flat, round, hollow, oval, triangle, U-profile, L-profile, T-profile, H-profile, customized available. |
| Surface Treatment | Mill-finish, anodized, powder coated, electrophoresis, wood grain, timber, PVDF paint, polishing, brushed, sand blasting |
| Color | Silver, champagne, black, bronze, gold, white or customized |
| Application | Window and door with thermal break strips, curtain wall, glass wall, furniture, ceiling, kitchen, LED strip, transportation rail, vehicle, motor housing, machine, tent, solar panel, industrial profile, decoration profile etc. |
| Deep Process | CNC, drilling, milling, cutting, tapping, welding, bending, assembling. |
| MOQ | 500 kgs for each item, usually 13-15 tons for a 20GP, 25-28 tons for a 40HQ. |
| OEM service | Drawing, sample or design service offer by customer. |
| Production Capacity | 2400-3000 Metric tons monthly. |
| Brand Name | Hentec |
| Certificatesand Standard | 1) ISO9001-2008/ISO 9001:2008; 2) CQM CERTIFICATES; 3) SGS, CE, BV, JIS, AS, NZS, QUALICOAT, QUOLANOD AVAILABLE. |
| Guarantee | Surface color can be stable for 10-20 years indoor using. |
| Packing Details | Inside: pack with plastic protective film to protect each piece. |
| Outside: wrap to bundle by waterproof craft paper or EPE film, or customized | |
| Delivery time | Die developing and sample testing: 12-18 days . |
| Mass production: 25-30 days after confirming sample by buyer. | |
| FOB Port | Shanghai |
| Payment Terms | T/T 30% for deposit, balance before delivery/LC |
| Settlement Terms | Charge by final actual weight or by drawing theoretical weight. |
Applications
Used in casement doors and windows for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel,etc.
Specifications:
1.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
