Seamless Medium Frequency DC Spot Welding Machine Desktop Wire Terminal
Seamless Medium Frequency Inverter DC Welding Machine Stainless Steel wire terminal Spot Welder
Desk AC precision spot welding machine
Product highlights: desktop structure design, space saving, small current, more precise control, economical
Specifications
D(T)N series spot welding machine main parameters:
|
Model |
DN25 | D(T)N-100 | D(T)N-150 | D(T)N-200 |
| Rated Power (KVA) | 25 | 100 | 150 | 200 |
| Rated Prime (V) | 380 | 380 | 380 | 380 |
| Rated (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Max Current (A) | 13500 | 29000 | 31000 | 35000 |
| Load Con Rate (%) | 25 | 25 | 25 | 25 |
| Arm size (mm) | 500×240 | 500×240 | 450×260 | 450×260 |
| Maximum press (N) | 3900 | 6100 | 10000 | 10000 |
| Electrode stroke (mm) | 60 | 60 | 100 | 100 |
| Cooling capacity (L/min) | 8 | 12 | 12 | 12 |
| Weight (kg) | 220 | 400 | 680 | 720 |
| Electrode cap (mm) | φ13 | φ16 | φ20 | φ20 |
| Electrode holder (mm) | φ20×180 | φ25×180 | φ32×200 | φ32×200 |
| Electrode arm (mm) | φ49×150 | φ59×200 | φ75×240 | φ75×240 |
| Platform (mm) | … | 120×130 | 150×160 | 150×160 |
| Carbon steel overlay mm | 2.5+2.5 | 4.5+4.5 | 5.0+5.0 | 6.0+6.0 |
| Dimension mm L×W×H | 1000×440×1480 | 1050×500×1700 | 1100×680×1850 | 1100×680×1850 |
Product Characteristics:
■ Direct-type Pressure Mechanism:
The guide part adopts new structure with good mobility
■ High Strength Body Structure
Good rigidity, prevent electrode head from sliding under pressure
■Table Design Structure, Good Looking:
Especially suitable for high-precision work pieces and assembly line production
■ Safe and High-performance Pneumatic System
Pressure speed can be adjusted.
■ Water-saving& Water-circulating Cooling System:
Equipped with quick water-cooled connector,convenient to replace water-cooled electrode or fixture.
■ Equipped with a New Generation of Microcomputer Controller:
Accurate and stable current, excellent performance
Application

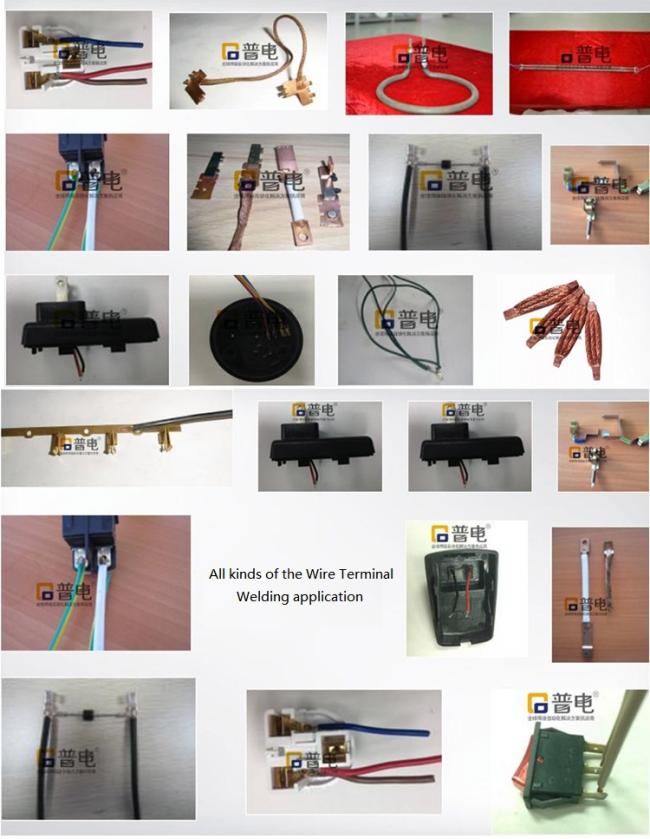

Desktop AC precision spot welding machine is suitable for welding electrical switches, wire terminals, hardware, bimetallic pieces and precision workpieces. It is widely used in the welding of precision components such as electronics, electrical appliances, medical devices and instruments.
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,but customized machines may be more than 25 days.
2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
6.Can you put my brand name (logo) on this Spot Welder?
Yes,we can . In order to explore the market better and provide more convenient services to global customers.
7.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
