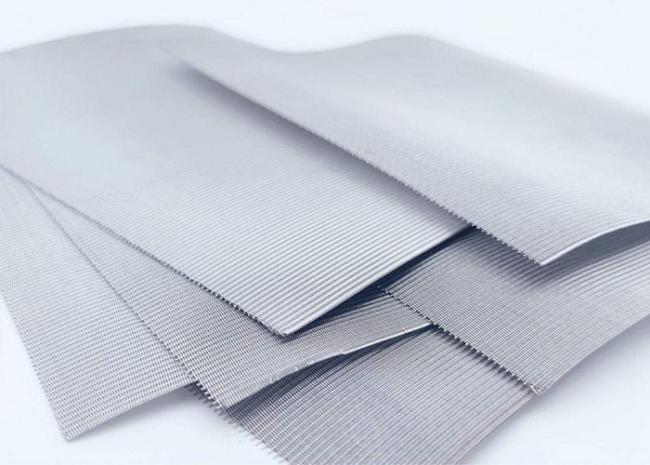

Dutch Weave Stainless Steel Wire Mesh Filter Cloth 80 Micron 24x110
T304/T316 24x110 Mesh Dutch Weave 80 Micron Filter Cloth
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 24x110 Mesh uses plain Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 24x110 per in | 24x110 per 2.54 cm |
| WIRE DIAMETER | 0.0150x0.0100 in | 0.381x0.254 mm |
| OPENING | 0.0031 in | 0.07874 mm |
| OPENING MICRONS | 80 | 80 |
| POROSITY | 65 | 65 |
| OVERALL THICKNESS | 0.0350 in | 0.8890 mm |
| WEIGHT/SQUARE | FOOT0.5200 | lb0.2361 |
Features
80 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 304/316
