Y41 100Ton Hydraulic C Frame Press Machine For Stainless Steel Mild Steel Punching 25Mpa
Price:
5000-25000USD
MOQ:
1 set
Delivery Time:
25 days
Brand:
YUAN
Product Description

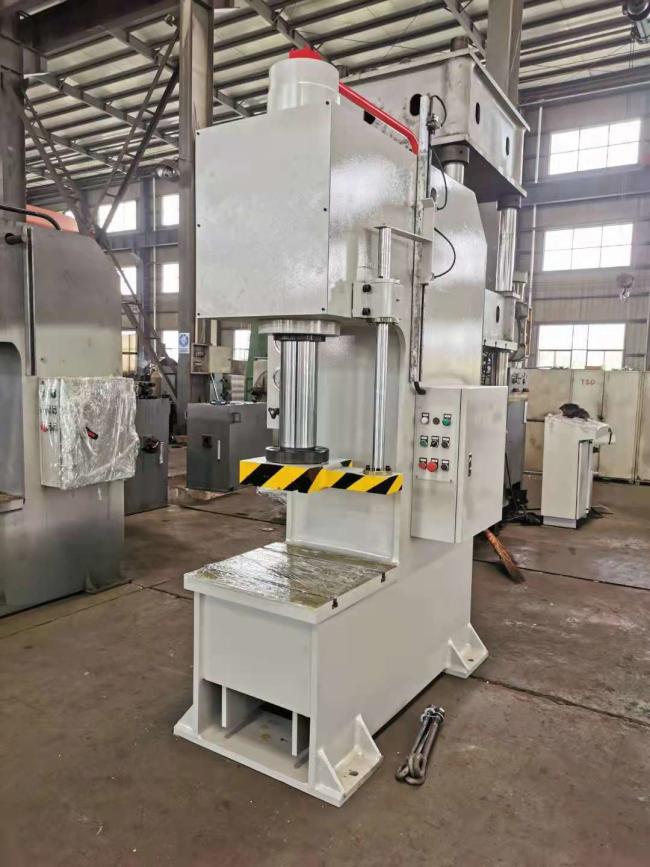

Y41-100 ton C Frame hydraulic power press machine for stainless steel,mild steel punching
This hydraulic press machine could be used in calibration process of shaft parts ,bearing and other similar parts .also could press-fit the shaft and sleeve parts , and this hydraulic press could be used the simple strip shape element stretch, moulding ,blanking , coining and so on processing .
| Product Name | Single column hydraulic press |
| Place Of Origin | Anhui, China |
| OEM/ODM | Available |
| Color | Customized |
| Applicable Field | This series of machine tools can be used for the correction process of shaft parts, profiles, etc., and can be used for the pressing of shafts and sleeve parts and the stretching, bending, embossing, forming, blanking and other processes of simple plate parts and general powders and plastics. Suppression of products. |
| Optional Accessories | Displacement sensor device
Light curtain safety protection device
Oil heating and cooling device
Floating rail and rolling bracket for mold change
PLC
|
Parameters:
| Parameter | Unit | Y41-100 |
| Nominal Force | KN | 1000 |
| Working table height | mm | 800 |
| Max. hydraulic pressure | MPa | 25 |
| Throat depth | mm | 400 |
| Stroke of slide | mm | 600 |
| Max. Open height | mm | 800 |
| Empty descending speed | mm/s | 100 |
| Pressing speed | mm/s | 15-20 |
| Return speed | mm/s | 100 |
