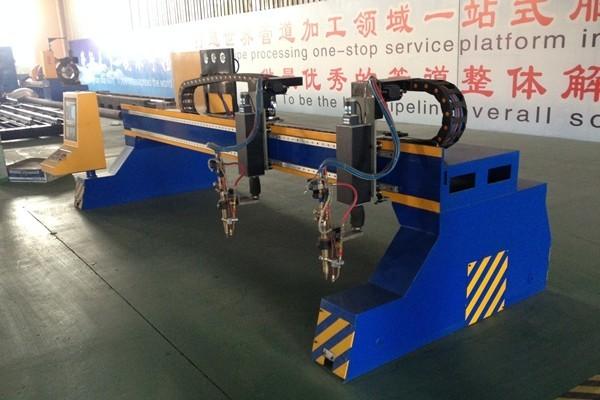

Carbon Steel CNC Cut Machine Multi Torches Heavy Duty 5KW 200mm
heavy duty table type multi-torches cutting machine carbon steel cutting machine
Features of the gantry plasma and flame cutting machine :
This machine is widely used in steel industry, cutting slats,it can increase productivity
* the back straight Host Configuration Group N torch for longitudinal straight cuts
* front of a group of transverse cutting torch transverse plate
* Optional overall torch lifting mechanism
*The plasma cutting system can be equipped with sprinklers
* Optional sector headed the company produced torch, cutting the number of probes can increase the economy and reduce the cutting width of the slats
Main configuration:
| Equipment size | According to customer needs matching |
| Driving method | stepper or servo |
| Software | starcam |
| gas flow | 4500l/h |
| working environment | ventilation ,no concussion |
| working pressure of compressed of compressed gas | above 7mpa |
| power | 5kw(not include plasma power) |
Our Advantages:
| 1.Quality and delivery assured: main frame structure is made in own working center. |
| 2.Thicker than others:2mm thicker of the frame than others‘ to improve the rigidity. |
| 3.Less deformation:hollow designing to decrease the deforamtion caused by the heat. |
| 4.Good rigidity:bilateral drive mode to keep the equipment move smoothly |
| 5.Longer serving time:special diameter-adjusted design to promote the serving time of up and down device. |
Parameters:
| Model | 3000mm | 4000mm | 5000mm | 6000mm | 7000mm | 8000mm |
| X axis effective working size | 2300mm | 3300mm | 4300mm | 5300mm | 6300mm | 7300mm |
| Y axis effective working size | It do as customer request | |||||
| Drive model | Bilateral rack and pinion drive | |||||
| Cutting thickness | Flame cutting thickness :6-200mm | |||||
| Plasma cutting thickness depends on the plasma power(you can tell me your cutting thickness , then i will recommend the most suitable plasma power) | ||||||
| Torch quantity | Multi plasma/flame /Multiple sets of straight | |||||
| Moving speed | 20-10000mm/min | |||||
| Cutting speed | 10-6000mm/min | |||||
| Table | It need customer do by yourself , because it can reduce the cost (we can provide the table design drawing to you free ) | |||||
