IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel
Handheld Fiber Laser Welding Machine 1000W,2000W
Handheld laser welder is quite fast and easier than traditional MIG & TIG Welding
Experienced MIG and TIG users benefit from the more rapid and flexible processing capabilities of fiber handheld laser welder
Up to 4time faster than TIG
Easy to learn and operate with highest process consistency
High quality welding of thick, thin and reflective metals without distortion, deformation, undercut or burn-through
Welding of dissimilar metal parts of different thicknesses
Dramatically low heat input and minimized heat affected zone
Minimal part setup and post-processing grinding or polishing
Increased productivity with no need for machining or straightening deformed parts.

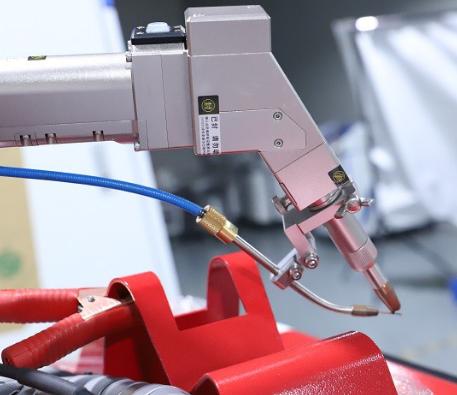

Double wobble weld head technologyIt can perfectly replace some traditional argon arc welding and electric welding in the welding of thin stainless steel plate, iron plate, aluminum plate and other metal materials; Double pendulum laser welding head can weld aluminum materials
|
|
|
Control system The control system come with a few kinds of mode,CW model, PWM model Arc model.The control screen directly digitally sets the parameters of the wire feeder;
|
|

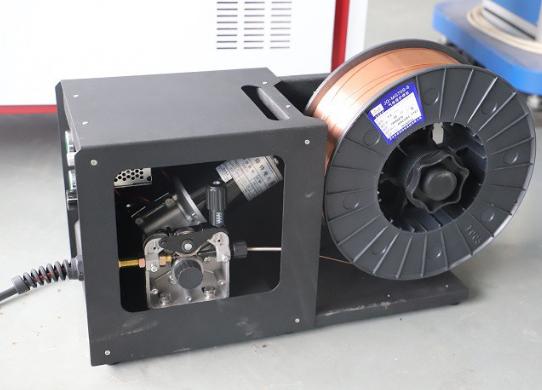

Wire eeder1000W and 1500W support 0.8mm 1.0mm 1.2mm wire, 2000W support 0.8mm to 1.6mm. Wire send and back speed adjust through touch panel. If two weld metal gap more than 0.2mm that need filler wire.
|
|
Weld methodFlat position weld
|
Parameters:
| Model number | SM-1000W,SM-1500W,SM-2000W |
| Laser power | 1000W 1500W 2000W |
| Laser type | fiber technology |
| Laser wavelength | 1080nm |
| Fiber laser source | IPG / Raycus /Max / JPT |
| Weld head | Wobble weld head |
| Weld width | 1- 5mm |
| Welding head weigt | 0.8kg |
| Control system | Hanwei brand |
| Weld mode system | CW/ PWM / Argon Arc |
| Weld speed | 0-120mm/s |
| Weld method | Flat / Horizontal /Vertical /Overhead |
| Cooling system | Water chiller |
| Language |
English, Korean, Japanese, Russian, French, Spanish, Israeli |
| Water cooler capacity | 18 litres |
| Type of water | Distilled water or pure water |
| Machine color | Red / blue /black |
| Wire feeder | option part |
| Wire feeder diameter | 0.8mm 1.0mm 1.2mm 1.6mm |
| Type of gas | Argon gas |
| Air pressure | 3 to 5 bar / 0.3 to 0.5 Mpa |
| Total power | 8kw / 9kw / 12 kw |
| Machine dimension | 1200x800x1480mm |
| Gross Weight | 280kg |
| Consumable part |
Protection lens ,Brass nozzle |
