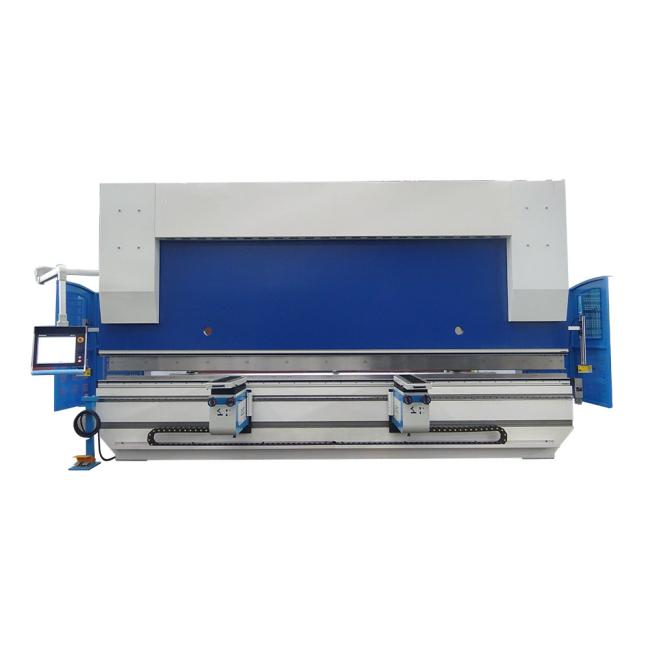

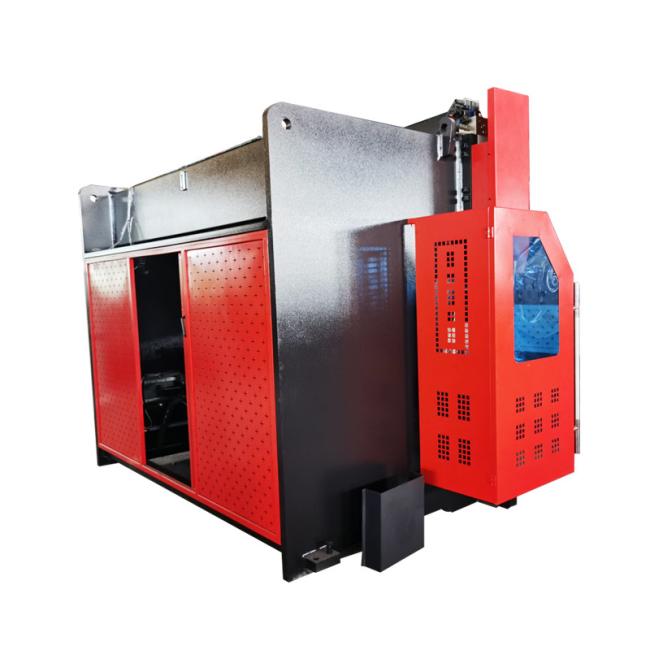

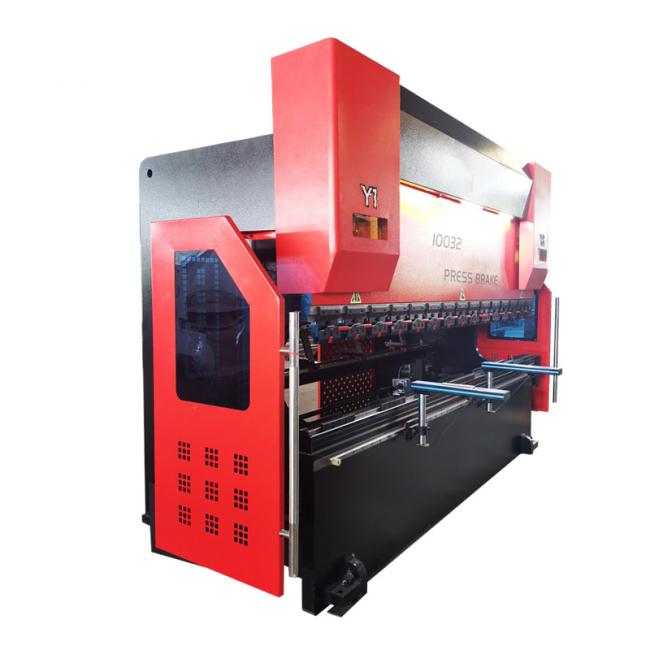

Aluminum Iron CNC Hydraulic Press Brake Bending Machine Plate 160T 3200 DA66T

Performance profile:
1. Integral welding processing structure
2. International famous brand electro-hydraulic servo valve and grating ruler form closed loop control mode
3. High slider position feedback accuracy, accurate and smooth operation, good synchronization performance, bending accuracy, high slider repeat positioning accuracy.
4. Rear baffle material can be according to customer demand to adopt more complete function of the rear baffle material shaft of the rear baffle material mechanism.
5. The hydraulic system adopts integrated control system, which reduces the installation of pipelines, eliminates oil leakage, ensures the working stability of machine tools, and makes the appearance scientific and beautiful.
6. Hydraulic deflection automatic compensation mechanism, eliminate the impact of slider deformation on the quality of the workpiece, CNC system automatically adjust the amount of compensation, easy and accurate operation.

7. CNC system using the Netherlands DELEM, Italy ESA, Switzerland CYBELEC and other well-known brands dedicated CNC bending machine system.

Standard Equipments & Options

1. CNC Axis Control : 3+1 (Y1-Y2-X+V ) 4+1 (Y1 -Y2- X-R + V ) & 6+1 (Y1-Y2-X-R-Z1-Z2+V)
8+1 ( Y1-Y2-X1-X2-R1-R2+V)
2. Hydraulic Valve: BOSH-Rexroth
3. Oil Pump: BOSH-Rexroth
4. Oil Cylinder: CHINA famous brand
5. Main Motor: Estun Servo Motor & Siemens Normal Motor;
6. Linear Encoder: Fagor & Heidenhain
7.Crowning: Motorized Crowning & Hydraulic Cylinders & Manual
8. Pedal Switch: CHINA famou brand
9. Electrics: Schneider
10. Clamps: WILA Hydraulic Clamping & KMechanical fast Clamp
11. Ball Screw Rod: TAIWAN HIWIN
12. Linear Guide: TAIWAN HIWIN
13. Front Support: Support with Dual Linear Guide & Following Supports Systems
14. Tooling: WILA Tooling & China Famous Brand tooling & Customized

15. Backgauge Motor: Estun Servo Motor
16. Finger Amount: 2/3/4/6 & Customized
17. Front | Back Safe Protection: DSP Laser & Light Curtain Protection
18. Metal Protection: Rear & Back
19. Controller: Delem DA69T & DA66T & DA56S & DA52S & ESA -S540 & Customized
