Closed Type CNC Turret Punching Machine Sheet Metal processing

Name: Closed Type CNC Turret Punching Machine Sheet Metal processing
Brand: Anhui YUANJING Machine Company

Price Negotiable

Price: 30000-50000USD

MOQ: 1 set

Delivery Time: 25 days

Brand: YUAN

Product Description

CNC Turret Punching Machine/Automatic Hole Punching Machine/CNC Punch Hydraulic Press Price

The new generation of YUAN turret punch is a low energy, high efficiency turret punch with low environmental and maintenance costs. The YUAN can be configured in 22 or 33 ton options. The YUAN was designed with a thick turret to ensure longevity of the machine and its tools and to minimize tool deflection.YUAN performs full punches, hovering, marking and forming operations.The SF model can be upgraded with our Ultra Package which can decrease part processing times by up to 40%.

Feature:

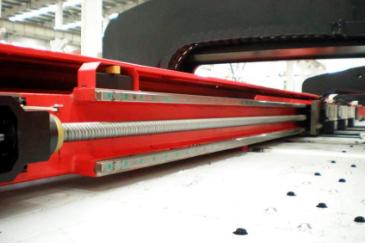

Automatic Tool and Linear Components Lubrication System
Pneumatic Ball Transfer and Brush Table for ease of loading/unloading
Vacuum Assist System for slug removal

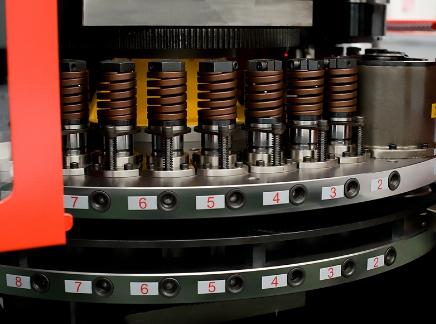

32 Stations 2 Auto indexing stations
One Mirror-Type Safety System to guard entire work envelope
Man-Sensors on moving tables
Sheet Jam Protectors to detect warped material
Sheet-gripper sensors to detect loose material

Standard with:

⭕1250x2500mm table, ⭕with 32sets punching moulds,
⭕Fanuc 0i Mate Control,
⭕600spm

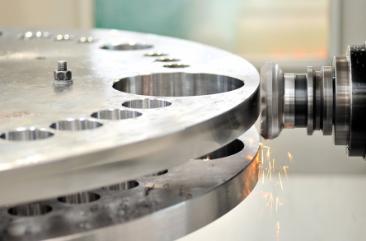

The turret is processed by special device to ensure the coaxiality of the upper and lower turret and expand the service life of tooling;

Hard brush and ball mixed worktable reduces the noise and vibration during running and also protects the sheet surface.

Parameters:

Item	unit	P-30T	P-50T
Punching Capacity	Ton	30	50
X Traverse Length	mm	2500±10	2500±10
Y Traverse Length	mm	1250±10	2500±10
Max sheet size	mm	1250*5000	1250*5000
Max sheet Thickness	mm	6.35	8.35
Max sheet weight	kg	110	160
X Axis Traverse speed	m/min	120	100
Y Axis Traverse speed	m/min	105	80
Max Traverse speed	m/min	128	105
Punching speed at 25mm Pitch	Hist/min	450	380
Nibbling speed	Hist/min	1200	1050
Tools Type		Thick Turret
Max Punching Diameter	mm	88.9
Number of Tool Stations		32/42/52
Number of Auto Index Stations	Pcs(type)	4(2B+2C)/3(2B+C)/2(B+C)
Turret Rotating Speed	rpm	33	33
Auto Index Rotationg Speed	rpm	100	100
Ram Stroke Distance	mm	0~31	0~31
Working Tables Size		Brush+Supporting Ball Set		3
Number of Sheet Clamps	pcs	3	3
Air supply	NL/min	250	250
Air Pressure		6	6
Size of Control cabinet		13507002185
CNC Controller		Fanuc Oi-PD
Number of Controllable Axes		4
Ram Memory		512
Serial Interface		PS232/RJ45/PCMCIA
Punching Precision		±0.1
Machine Dimension(LWH)		594052202420	594052202420
Net weight(approx.)		13500	15800
