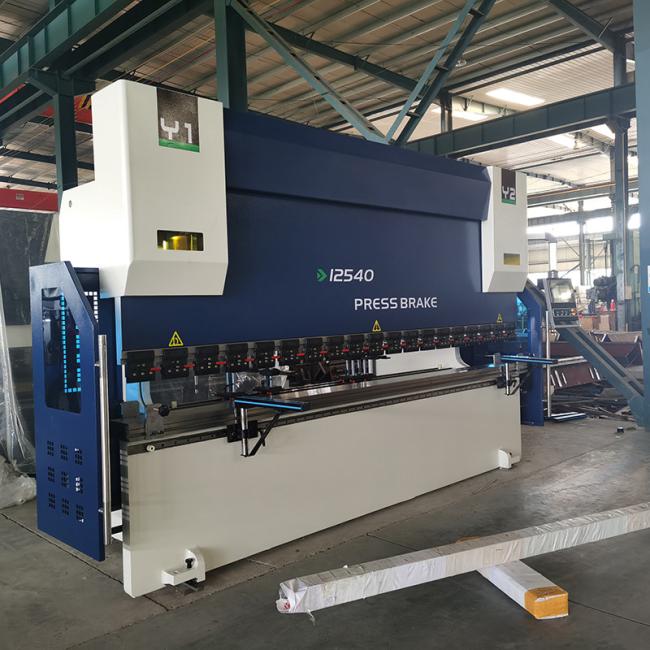

DA52 Electric Sheet Metal Bending Machine 125T 4000mm

Electric sheet metal bending machine manufacturer electric folder forsteel plate folding

Main features:
1. Holland DELEM DA52/56S CNC system
2.Germany Rexroth has the electro-hydraulic servo driven pump control system
3.Synchronous position on both sides with RSF grating detection •Back gauge with high performance servo motor and ball screw •The WILA mechanical CNC system control under the table the deflection compensation device
4.With a left and a right protective door and rear fender •include standard front support with mobile linear guide track

The machine type and axis of control(Yl -Y2-X-R-W)
1. Professional solutions to meet a variety of applications
2. High-quality components to ensure high reliability
3. Excellent cost performance, fast cost recovery
4. Energy conservasion, a revolutionary breakthrough

Innovative features of the hybrid drive system:
1. Pump control techrology to replace conventional VRLA technology, eliminating throttling losses, no overflow losses, significant energy saving
2. Servo motor in a short time can significantly overload, the actual installed power is only 50% of the theoretical power installation
3. Tank volume decreases by 75% to reduce the usage amount of hydraulic oil
4. Low thermal equilibrium temperature without cooling devices, hydraulic components kfe extension
5. Free, fast, the packing, the r>ex( state return decreased noise, improve the worrvg environment
6. Servo motor brake faster than ihe average, an emergency pressure, flow rate cut soon
7. Reduce oil particles from sensitive NS7 grade level dropped NS9

	DA53T Shortcut key touch navigation 10.1 "High-resolution true color TFT display Up to 4 axis control Deflection compensation control With mold/material/product library Support servo or inverter control The advanced Y-axis control algorithm can control both closed-loop and open-loop valves. Can also control open loop valves ● Backgauge can choose servo control, frequency conversion control, AC control ● Network dual-machine linkage (optional) ● USB peripheral interface ● Profile-53TL offline programming software.
	DA52S 1.Quick, one page programming 2.Hotkey navigation 3.7" widescreen colour TFT 4.Up to 4 axes (Y1, Y2, and 2 auxiliary axes) 5.Workbench deflection compensation control 6.Tool/material/product library USB,peripheral interfacing 7.Advanced Y-axis control algorithms for closed loop as well as open loop valves 8.Panel based controller with optional housing
	2D graphical touch screen programming mode 17" high resolution colour TFT Full Windows application suite Delem Modusys compatibility (module scalability and adaptivity) USB, peripheral interfacing User specific application support within the control's multitasking environment Sensor bending & correction interface Profile-TL offline software

Back Gauge Option: 1 axis to 6 axis back gauge according to your need X1+X2 X1+X2,+R X1+X2+R+Z1+Z2 X1+X2+R+Z1+Z2 X1+X2+R+Z1+Z2+X Prime X1+X2+R1+R2+Z1+Z2
