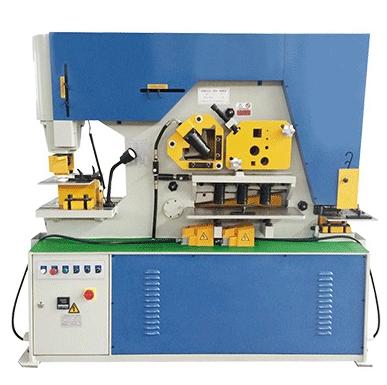

Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
Price:
5000-6000USD
MOQ:
1 set
Delivery Time:
25 days
Brand:
YUAN
Product Description
factory price Q35Y series steel Iron worker,hydraulic steel punch and shearing machine,steel punching and cutting machine
 |
The double cylinder series are in the YUAN tradition of well engineered ironworkers built for high power,quality,and reliability.These ironworkers have two control foot pedals and separate operations can be safety perfored simultaneously.The low pressure setting for tool change provides maximum operation safety.The long punching cylinder strokes and deep stroke enable punching base with the "T-slot" mounting provides a solid base for securing the punching tooling,as well as a wide rang of operation and cusion designed tooling. |
Main functions
More efficient stroke-control functions of piston rod.
Central lubricating system
Motor-driven rear stopper
Lighting devices for work
5 independent work-positions: punch pin and die (standard punching dies),cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting blade.
| Technical Specification | Q35Y-12 | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 | |||
| Punching Pressure(T) | 35T | 60T | 90T | 120T | 160T | 200T | 250T | |||
| Depth of throat(mm) | 115 | 300 | 355 | 400 | 600 | 600s | 600 | |||
| Standard Die | Punching | Dia.X Max.Thickness | mm | 25X12 | 25X16 | 30X20 | 35X25 | 38X26 | 40X35 | 40X40 |
| Dia.X Thickness | mm | 25X12 | 25X16 | 30X20 | 35X25 | 38X26 | 40X35 | 40X40 | ||
| Max.Diameter | mm | 12 | 25 | 30 | 35 | 38 | 40 | 40 | ||
| Travel | mm | 35 | 80 | 80 | 80 | 80 | 80 | 80 | ||
| Working Travel | mm | X18 | X20 | X25 | X25 | X30 | X35 | X40 | ||
| Throat Depth | mm | 115 | 300 | 355 | 400 | 600 | 600 | 600 | ||
| Steel Bar | Round | mm | 35 | 45 | 50 | 60 | 65 | 70 | 80 | |
| Square | mm | 30X30 | 40X40 | 50X50 | 50X50 | 55X55 | 60X60 | 65X65 | ||
| Steel Angle | Angle Size | mm | 86X86X8 | 125X125X12 | 140X140X12 | 160X1160X14 | 180X180X16 | 200X200X18 | 200X200X20 | |
| Cutting Angle | ° | 50X50X5 | 50X50X5 | 50X50X5 | 60X60X6 | 60X60X6 | 100X100X10 | 120X120X10 | ||
| Angle Section | mm | 5.5 | 5.5 | 6.5 | 9 | 11.5 | 12 | 12 | ||
| Slotting | Thickness | mm | 100 | 126 | 160 | 210 | 280 | 300 | 320 | |
| Width | mm | 30 | 53 | 60 | 75 | 86 | 89 | 92 | ||
| Optional Die | U-I Shaped Profile | Size | mm | 100X100X8 | 125X125X12 | 140X140X12 | 160X160X14 | 180X180X16 | 160X160X14 | 180X180X16 |
| T-shaped Profile | Size | mm | 40X40X6 | 60X60X8 | 70X70X10 | 80X80X10 | 80X80X10 | 80X80X10 | 80X80X10 | |
| I-Beam | Size | mm | 40X60X4 | 126X74X5 | 160X86X6 | 200X102X9 | 280X124X10.5 | 300X126X11 | 320X130X10 | |
| V-Bending | Length | mm | 600 | 600 | 600 | 600 | 600 | 600 | 600 | |
| V-Bending | Thickness | mm | 4 | 10 | 15 | 20 | 26 | 33 | 40 | |
Configuration:
| NO | Item | Manufactuer |
| 1 | Electrics | Schneider-France |
| 2 | Main Motor | Siemens-germany |
| 3 | Oil Pump | Sunny-USA |
| 4 | Valve block | Rexroth-Germany |
| 5 | Pedal switch | KACON-South Korea |
| 6 | Wind-cooler for oil | China |
| 7 | Sealing Ring | Parker-USA |
| 8 | Oil pipe connector | Pressure hose-Germany |
| 9 | Safety guard | YUAN |
