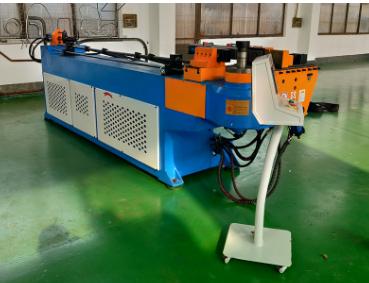

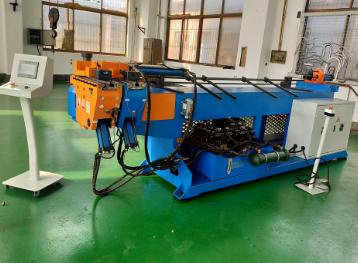

PLC Mandrel Manual Hydraulic Pipe Bender 3.5 Inches Capacity 89Mm

Manual Hydraulic Pipe Bender 3.5 Inches Capacity Mandrel Rebar Bender

Characteristics
1, the machine adopts PLC control, conversational operation, simple programmable steps.
2, the freedom of choice, manual, semiautomatic cycle, function of automatic cycle.
3, mobile pedal switch, with automatic startup, emergency stop, stop to three kinds of function, high safety.
4, it has a large capacity and cooling cycle system so that the machine could run more stable.
5, head tube bending, delicate design, provide maximum bending pipe space.
6, it is undersized, simple and convenient to replace elastic production.
7, in the machining process of the screen mobile controller tube bending machining is now worth, still can set single-step action,half cycle, the cycle.
8, with automatic detection errors and faults, when any abnormal function of action or any dangerous when there is a machine.

	PLC Controller Easy operating and working fast
Electrics Schneider, France brand
	Mortor Yuanbang, Taiwan brand. Bending is drived by hydraulic motor, which can keeps high efficiency and accurate bending angle.
Clamping Hydraulic Oil Tube Kejia, China famous brand.
	Water Cooling System

Parameters:

type	bending ability	bending radius	bending angle	power of motor	working pressure
38NC	Φ38×2.0	200	185°	4kw	12MPa
50NC	Φ50×2.5	250	185°	5.5kw	12MPa
63NC	Φ63×4.0	300	185°	5.5kw	12MPa
75NC	Φ75×6.0	350	185°	7.5kw	12MPa
100NC	Φ100×4.5	400	185°	11kw	12MPa
120NC	Φ120×5.0	500	185°	15kw	12MPa
159NC	Φ159×10	550	185°	22kw	14MPa
168NC	Φ168×14	700	185°	22kw	14MPa
219NC	Φ219×18	850	185°	30kw	14MPa



The Steps of Pipe Bending Machine

These Shapes Can Be Bent

Bend tooling (Include: bend die, mandrel, pressure die, clamping die, wiper die)
