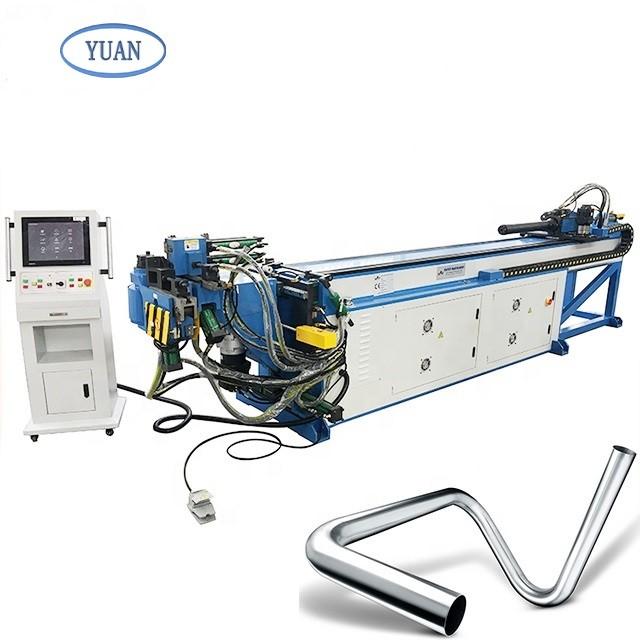

CNC NC Pipe Tube Automatic Hydraulic Electric Bender Bending Machine
SB－CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinatesofmotions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending springback compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection.
Pipe bending(C axis), pipe rotating (B axis), and pipe feeding(Y axis) are all driven by servomotor.
Main Technical Parameter
| Name | Unit | Parameter |
| Max. Bending Capacity | mm | ￠38*2 |
| Bending Radius Range | mm | 20-200 |
| Max. Bending Angle | ° | 190° |
| Bending Speed | °/sec | 180 |
| Turning Speed | °/sec | 200 |
| Feeding Speed | mm/sec | 1000 |
| Bending Precision | ° | ±0.10 |
| Turning Precision | ° | ±0.10 |
| Feeding Precision | mm | ±0.10 |
| Bending Servomotor Power | KW | 3.5 |
| Turning Servomotor Power | kW | 0.4 |
| Feeding Servomotor Power | kW | 0.75 |
| Mandrel length | mm | 3200 |
| L*W*H (Packaging Dimension) | mm | 4200*1100*1500 |
| Weight | T | 2.0 |
Configuration
| Name | Manufacturer |
| Hydraulic Motor | Suzhou Runmali |
| Hydraulic Pump | Wuxi Tuoli |
| Hydraulic Valve | Yuci Yuken |
| Oil way Board | Suzhou Boguan |
| Cylinder | Shanghai Qifan |
| Oil tube | Suzhou Kejia |
| Touch screen | Taiwan Weinview(Imported) |
| PLC | Japan Mitsubishi(Imported) |
| Servo Motor | Japan Mitsubishi(Imported) |
| Angle controller | Japan Nemicon(Imported) |
| Switch power | Wenzhou Changxing |
| Contactor | German SCHNEIDER(Imported) |
| Other Electric Parts |
German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
|
