Auto Single-Head Bending Machine -SB 18
Price:
5000-7000USD
MOQ:
1 set
Delivery Time:
40 days
Brand:
YUAN
Product Description

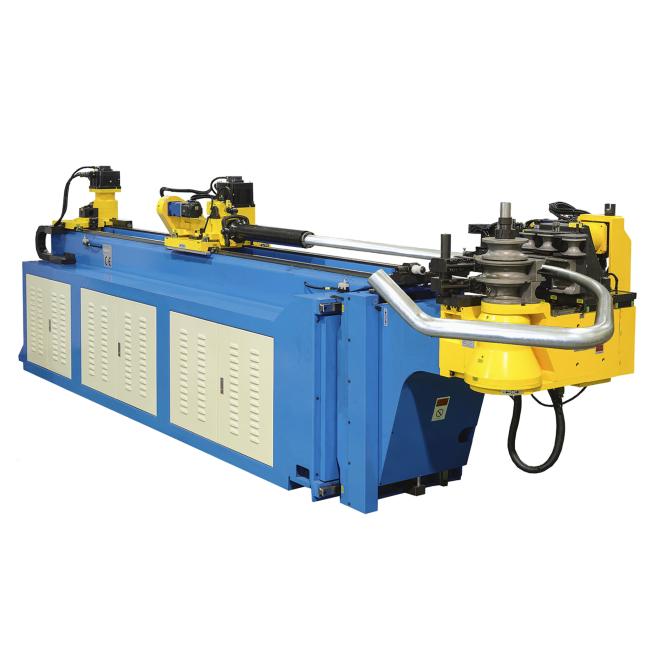

Auto Single-Head Bending Machine
Auto Single-Head Bending Machine
Model SB 18/28/38/42/50/63/76/89 NCB Series:
Characteristics of Pipe Bending Machine:It adopts imported special controlling system. The
action of the machine is stable. It has mode of manual and auto, the operator can change the
Programs.This series is suitable for two-dimensional bending at high speed and in mass
production.
| ain Technical Parameter | Unit | 18NCB | 28NCB | 38NCB | 42NCB | 50NCB | 63NCB | 76NCB | 89NCB |
| Max. Bending Capacity | mm | ￠18×2 | ￠28×2 | ￠38×2 | ￠42×3 | ￠50×2 | ￠63×4 | ￠76×5 | ￠89×10 |
| Bending Radius Region | mm | 20-150 | 20-180 | 20-200 | 20-250 | 20-250 | 25-350 | 30-350 | 40-400 |
| Bending Angle Region | Degree | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 |
| Effective Length Over Mandrel | mm | 2000 | 2000 | 2000 | 2200 | 2200 | 2500 | 3200 | 4000 |
| Oil Pressure System Motor | kw | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 |
| Max. Pressure | kg/cm | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Machine Dimension | mm | 2300×550×1300 | 2500×650×1300 | 2500×700×1300 | 3000×800×1300 | 3000×800×1300 | 4200×1200×1350 | 5000×1200×1350 | 5300×1350×1200 |
| Machine Weight | kg | 1000 | 1300 | 1500 | 1800 | 1800 | 2500 | 3000 | 4000 |
