BE-CU C17200 Beryllium Copper Strips 200 - 300mm Wide For Relay Contact Springs
BE-CU C17200 Beryllium Copper Strips 200~300mm Wide Coil For Relay Contact Springs
Product Normal Description:
Product Name: Beryllium copper strips
Grade: BE-CU C17200
Standard: ASTM B194, SAE J463, J461
Thickness: 0.5~0.2mm
Width: 200~300mm
State: TD04(Hard)
Product Brand: CUBERYLLIUM®
CUBERYLLIUM® is specialized in producing beryllium copper alloys, including beryllium copper strips/ tapes, beryllium copper rods/bars, beryllium copper tubes, beryllium copper wires, beryllium copper plates, beryllium copper billets, with high quality performance metals for electrical industry fasteners and industrial.
The grades could be C17200. C17300, C17500, C17510.
C17200(CU-BE Alloy 25) is manufactured to provide a combination of high strength and hardness properties coupled with superior thermal properties. This range of properties makes C17200 the premier material for copper alloy molds and a wide range of other applications from oil and gas to aerospace.
Chemical Composition of BE-CU C17200 Beryllium Copper Alloy:
| Weight % | Be | Ni+Co | Ni+Co+Fe | Pb | Cu | Other |
|---|---|---|---|---|---|---|
| minimum | 1.80 | 0.20 | — | — | Bal | — |
| maximum | 2.00 | — | 0.60 | 0.02 | 0.5 |
Typical Physical Properties of BE-CU C17200 Beryllium Copper Alloy:
| Density (g/cm3): | 8.36 |
| Density before age hardening (g/cm3): | 8.25 |
| Elastic Modulus (kg/mm2 (103)): | 13.4 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
| Melting Range (°C): | 870-980 |
Temper Designations of BE-CU C17200 Beryllium Copper Strips:
| Cuberyllium Designation | ASTM | Mechanical and Electrical Properties of Copper Beryllium Strip | ||||||
| Designation | Description | Tensile Strength (Mpa) |
Yield Strength 0.2% offset | Elongation Percent | HARDNESS (HV) |
HARDNESS Rockwell B or C Scale |
Electrical Conductivity (% IACS) |
|
| H-Solution Heat Treated and Cold Worked | TD04 | Hard | 680~830 | 620~800 | 2~18 | 220~240 | 96~102HRB | 15～19 |
Noted:
Specifications: AMS-QQ-C-533, ASTM-B194

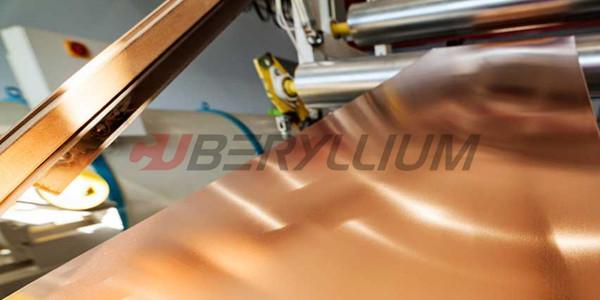

Product Photos:
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
