C17200 ASTM B194 Cuberyllium Copper Plate 6mm X 25mm X 800mm
Material Requirement C17200 ASTM B194 Cuberyllium Copper Plate 6mm*25mm*800mm
Product Normal Description:
Product Name: Cuberyllium copper plate
Grade: C17200
Standard: ASTM B194
Product Size: 6mm*25mm*800mm
State: A(TB00), H(TD04), AT(TF00), HT(TH04)
Typical Application: For electrical application
Product Brand: CUBERYLLIUM®
Chemical Composition of C17200 ASTM B194 Cuberyllium Copper Alloy:
Product Grade: CUBERYLLIUM ®-172(UNS. C17200)
Beryllium(Be): 1.80-2.00%
Cobalt(Co) + Nickel(Ni): 0.20% Min
Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max
Lead: 0.02% Max
Copper(Cu): Balance
Note: Copper plus additions equal 99.5% Minimum.
Typical Physical Properties of C17200 ASTM B194 Cuberyllium Copper Alloy:
| Density (g/cm3): | 8.36 |
| Density before age hardening (g/cm3): | 8.25 |
| Elastic Modulus (kg/mm2 (103)): | 13.4 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
| Melting Range (°C): | 870-980 |
Temper Designations of C17200 ASTM B194 Cuberyllium Copper Plate:
| Mechanical and Electrical Properties of C17200 Sheet/Plate | |||||||
| CUBERYLLIUM | ASTM | Heat Treatment |
Thickness (mm) |
Tensile Strength (Mpa) |
Elongation Percent |
HARDNESS Rockwell B or C Scale |
Electrical Conductivity (% IACS) |
| Designation | Designation | ||||||
| A | TB00 | All Size | 400~580 | 20~60 | B45-85 | 15～19 | |
| H | TD04 | ＜10 | 600~880 | 8~20 | B91-103 | 15～19 | |
| 10~25 | 600~850 | 8~20 | B90-102 | 15 ~ 19 | |||
| 25~50 | 580~820 | 8~20 | B88-102 | 15 ~19 | |||
| ＞50 | 580~820 | 8~20 | B88-102 | 15 ~19 | |||
| AT | TF00 | 3 hr 315℃ |
All Size | 1120~1358 | 3~10 | C36-41 | 22 ~ 28 |
| HT | TH04 | 2 hr 315℃ | ＜10 | 1200~1450 | 1~5 | C38-45 | 22 ~ 28 |
| 10~25 | 1200~1500 | 1~5 | C38-44 | 22 ~ 28 | |||
| 25~50 | 1200~1450 | 2~5 | C37-43 | 22 ~ 28 | |||
| ＞50 | 1100~1350 | 2~5 | C36-42 | 22 ~ 28 | |||
Applications of C17200 ASTM B194 Cuberyllium Copper Alloy:
| ELECTRICAL: | ||
| Electrical Switch / Relay Blades | Fuse Clips | Switch Parts |
| Relay Parts | Connectors | Spring Connectors |
| Current-Carrying | Contact Bridges | Belleville Washers |
| Navigational Instruments | Clips | |
| FASTENERS: | ||
| Washers | Fasteners | Lock Washers |
| Retaining Rings | Roll Pins | Screws |
| Bolts | ||
| INDUSTRIAL: | ||
| Pumps | Springs | Electrochemical |
| Shafts | Non-Sparking Safety Tools | Flexible Metal Hose |
| Housings for Instruments | Bearings | Bushings |
| Valve Seats | Valve Stems | Diaphragms |
| Springs | Welding Equipment | Rolling Mill Parts |
| Spline Shafts | Pump Parts | Valves |
| Bourdon Tubes | Wear Plates on Heavy Equipment | Bellows |

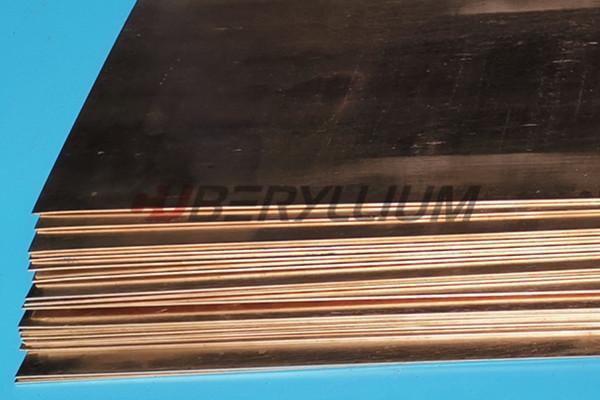

Product Photos:
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
