High Intensity Copper Chromium Nickel Silicon Alloys For Resistance Welding Tips
High intensity Copper Chromium Nickel Silicon Alloys For Resistance Welding Tips
Typical Applications:
| Resistance Welding Tips, Wheels and Fixtures |
| Stud Welding Collets and Tips |
| Sprue Bushing |
| Blow Pins |
| Pinch Offs |
| Plunger Tips for Metal Die Casting Machines |
| Hot runner Systems for Injection Molds |
| Cavities for Injection Molds |
| Welding Dies for Wire and Flash |
| Mold Cavities for Bold Molds |
| Cores, Core and Ejector Pins for Injection Molds |
| Heat Sink Inserts in Steel Plastic Molds |
Physical Properties:
| Specific Gravity: | 8.84 |
| Melting Point: | 1074℃ |
| Coefficient of Thermal Expansion per °C: | 16.2 x 10-6 (20-300℃) |
| Electrical Conductivity (% IACS): | 38 (22 Ms/m) |
| Thermal Conductivity (W/mk): | 200 |
| Modulus of Elasticity (103 MPA): | 130 |
Product Description:
Name: High intensity Copper Chromium Nickel Silicon Alloys
Brand: CUBERYLLIUM
Diameters: 1mm~15mm
Length: 3000mm
Place of origin: China
Grade: CuCrNi2Si, UNS C18000, RWMA Class 3, CDA180, DIN 2.0855, CW111C to EN
Lead time: If the quantity of the goods is 1~30 kg, the goods are generally delivered within 15 days after the order is confirmed.
If more than 30kg, it can be determined according to the actual negotiation.
Packaging&Delivering:
C18000 Chromium Nickel Silicon Alloys rod is packed with waterproof paper or weave bag,
into pallets or wooden case. Special packaging requirements can also be acceptable.
Chemical Compositions:
| UNS/DIN | DIN/EN | International specification | Chemical composition | Avaliable forms |
| C15000 | CuZr | 2.1580 CW120C |
Zr:0.15-0.20% Cu:balance Cu+Zr:99.5%min |
bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire. |
| C18000 | CuNi2CrSi | 2.0855 CW111C |
Cr:0.10-0.80% Ni:1.80-3.0% Si:0.40-0.8% Cu:balance Cu+Cr+Ni+Si:99.5%min |
bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire. |
| C18150 | CuCr1Zr |
2.196 CW106C |
Cr:0.50-1.50% Zr:0.05-0.25% Cu:balance Cu+Cr+Zr:99.5%min |
bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire. |
| C18200 | CuCr | 2.1291 CW105C |
Cr:0.60-0.20% Cu:balance Cu+Cr:99.5%min |
bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire. |
More Products:
C18150 Rods/Bars/Plates/Sheets: UNS.C18150, SAE J461,463；RWMA Class 2, ISO5182-1991
European Standards: CuCr1Zr, DIN 17666 2.1293, CW106C to EN
C18200 Rods/Bars/Plates/Sheets: UNS.C18200, RWMA Class 2, CDA18200, ISO5182-1991

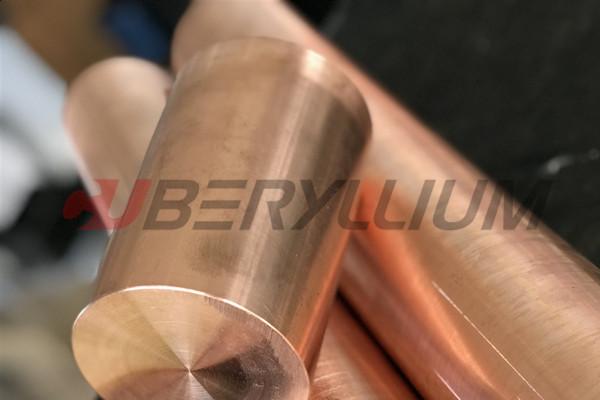

Product Photo:
FAQ:
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. What about the lead time?
A3. Usually 7-15 days after confirm the order.
