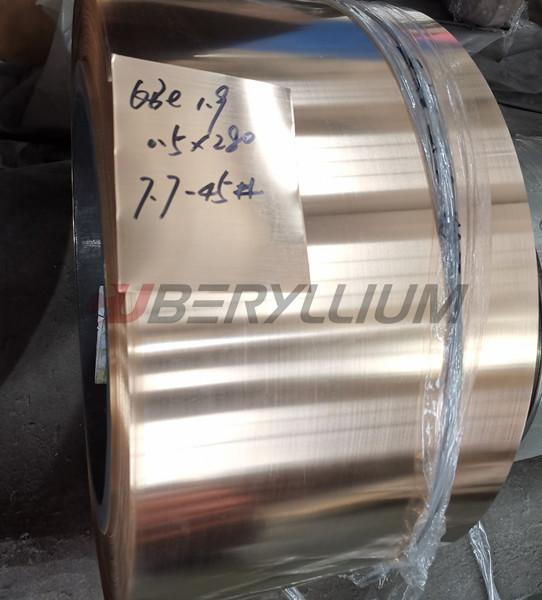

Qbe1.9 Copper Strip Thickness 0.1mm 0.12mm 0.15mm 0.2mm For Electrical Industry
Qbe1.9 Copper Strip With Thickness 0.1mm 0.12mm 0.15mm 0.2mm For Electrical Industry
| Qbe1.9 Copper Strip With Thickness 0.1mm 0.12mm 0.15mm 0.2mm | |
| Product Type | Is Alloy |
| Material | Copper |
| Grade | Qbe1.9 |
| Product Shape | Strip/Tape |
| Product Thickness | 0.1mm 0.12mm 0.15mm 0.2mm |
| Temper | Soft, Hard, Ageing(Soft), Ageing(Hard) |
| Available Width | 8mm~300mm |
| Chemical Composition of Qbe1.9 Copper Alloy: | |||||||
| (% Max., Unless shown as range or Min.) | |||||||
| Copper Cu | Aluminum Al | Beryllium Be | Iron Fe | Nickel Ni | Silicon Si | Titanium Ti | |
| Min./Max. | Rem. | 0.15 | 1.87-2.1 | 0.15 | 0.2-0.5 | 0.15 | 0.1-0.25 |
Typical Physical Properties of Qbe1.9Ti Beryllium Copper Alloy:
Density (g/cm3): 8.25
Elastic Modulus(Gpa): 130
Electrical Conductivity: 22-28% IACS
Thermal Expansion Coefficient(m/m℃): 17.5x10-6
Thermal Conductivity(25℃): 105W/m℃
Melting Point (°C): 870
Standard Tolerance of Qbe1.9Ti Beryllium Copper Strip:
| Tolerance Sheet | ||
| (MM) | ||
| Strip Thickness |
CuBeryllium® Standard Tolerance |
|
| over | incl. | minus |
| 0.03 | 0.08 | 0.003 |
| 0.08 | 0.1 | 0.004 |
| 0.1 | 0.15 | 0.005 |
| 0.15 | 0.2 | 0.006 |
| 0.2 | 0.25 | 0.007 |
| 0.25 | 0.4 | 0.008 |
| 0.4 | 0.55 | 0.009 |
| 0.55 | 0.7 | 0.01 |
| 0.7 | 0.9 | 0.015 |
| 0.9 | 1.5 | 0.025 |
| Note: Tolerances apply to rolled and mill hardened strip. | ||
New information plz contact to sales@cuberyllium.com.
CUBERYLLIUM® Company Profile:
CUBERYLLIUM® is one of the eminent manufacturer and exporter of high Grade Beryllium Copper Alloys, including beryllium copper strips, beryllium copper rods, beryllium copper bars, beryllium copper plates, beryllium copper sheet, beryllium copper wires, beryllium copper tubes and so no.
CUBERYLLIUM® offers a commendable range of beryllium copper alloys with competitive price. We offer beryllium copper alloys that are fabricated by our adroit professionals using supreme class raw material as per the set industry norms.
With holding years of experience in manufacturing, we continue to offer robust quality of Beryllium Copper Alloys with very reasonable prices across all over the world.
Introduction of Qbe1.9 Copper Alloys:
CUBERYLLIUM ®-Qbe1.9 also named Cube1.9Ti Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. Qbe1.9 alloy contains appr.Ti 0.1~0.25% of Ti,and1.85~2.1% of Be achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition. Qbe1.9also exhibits exceptional resistance to stress relaxation at elevated temperatures.
Package of Qbe1.9 Copper Strip:
Special Features:
Each bundle covered with plastic for protection against extreme weather.
End of Beryllium Copper Bar and Strip protected by plastic caps.
Bundles strapped with plastic strips.
FAQ:
Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2: We are the only one who melting by Vacuum semi-Continuous Furnace.
3: Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
