Industry Product Alloy C17200 Beryllium Copper Strips / Tapes For Spring Contact
Industry Prodcut Alloy C17200 Beryllium Copper Strips/Tapes For Spring Contact
Product Normal Description:
| Name | Industry Product Alloy |
| Grade | C17200 |
| End Product Form | Strip/tape |
| Size | 0.254mm x 200mm |
| Application | For Spring Contact |
| Temper | 1/2H |
| Product Brand | CUBERYLLIUM® |
Alloy C17200 Beryllium Copper Chemical Composition
(% Max., unless shown as range or Min.)
| Chemical Name | % by Weight |
| Be | 1.00-2.00 |
| Co+Ni | 0.20% Min |
| Co+Ni+Fe | 0.60% Max |
| Pb | 0.02% Max |
| Cu | Rem. |
| Note: Copper plus additions equal 99.5% Minimum. | |
Typical Physical Properties of Alloy C17200 Beryllium Copper
| Mechanical Properties | |||
| Hardness | Brinell | 255-297 | RC 25-32 |
| Tensile Strength | KSI | 130 | |
| Yield Strength | KSI | 110 | |
| Elongation | % | 7 | |
| Elastic Modules | KSI | 18500 |
Advantages of CUBERYLLIUM:
- Superior quality
- Proactive customer service
- Innovative solutions
- Extremely fast turn around
- Technical Support
- Together we can achieve substantial amount of productivity for our applications, we can also develop and arrange mechanical properties according to specific requirements.
Introduction & Application of Alloy C17200 Beryllium Copper:
| Introduction | AMS 4533 Copper C17200 ASTM B196, AMS 4533, RWMA CLASS IV Most commonly utilized beryllium copper and is notable for exhibiting the highest strength and hardness compared to commercial copper alloys. Its strength and hardness is similar to that of steel. AMS4533 ultimate tensile and Rockwell hardness properties in a peak aged condition are in the 200 ksi range and RC 45 respectively (electrical conductivity 22% IACS minimum). |
| Application | Electrical & Electronic Conductors Superconductor matrixes Vacuum tubes Glass-to-metal seals Power Substations Connectors Switches Bus Systems |

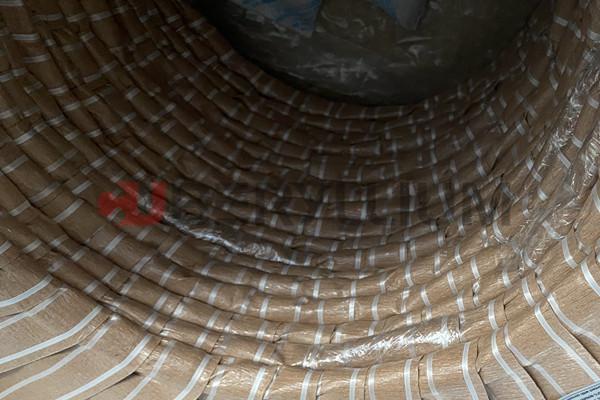

Packing Details:
Special Features:
Each bundle covered with plastic for protection against extreme weather.
End of Beryllium Copper Bar and Strip protected by plastic caps.
Bundles strapped with plastic strips.
More Products
More range of copper and copper alloys, in full series of shapes: Sheet, Bar, Tubes, Strips and Wire list as below:
C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/751 (CuNi2Be, 2.0850, Alloy3)
Any request of beryllium copper alloy products, plz kindly contact with us: sales@cuberyllium.com
