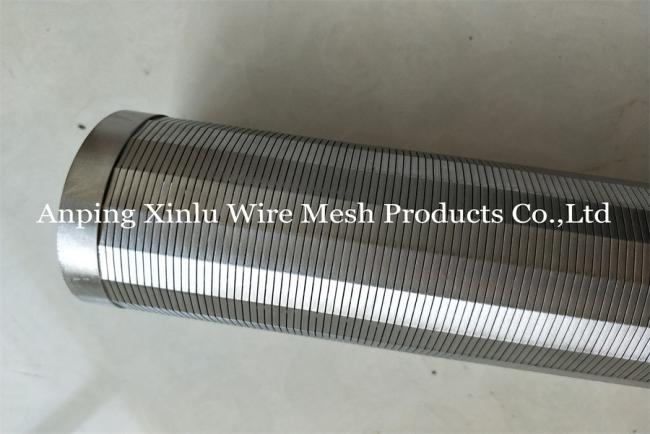

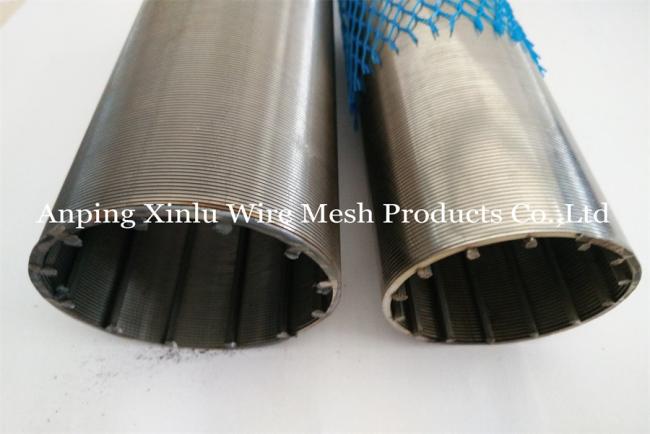

Electrolytic Polishing Stainless Steel 304 316L Johnson Filter Tube for Water Well Filtration
Electrolytic Polishing Stainless Steel 304 316L Johnson Filter Tube for Water Well Filtration
Product Description:
- Exceptional Mechanical Strength: Capable of withstanding significant pressure differentials.
- Uniform Filtration Gap: Contributes to the formation of a uniform filter cake, facilitating backwash regeneration.
- Wedge-Shaped Filter Gap: Enhances backwash regeneration capabilities.
- Durability: Resistant to pressure, temperature, aging, and corrosion, making it suitable for a wide range of fluids.
- Metal Wedge-Shaped Mesh Filter Element: Utilizes metal wedge-shaped wire mesh (Johnson tube) as the filter element, offering high mechanical strength, pressure resistance, and ease of cleaning and regeneration. The nearly two-dimensional filter screen eliminates particle accumulation dead zones, and the wedge-shaped gap effectively gathers backflushing energy for an excellent backflushing outcome.
Technical Parameters:
| Name | Parameter |
|---|---|
| Application | Water Well, Water Treatment, Sand Control, Mining, Food Processing, Chemical Industry, Filtration, Separation, Sieving And Screening, Etc. |
| Aperture Size | 0.010", 0.020", 0.030", 0.040", Or Customized |
| Name | Stainless Steel Water Well Screen, Stainless Steel Johnson Filter Screen |
| Surface Treatment | Electrolytic Polishing Or Polishing Or Pickling Polished |
| End Joint | Welding Ring, Thread Joint, Flange |
| Package | Inside Transparent Plastic Bag, Outside Woven Bag Or Bubble Bag, Wooden Case, Pallet Or Container |
| Filter Type | Screen Pipe, Screen Tube, Screen Nozzle, Screen Plate, Screen Panel, Screen Basket, Screen Laterial Arm Pipe, Screen Candle |
| Material | Stainless Steel 201 No Magnetic, 304, 304L, 316L, 321, Duplex Stainless Steel 2205 |
| Mesh Size | 4-400mesh |
| Length | 10ft / 20ft, Or Customized |
Applications:
It can be used for filtration and screening of various media, and is widely used in screening, filtration, dehydration, mud removal and other operations in many industries.
* Mining machinery: used for desilting and dewatering coal preparation in coal preparation plants.
* Malt machinery: it is suitable for the use of the milling machine, flossing machine and drying oven in malt plant.
* Beer machinery: suitable for use in the filter tank of brewery, with the advantages of high opening rate and long service life.
* Environmental protection: it is used for filling oil, gas and water Wells with sand and stone. It can protect underground and ground equipment from sand.It has the advantages of high opening rate, large filtration area, fast filtration speed and long service life.
* Chemical industry and others: used for waste water treatment in sugar mills and paper mills;Material filtration, dewaterting and supporting use of various paint rooms in chemical fertilizer plant;Starch filtration in food plants;Ventilation for food storage.
Customization:
Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.
Stainless steel filter screen material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.
Length: 2.9 M, 5.85 M. Up to 6 M.
Connection form: groove connection/weld ring connection or thread connection.
Tag: Johnson wire screen johnson screen mesh water well screen stainless steel filter screen continuous slot screen tube wire wrapped screen pipe
