Slot 60 Stainless Steel V Wire Screen Pipe Sand Control For Water Well
10" Slot 60 1.5mm V Wire Screen Pipe Stainless Steel Used In Water Well For Sand Control
Specifications of V Wire Water Well Screen Pipe:
- Material: stainless steel wire or galvanized wire or Duplex steel etc
- Surface profile: triangle wire.
- Support profile: triangle wire, round bar and wedge wire.
- Slot size: 0.25 mm - 35 mm. Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
- Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14"
- Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
Ends:Male/femle threaded, Bevel welded rings, Flanges, etc
Filtration Style: From outside to inside
Advantages of using V Wire Water Well Screen Pipe:
When compared to conventional slotted pipe, wire wrapped wedge wire screens have superior open area due to their continuous slot openings. The benefits of which will:
. Reduce energy consumption and increase water flow.
. Reduce erosion of entry surfaces and increase well life.
. Allow a uniform and efficient well development.
. Reduce significantly potential pump damage and subsequent maintenance costs.
V Wire Water Well Screen Pipe Information:
|
Sizes (inch) |
OD (mm) |
Slot (mm) |
Length (m) |
Tenslie Strength |
Collapse Strength |
Wrap wire Vee-shaped wire(mm) |
Support rod Round wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.2x3.5 (Widthxheight) | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 |
2.2x3.5 (WxH) |
ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 |
2.2x3.5 (W x H) |
ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 |
2.2x3.5 (W x H) |
ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 |
3.2x6.0 (W x H) |
ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 |
2.3x3.5 (W x H) |
ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 |
3.0x5.0 (W x H) |
ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 |
3.2x6.0 (W x H) |
ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 |
2.2x3.5 (W x H) |
ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 |
3.0x4.6 (W x H) |
ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 |
3.2x6.0 (W x H) |
ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 |
3.0x5.0 (W x H) |
ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 |
3.0x5.0 (W x H) |
ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 |
3.0x5.0 (W x H) |
ø4.0MM×54 |

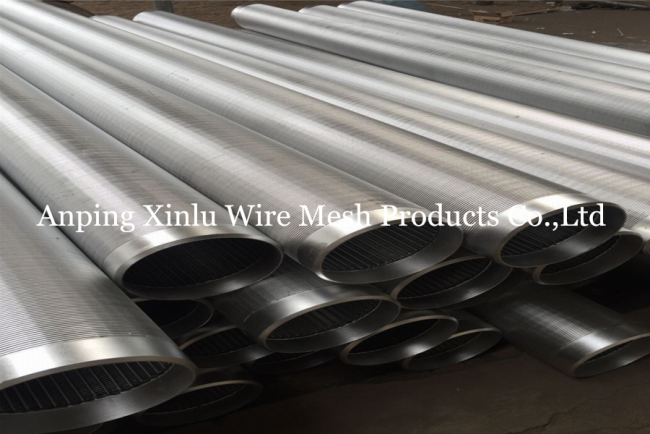

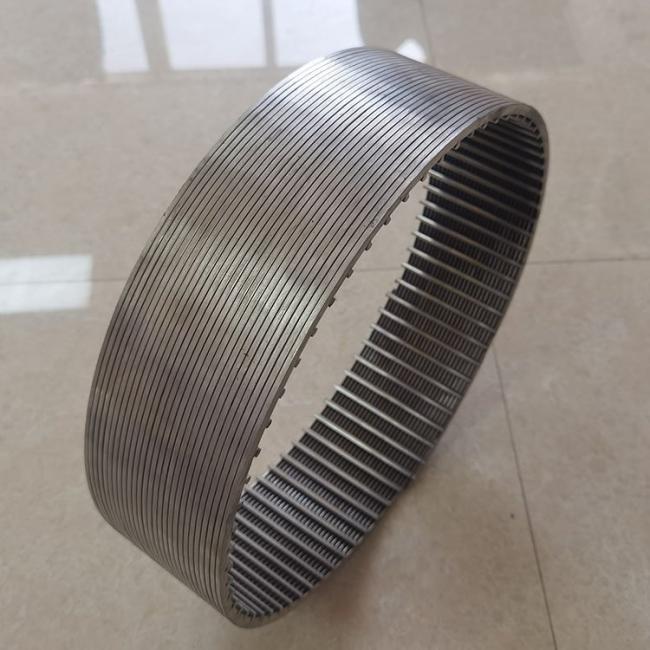

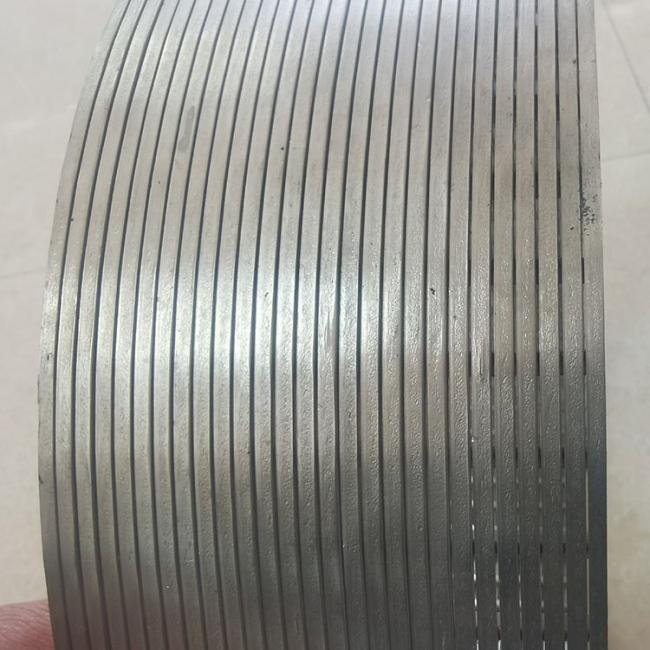

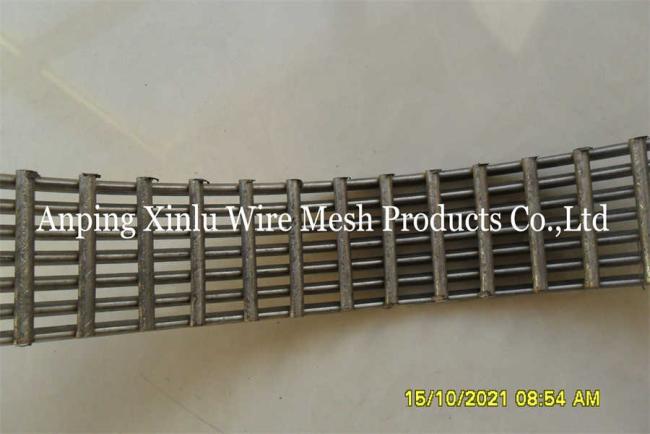

V Wire Water Well Screen Pipe Pictures:
Product Tags: 10" v wire water well screen pipe ; sand control v wire water well screen ; sand control well screen pipe
