Johnson Welded Slot Wrapped V Wire Screen Pipe Joints Fitted With Bevel Plain Ends 168 x 5.8m
168x5.8m V-Shaped Slot Johnson Wrapped Wire Welded Screen Pipes joints fitted with bevel plain ends
Xinlu Water Well Screen also called screen pipe, screen tube, wire wrap screen, filter element, is welded by external circumferential wire and axial internal support rods.
Profile wire: V-shaped wire, triangle wire, trapezoidal wire
Support wire: wedge wire, trapezoidal wire, or round wire
Material: stainless steel wire, duplex stainless steel wire, low carbon steel wire,Hastelloy
Max diameter 2m
Max length 20 feet
Min Slot 50 micron
Full welding End connection: welded rings, flange, thread,etc
Working hours: 24 /7. Welcome to inquire!
Screen Pipes: the screen pipes are of the continuous v-shaped slot screen Johnson type of the non-clogging wrapped wire welded over a longitudinal rod base and manufactured from galvanize and joints fitted with bevel plain ends to facilitate screen length 5.8 m, screen slot size to be determined according to aquifer sieve analysis data, but mainly of 0.76 and 1.0 mm. The screen size of the 168mm outer diameter and collapse pressure 50 bar for deep wells (more than 200m), and 25 bar for shallow wells less than 200 m.
V Wire Wrapped Water Wire Strainer Screen Pipe Application:
The product is especially suitable for waxy oil, asphalt, diesel, beer, and high viscosity oil.
It is widely used in electric power industry, natural gas well, petrochemical industry,chemical industry, mining, paper making, environmental protection, metallurgy, food, sand control, Coarse filtration and fine filtration engineering for water treatment.
V Wire Wrapped Water Wire Strainer Screens
- Material: stainless steel wire or galvanized wire.
- Surface profile: triangle wire.
- Support profile: triangle wire, round bar and wedge wire.
- Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
- Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14", 16", 20"
- Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
- Maximum collapse strength: 150 bar.
- Maximum tensile strength:40 tons.
- Connection type: Bevel welded rings; male/female threaded coupling.
- Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
- Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.
V Wire Wrapped Screen Pipe Specification:
|
Sizes (inch) |
OD (mm) |
Slot (mm) |
Length (m) |
Tensile Strength |
Collapse Strength |
Wrap wire Vee-shaped wire(mm) (Width x height) |
Support rod Round wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.2x3.5mm | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.2x3.5mm | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.2x3.5mm | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2x3.5mm | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2x6.0mm | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3x3.5mm | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0x5.0mm | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2x6.0mm | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2x3.5mm | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0x4.6mm | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2x6.0mm | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0x5.0mm | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0x5.0mm | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0x5.0mm | ø4.0MM×54 |
Quality Test Of v wire wrapped screen pipe:
1. When raw materials arrive at our factory, we will inpsect the chemical component and then loaded into our warehouse.
2. Our inspector will check during all the procedure.
3. Before be packaged, our sales manager will inspect the goods with inspector again, approved ones will be labled and packaged.
4. We have person to inspect the loading into container to avoid damage during transportation.

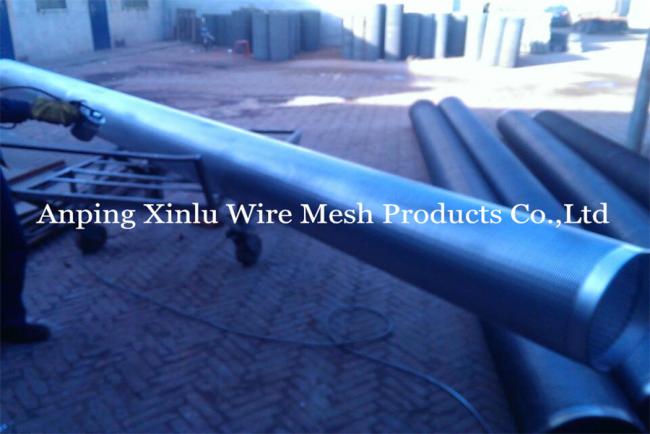

v wire wrapped screen pipe Pictures:
V Wire Wrapped Screen Pipe Package
Why choose us ?
1. We are the professional manufacturer.
2. We can give you the best quality products with competitive price.
3. Professional sales team can give you feedback within 24 hours.
4. We offer 12 months excellent after-sale service.
5. We offer customized service.
6. Our service is available twenty four seven, that is twenty four hours a day and seven days a week.
Product Tags: 6 diameter v wire water wire screen ; slot 60 v wire water wire screen ; 168 v wire screen pipe
