Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment
Product Description

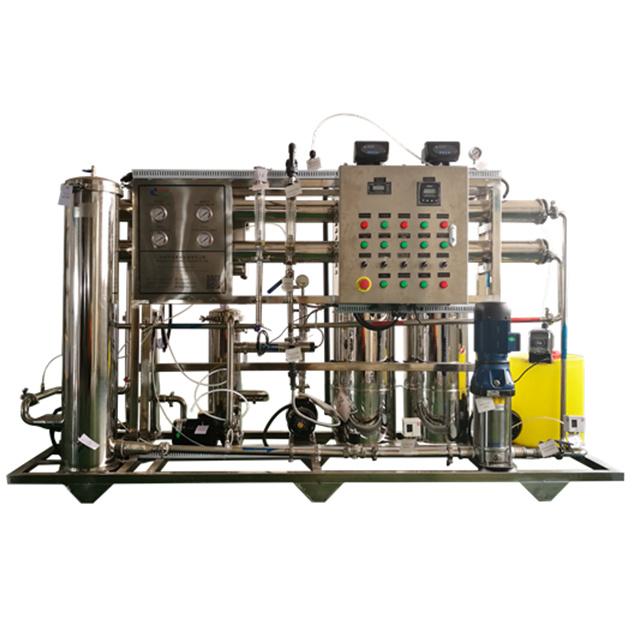

Underground Borehole Well Salt water Seawater Desalination System Water Water Treatment Equipment
Different source water have diffent TDS for compare and usage.
| Raw water/ Application | Bottled water, Bag water | City tap water | Brackish water | Seawater |
| TDS Range | 2-10ppm | 100-1000ppm | 2000-20000ppm | 20000-40000ppm |
| Direct Drinking | Yes | Yes/No | No | No |
| Cooking, human consumption, washing | Yes | Yes | No | No |
| Irrigation, Industry, Animal Drinking | Yes | Yes | No | No |
| Specified configuration(Each part is optional based on feed water quality) | ||
| Item | Material/Model | Function |
| Raw water pump | Lingxiao/CNP, SUS-316 | Provide pressure for raw water |
| Quartz sand filter | FRP | Get rid of turbidity, suspended matter, colloid, etc. |
| Antis-calant dosing system | SEKO from Italy | Remove Calcium ion(Ca2+) and magnesium ion(Mg2+) of removing hardness from water. |
| Security filter | PVC 1mircon/5mircon | Block impurities greater than 5micron(1micron) |
| High pressure pump | CNP/ SS316 Anti-corrosion | Provide pressure for water into membrane |
| Membrane | Domestic/Vontron / DuPont FilmTec | Remove heavy mental ion, bacterial. Desalination rate is more than 97% |
Replacement time of consumable parts
There are several kinds of consumables you need to replace regularly, please see below detail.
a. Quartz sand: replaced about every 15-18 months. 50kg/bag
b. Activated carbon: replaced about every 15-18 months. 25kg/bag
c. Resin: replaced about every 15-18 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. Ro membrane: replaced about every 2 year
The process of RO water treatment system (some process is option as per feed water quality)
Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→sodium-ion exchanger
(water softener)→ security filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer).
RO Process steps introduction
| Pre-treatment | Feed water pump, Stainless steel | Provide pressure for filters; |
| Quartz sand filter | Remove suspended particle and large impurity. In this system; | |
| Active Carbon Filter (option) | Remove the color, free chloride, organic matter, harmful matter, ect; | |
| Anti-scalant system | To add chemicals to remove some impurities and prolong thememebranes using/washing time(prevent membrane blocking) | |
| Manual/Auto control valves | Flushing sand/carbon filter after some time | |
| 5micron filter | Remove larger than 5 micro colloids in the water. In this system | |
| 1micron filter | Remove larger than 1 micro colloids in the water. In this system | |
| water RO Main Part | High pressure pump, Stainless steel 316L | Provide the high pressure to RO membrane; |
| Ro membranes | More than 98% desalination rate, can remove ions except H2O. | |
| CIP system | To washing the membranes when it is blocked after using for long time | |

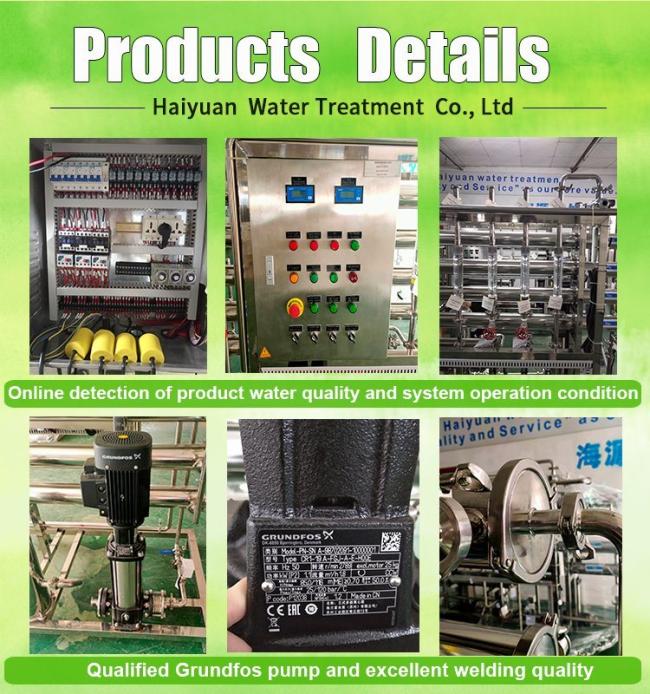

| Electronic control panel | PC controller or PLC controller |

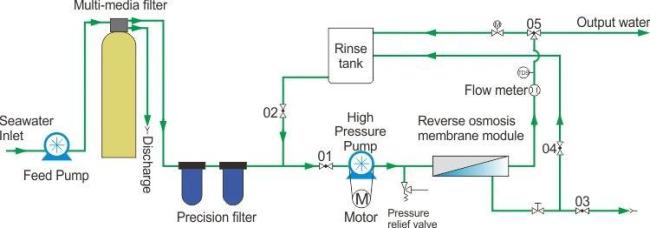

RO process flow chart: (Carbon filter softener based on feed water quality opiton)
| Model | Productivity | Motor power | Recovery rate | Outlet water conductivity(us/cm) | Raw water conductivity |
| HYRO-500L | 0.5T/H | 1.5kw | 50 | ≤10 | ≤300 |
| HYRO-100L | 1T/H | 2.2kw | 50 | ≤10 | ≤300 |
| HYRO-2000L | 2T/H | 3kw | 50-60 | ≤10 | ≤300 |
| HYRO-3000L | 3T/H | 4.5kw | 55-65 | ≤10 | ≤300 |
| HYRO-4000L | 4T/H | 6.5kw | 55-65 | ≤10 | ≤300 |
| HYRO-5000L | 5T/H | 8kw | 60-70 | ≤10 | ≤300 |
| HYRO-1000L | 10T/H | 15kw | 60-70 | ≤10 | ≤300 |
| HYRO-2000L | 20T/H | 22kw | 65-75 | ≤10 | ≤300 |
| HYRO-3000L | 30T/H | 26kw | 70-75 | ≤10 | ≤300 |
| HYRO-50000L | 50T/H | 55kw | 70-75 | ≤10 | ≤300 |
