Product Description
Water deminerlizer demineralizing demineralized water system equipment DM demineralized water plant
Please Attention
Different user have difference output water quality.
And the process also is difference.
1. Source water tank →Pretreatment parts→ Single RO system→ RO tank→EDI system →DM water system→10MΩ/cm outlet water.
2.Source water tank →Pretreatment parts→ Single RO system→ RO tank→Mixed bed →DM water system→10MΩ/cm outlet water.
3.Source water tank →Pretreatment parts→ doulbe RO system→Double RO tank→EDI system →DM water system→15MΩ/cm outlet water
4.Source water tank →Pretreatment parts→ doulbe RO system→Double RO tank→EDI system →Polish resin filter→ 18 MΩ/cm outlet water
5.Source water tank →Pretreatment parts→ cation resin →anion resin →Middle tank→Mixed bed →DM water→15MΩ/cm outlet water
For DM water output water quality.
1. Conductivity : 1us/cm.
2. Conductivity : 0.1us/cm
3. Resitivity:15MΩ/cm or 18 MΩ/cm
Advantages:
· Consistent high-purity water
· Can handle high variations in feedwater chemistry
· Proven, long operating history
· Most plant operating personnel are familiar with this process
Disadvantages: If use the mixed resin then need chemical
· Requires chemicals
· Chemical feed storage tanks required
· Neutralization process required
Deionized water system
| Model | Productivity | Motor power | Recovery rate | Outlet water conductivity(us/cm) | Raw water conductivity |
| HYRO-500L | 0.5T/H | 1.5kw | 50 | ≤0.1 | ≤300 |
| HYRO-100L | 1T/H | 2.2kw | 50 | ≤0.1 | ≤300 |
| HYRO-2000L | 2T/H | 3kw | 50-60 | ≤0.1 | ≤300 |
| HYRO-3000L | 3T/H | 4.5kw | 55-65 | ≤0.1 | ≤300 |
| HYRO-4000L | 4T/H | 6.5kw | 55-65 | ≤0.1 | ≤300 |
| HYRO-5000L | 5T/H | 8kw | 60-70 | ≤0.1 | ≤300 |
| HYRO-1000L | 10T/H | 15kw | 60-70 | ≤0.1 | ≤300 |
| HYRO-2000L | 20T/H | 22kw | 65-75 | ≤0.1 | ≤300 |
| HYRO-3000L | 30T/H | 26kw | 70-75 | ≤0.1 | ≤300 |
| HYRO-50000L | 50T/H | 55kw | 70-75 | ≤0.1 | ≤300 |

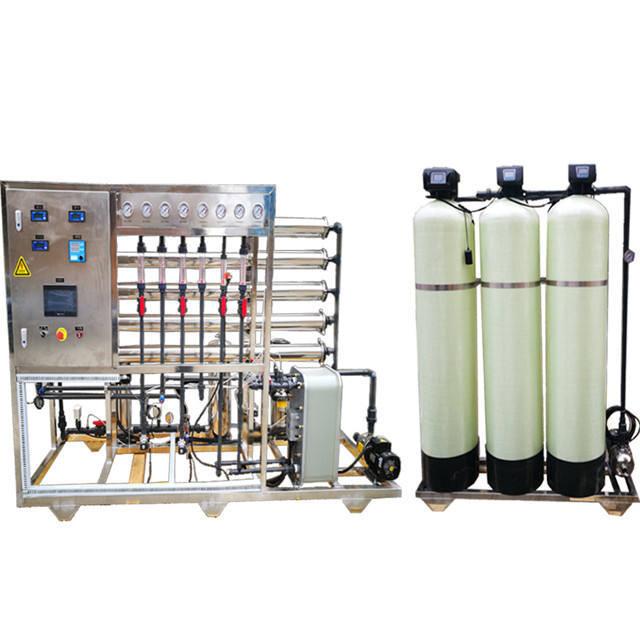

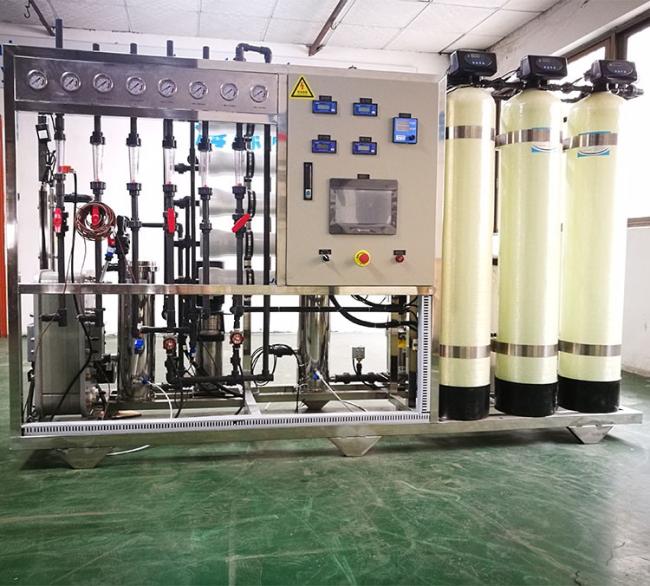

· 1000L/hr RO+EDI DM water system

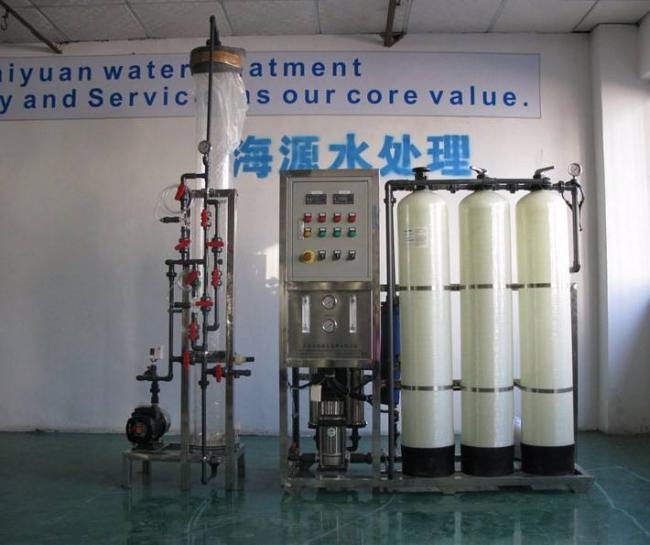

RO+Mixbed process

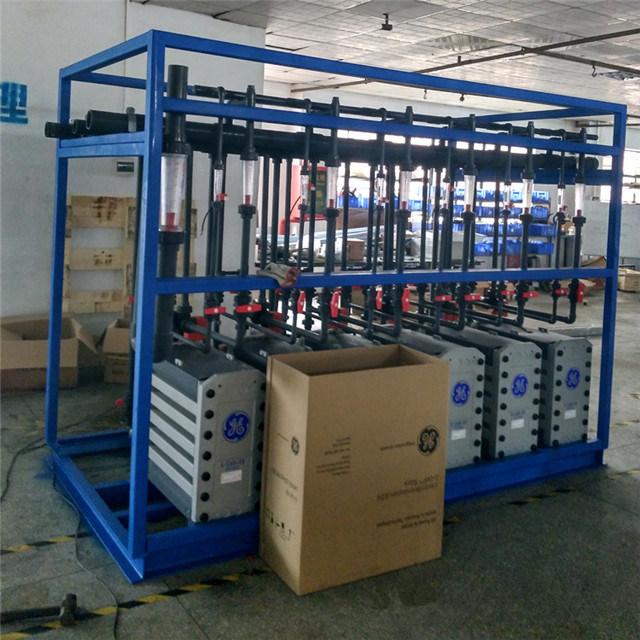

50m3/hr EDI system deionized water system
We can customized reverse osmosis system price
2 factories +300 workers+ Experienced engineeing team
- We are dedicated in water treatment since 2006
- Direct factory with mature supply chain to offer good price
- Export experience over 30 countries, familiar with customs issues
- Customized water treatment solution for varied industries
- ISO9001 quality certification & OEM service available
Pls send us inquirty get detail info. Thanks!
