Sea water salt water to drinking water machine
Sea water to drinking water machine salt water to drinking water machine
Please Attention
HY FACTORY OFFER YOU :
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: ONLINE PAYMENT.
4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY PROBLME.
5: AFTER SALES SERVICES 24/7
6. Letters patent
7. ENGINNER CAN BE OVERSEA INSTALLNATION
We have 2 factories +300 workers+ Qualified engineer+ Engineer Overseas service
Sea water to drinking water machine
process function description
1.Sea water to drinking water machine use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.
2.salt water to drinking water machine has protected when no power, poor power, larger electrical current, leakage, short circuit.
3.salt water to drinking water machine is compact, easy installation.
4.Desalination plant sea water equipped with manual and auto control based on user needed.
5.salt water to drinking water machine produce as per ISO and SGS standard and main parts accessories have obtained CE certification.
6. All the plants will be commissioning well. Make sure don't have any problem when arrived site.
7.What we provide not only the good products, but also our whole team, the quality, experience, and service.
Sea water to drinking water machine salt water to drinking water machine
|
HY-SWRO-5000LPD |
|||
|
Flow rate |
5000L/D=250L/hr |
Recovery rate |
20% |
|
Applicable power |
380V/50HZ 3 phase |
Rated power |
4.6KW |
|
Feedwater TDS |
<45000ppm |
freshwater TDS |
<600ppm |
|
Working pressure |
<6Mpa |
operating temperature |
5-45℃ |
|
Feedwater residual chlorine |
<0.1ppm |
Feedwater SDI |
<5 |
|
Feedwater turbidity |
<1NTU |
Feedwater PH value |
3-10 |
|
Equipment specification |
1.2X1.2X1.65(m) |
Net weight |
240Kg |
|
Packing specification(Plywood) |
1.3X1.3X1.75(cm) |
Gross weight |
300Kg |
Small RO Sea Water Desalination machine
Source water have below thre source:
1. Tap water can produce drinking water.
2. Salt water or brackish water can make drinking water.
3. Seawater can make the drinking water based on user requirement.
Which type source water please contact us.

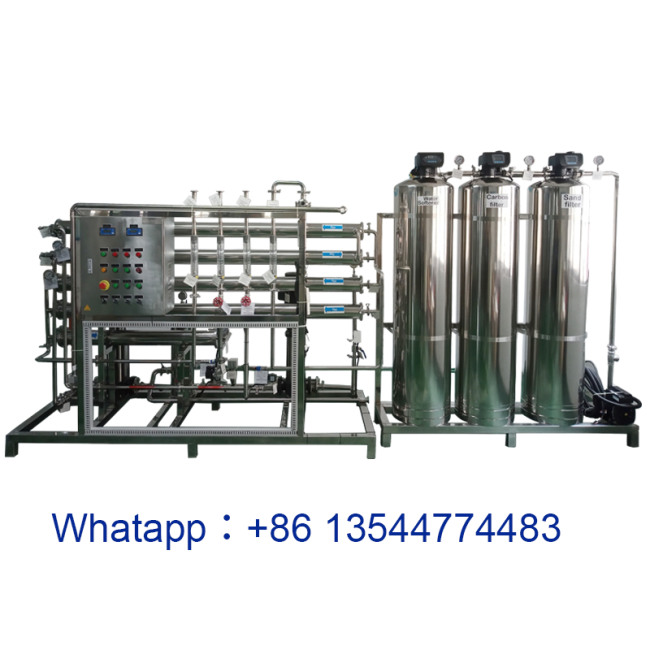

1000L stainless steel RO drinking water machine photo
|
Model |
HY-1000LPH |
Remark |
|
Product Capacity |
1m3/hr |
|
|
Power supply |
1PH x 220V, 50Hz |
|
|
Feed water pump |
Q= 2.5m3/h |
GRUNDFOS/DENMARK |
|
Sand filter |
Φ400×1520(mm) |
SUS304 |
|
Activated carbon filter |
Φ400×1520(mm) |
SUS304 |
|
Water softener |
Φ400×1520(mm) |
SUS304 |
|
Micron cartridge filter |
Φ159×500(mm) |
SUS304 |
|
1st High pressure pump |
Q= 2.5m3/h |
GRUNDFOS/DENMARK |
|
2nd High pressure pump |
Q= 1.25m3/h |
GRUNDFOS/DENMARK |
|
RO membrane |
4040 |
HYDRANAUTICS/USA |
|
RO membrane vessel |
4040 x 2, 4040 x 1 |
SUS304 |
|
UV sterilizer |
18W |
SUS304 |
|
Ozone generator |
120W |
SUS304 |
Contact us now
Get more information
We are the right supplier. You know why?
Salt water to drinking water machine Buying Guides
To find the most appropriate salt water to drinking water machine for your use, please have the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·· Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Iron
· Manganese
· TSS(Total Suspended Solid)
· SDI(Silting Density Index)< 3
· Water must be free from oils and grease
· Chlorine must be removed
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
· If soure water is tap water no need end to us TDS or water analysis report.
