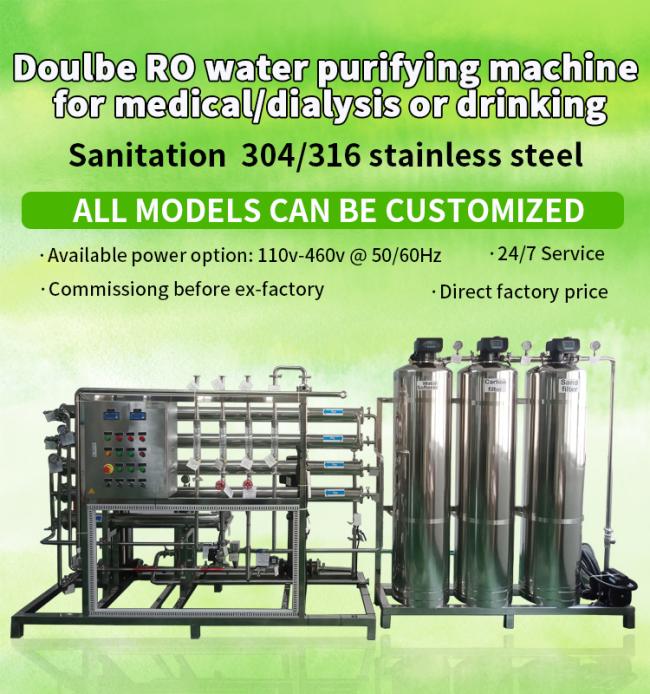

Medical ro water treatment plant machine for dialysis water purification system for dialysis
Medical ro water treatment plant machine for dialysis
water purification system for dialysis
Please Attention
HY FACTORY OFFER YOU :
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: ONLINE PAYMENT.
4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY PROBLME.
5: AFTER SALES SERVICES 24/7
6. Letters patent
7. ENGINNER CAN BE OVERSEA INSTALLNATION
We have 2 factories +300 workers+ Qualified engineer+ Engineer Overseas service
Prices of water purifying machines Process function description
1. Ro water treatment plant for dialysis use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.
2.Medical ro water treatment plant for dialysis protected when no power, poor power, larger electrical current, leakage, short circuit.
3.Water purification system for dialysis is compact, easy installation.
4.Water purification system for dialysis machinesequipped with manual and auto control based on user needed.
5. Haiyuan Prices of water purifying machines produce as per ISO and SGS standard and main parts accessories have obtained CE certification.
6. All the plants will be commissioning well. Make sure don't have any problem when arrived site.
7.What we provide not only the good products, but also our whole team, the quality, experience, and service.
1m3 hr ro water treatment plant for dialysis information
| Model | HY-1000LPH | Remark |
| Product Capacity | 1m3/hr |
|
| Power supply | 1PH x 220V, 50Hz |
|
| Feed water pump | Q= 2.5m3/h | GRUNDFOS/DENMARK |
| Sand filter | Φ400×1520(mm) | SUS304 |
| Activated carbon filter | Φ400×1520(mm) | SUS304 |
| Water softener | Φ400×1520(mm) | SUS304 |
| Micron cartridge filter | Φ159×500(mm) | SUS304 |
| 1st High pressure pump | Q= 2.5m3/h | GRUNDFOS/DENMARK |
| 2nd High pressure pump | Q= 1.25m3/h | GRUNDFOS/DENMARK |
| RO membrane | 4040 8 pcs | HYDRANAUTICS/USA |
| RO membrane vessel | 40480, 4 pcs | SUS304 |
| UV sterilizer | 18W | SUS304 |
| Ozone generator | 120W | SUS304 |
System functions of medical ro water treatment plant for dialysis
♦The machine adopts the sanitary materials, the structure is compact and simple in appearance
♦Control devise of intelligent operation, touchscreen interface
♦Automatic stop function, the operation is more simple
♦Online monitoring of the water quality of pure water, with alarm function when pure water quality exceeds the standard.
♦Multifunctional monitoring device can realize online supervision of the conductivity and flow, pressure, and has fault alarm.
♦With the perfect water quality protection, pressure, power protection and other safety self-locking function
♦Concentrated water can fulfill cyclic utilization, to realize the most reasonable utilization rate of water resources
♦Intelligent balance system to further ensure the stability and safety of water quality
Various working modes and emergency control measures, which can realize the free change-over of a single and double pass, ensure normal outlet of water, improve the reliability of clinical equipment operation
♦Disinfection parameter setting function, can fulfill the automatic disinfection and online monitoring and display the working state at any time, with easy operation and safety and reliability
♦System sound and light alarm recording function and the running fault and solving function
♦Reverse osmosis host automatic timing cycle and cleaning maintenance function. At the standby mode, this equipment can realize the automatic timing cleaning, avoid the growth of bacteria
♦Reverse osmosis membrane is with automatically flush and protection function when start-up, can remove inorganic salt, bacteria, and other magazines, ensuring the best operation state of reverse osmosis membrane, improve the using cycle of reverse osmosis membrane.
Technical parameters:
1.Bacterial removal rate ≥ 99%
2.Removal rate of dissolved salt ≥ 99%
3.The water recovery rate is over 70%
4.System empties ≥ 99%
5.System control: PLC, automatic running, and monitoring.
Why we make you trust our water purification system for dialysis?
Below will show you.
Get more information
Water purification system for dialysis Buying Guides
To find the most appropriate prices of water purifying machines for your use, please have the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·· Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Iron
· Manganese
· TSS(Total Suspended Solid)
· SDI(Silting Density Index)< 3
· Water must be free from oils and grease
· Chlorine must be removed
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
· If soure water is tap water no need end to us TDS or water analysis report.
