SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
salt sea water to drinking water machine
|
Model |
HY-1000LPH |
Remark |
|
Product Capacity |
1m3/hr |
|
|
Power supply |
1PH x 220V, 50Hz |
|
|
Feed water pump |
Q= 2.5m3/h |
GRUNDFOS/DENMARK |
|
Sand filter |
Φ400×1520(mm) |
SUS304 |
|
Activated carbon filter |
Φ400×1520(mm) |
SUS304 |
|
Water softener |
Φ400×1520(mm) |
SUS304 |
|
Micron cartridge filter |
Φ159×500(mm) |
SUS304 |
|
1st High pressure pump |
Q= 2.5m3/h |
GRUNDFOS/DENMARK |
|
2nd High pressure pump |
Q= 1.25m3/h |
GRUNDFOS/DENMARK |
|
RO membrane |
4040 8 pcs |
HYDRANAUTICS/USA |
|
RO membrane vessel |
40480, 4 pcs |
SUS304 |
|
UV sterilizer |
18W |
SUS304 |
|
Ozone generator |
120W |
SUS304 |
Process flow
Haiyuan Company designs reasonable process according to user water requirements

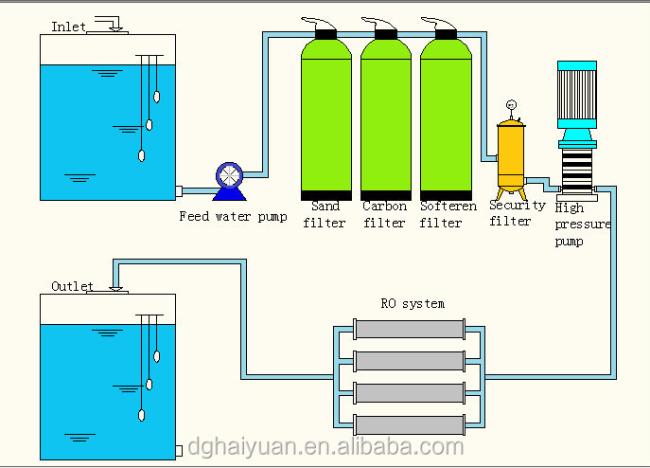

Processing Diagram
Good materials, good quality
Features of Water Treatment
Pretreatment:
(1) Quartz sand/manganese sand filter
(2) Activated Carbon filter
(3) Softener and PP Filter
(4) Dosing system if need.
Main Machine of Water Treatment:
(1)Pumps;
(2)RO membrane (DOW/CSM/Hydranautics)
(3)Membrane Vessel(SS and FRP)
(4)PLC control/Relay control
(5)Optional UV sterlilizer&Ozone
Functions of Water Treatment:
A. Auto flush
B. Low pressure protection
C. High pressure protection
D. Back wash ® Eneration control

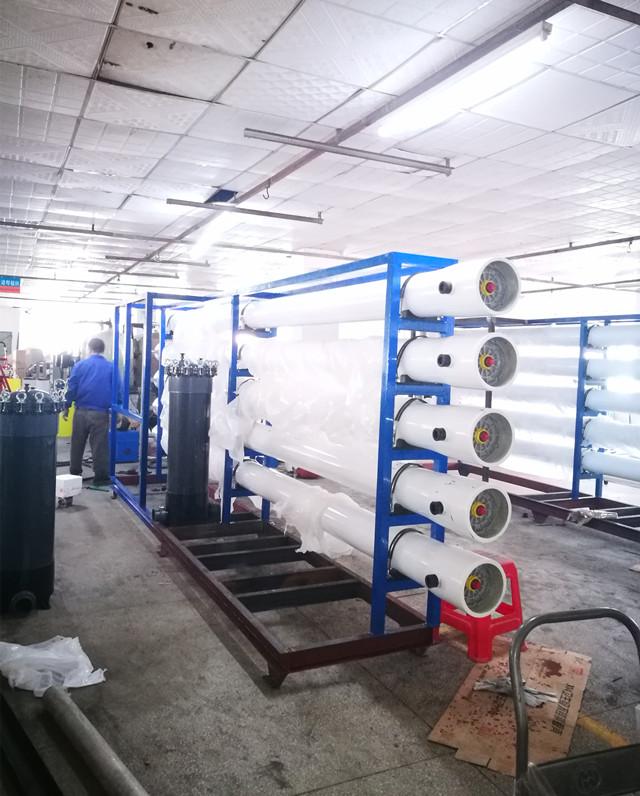

HaiYuan Workshop
Our Services
(1)100% factory tested before shipment
(2) 1 Year's Quality Warranty
(3) 2 Years of trouble free service offered
(4) Solve problems within 24 hours
We have 2 factories +300 workers+ Qualified engineer+ Overseas service
