1.65kw Reverse Osmosis RO Plant , SS304 Dialysis Water Treatment Plant
Automatic RO system water treatment for dialysis
Feature of ro system for dialysis
1. Uses automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.
2. Protected when no power, poor power, larger electrical current, leakage, short circuit.
3. ro system for dialysis is compact, easy installation.
4. ro system for dialysis equipped with PLC and touch screen control and remote login .(Siemens PLC and Touch screen or Mitsubish PLC and tourch) This parts is optional.
5. Produce as per ISO and SGS standard and main parts accessories have obtained CE certification.

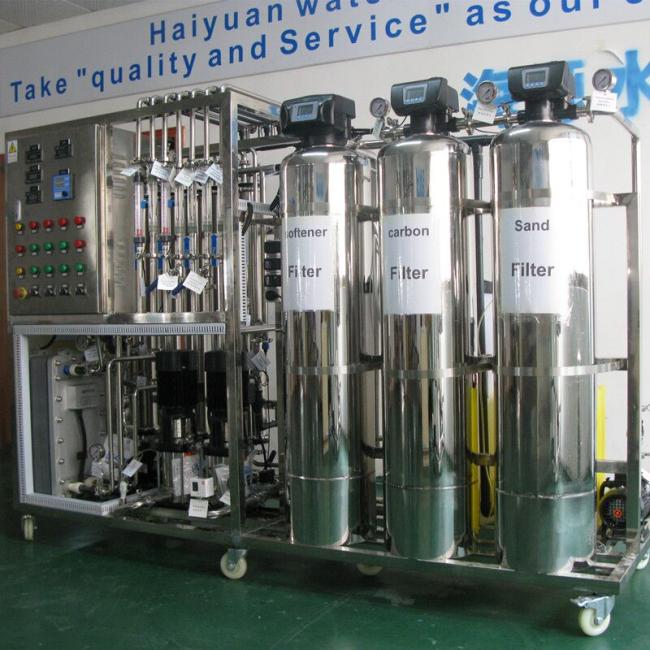

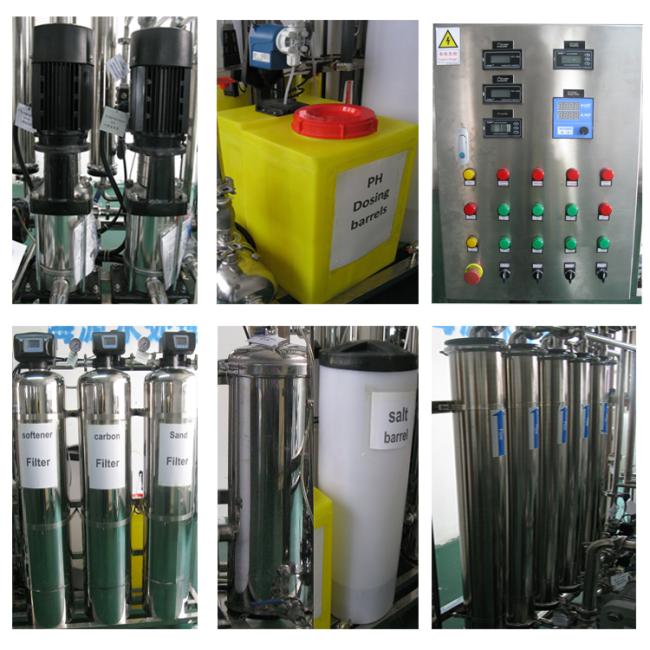

Photo of ro system for dialysis
Double stage RO system water treatment for dialysis
|
Model |
HY RO-1000L/Hr |
|
Process |
Pre-treatment+RO |
|
Power |
1.65KW |
|
Power supply |
220V or380V 50Hz~60Hz |
|
Raw water pump |
CDL2-40/0.55 KW |
|
Sand filter, Carbon filter softener |
325*1350 stainless steel 2pcs |
|
Security filter |
20 "× 5μm , 3pcs |
|
High pressure pump |
CDLS2-11/1.1KW |
|
Reverse osmosis (RO)membrane |
4040 4piece |
|
Membrane housing |
4040 4pcs SS304 |
Get more information
ro system for dialysis Process Flow
Source tank →Feed water pump→ muti-media filter(sands filter)→ active carbon filter→ water softener(or inhibitor dosing)→Cartridge/Security/Micro filter→high-pressure/Centrifugal pump→ Reverse Osmosis system→ RO purified tank →ultraviolet sterilizer
ro system for dialysis process introduction
|
NOS. |
Items |
Information |
|
1. Pre-treatment part |
||
|
1.1 |
Sand filter |
Remove turbidity, SS matter, organic matter, colloid, etc. |
|
1.2 |
Active carbon filter |
Remove color, free chloride, organic matter, harmful matter, etc. |
|
1.3 |
Water softener |
Soft water and reduce it's hardness. |
|
2. RO part |
||
|
2.1 |
High pressure pump |
Provide power for RO. |
|
2.2 |
PP filter |
Prevent large particles, iron, dust, SS matter, impurity into RO membrane. |
|
2.3 |
RO membrane |
Remves: lead, cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium. |
|
3. Electricity control system |
||
|
3.1 |
PLC+Touch screen control system |
Import from Japan and Taiwan. WeiNveiw, Mitsubishi. |
|
3.2 |
Electrivity components |
Import from German. Schneider, Omron. |
|
3.3 |
Pipe and fitting |
Adopt domestic famous brands. |
