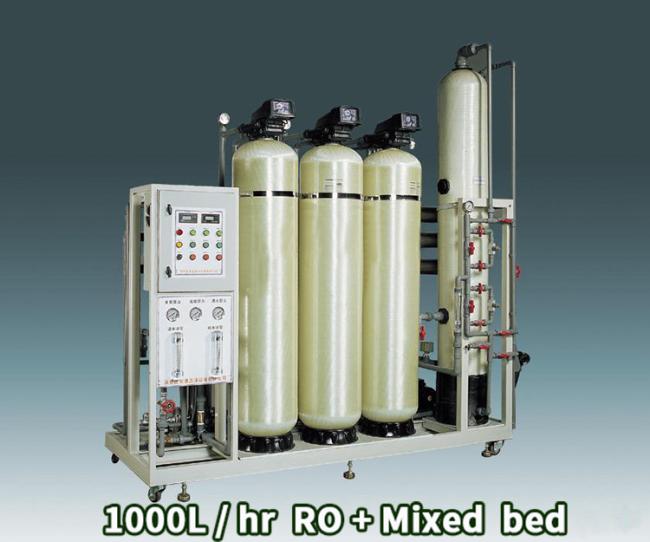

Mixed Bed Demineralized Water Plant , 60% - 75% Recovery Ion Exchange Dm Plant
Mixed-bed ion exchange water machine resin demineralization system price
Please Attention
HY FACTORY OFFER YOU :
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: ONLINE PAYMENT.
4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY PROBLME.
5: AFTER SALES SERVICES 24/7
6. Letters patent
7. ENGINNER CAN BE OVERSEA INSTALLNATION
We have 2 factories +300 workers+ Qualified engineer+ Engineer Overseas service
Mixed-bed ion exchange water resin demineralization process function description
1.Water resin demineralization system use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.
2.Ion exchange resin machine price has protected when no power, poor power, larger electrical current, leakage, short circuit.
3.Mixed-bed ion exchange plant is compact, easy installation.
4.Ion exchange resin machine price equipped with manual and auto control based on user needed.
5.Mixed-bed ion exchange plant produce as per ISO and SGS standard and main parts accessories have obtained CE certification.
6. All the plants will be commissioning well. Make sure don't have any problem when arrived site.
7.What we provide not only the good products, but also our whole team, the quality, experience, and service.
Deionized Water System , plant Process Flow:Source tank →Feed water pump → multi-media filter(sands filter) → active carbon filter → water softener(or inhibitor dosing)→PP filter→ high-pressure pump →RO system→PH adjust system →RO tank →Deionized feed pump →Ion exchange column → Deionized water tank → transfer pump → outlet water
Deionized Water System process introduction.
|
NOS. |
Items |
Information |
|
1.Deionized water syste Pre-treatment part |
||
|
1.1 |
Sand filter |
Remove turbidity, SS matter, organic matter, colloid, etc. |
|
1.2 |
Active carbon filter |
Remove color, free chloride, organic matter, harmful matter, etc. |
|
1.3 |
Water softener |
Soft water and reduce it's hardness. |
|
2. Deionized water syste RO part |
||
|
2.1 |
High pressure pump |
Provide power for RO. |
|
2.2 |
PP filter |
Prevent large particles, iron, dust, SS matter, impurity into RO membrane. |
|
2.3 |
RO membrane |
Remves: lead, cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium. |
|
3. Deionized Water System system part |
||
|
3.1 |
Ion exchange feed water pump |
Provide power for ion exchange system. |
|
3.2 |
Anion and cation exchange filter |
Further removes ions in water. |
|
3.3 |
Security fitler |
Prevent the resin leakage |
|
4. Electricity control system |
||
|
4.1 |
PLC+Touch screen control system |
Japan Mitsubishi. siemens |
|
4.2 |
Electrivity components |
Import from German. Schneider, Omron. |
|
4.3 |
Pipe and fitting |
Adopt domestic famous brands. |
Pure water quality:
|
PH |
5.0-7.0 |
Nitrate |
≤0.06μg/ml |
|
EC |
≤10μS/cm |
ER |
≥0.5MΩ.CM |
|
Endotoxin |
≤0.25EU/ml |
Nitrite |
≤0.02μg/ml |
|
TOC |
≤0.50mg/L |
NH3 |
≤0.3μg/ml |
|
Heavy metal |
≤0.5μg/ml |
Microorganism |
100CFU/ml |
Advantage:
1. Water resin demineralization use automatic control and semi-control
2. Water resin demineralization has protected when no power, poor power, larger electrical current, leakage, short circuit.
3. China Supplier mixed-bed ion exchange water resin demineralization has ISO certification and main parts accessories have obtained CE certification
4.Factory has Long term production experience.
Get more information
Process flow
Source water tank →Source booster pump → muti media filter(sands filter) → active carbon filter →water softener →PP filter →high-pressure pump→ RO system → RO tank →UV sterilization
Products feature
1. ion exchanger-mixed bed for demineralized water use automatic control and semi-control
2. ion exchanger-mixed bed for demineralized water has protected when no power, poor power, larger electrical current, leakage, short circuit.
3. ion exchanger-mixed bed for demineralized water has ISO certification and main parts accessories have obtained CE certification
4. factory has Long term production experience.
5.Can supply overseas for installation and commissioning.
This program adopts auto control, make use of import electrical components, beautiful and simple, high stability.
Achieve water treatment automation is the way to improve enterprise management level, reduce labor intensity, easy operation and management, ensure water quality and safety, save energy, reduce cost.
Water treatment automation control system is mainly based on liquid level, flow, pressure and other signals through the electrical system to control the pump and valve operating status, and according to process requirements and changes in equipment operating parameters automatically or prompt the operator to control the operation of the device.
Raw water tank, RO water tank are all equipped with level controller, control start and stop of the pump connected to the tank through the electrical system .
RO unit is pre-desalination systems in processing the pure water, in their inlet pipe, pure water pipe, concentrated water pipe, install control valve, pressure gauge, flow meter, monitoring and controlling the operation, cleaning of the unit, ensure that the RO unit meet the technical
requirements.
The right designs here waiting for you
Provide solution with our sincerity and technology.
Take "quality and Service" as our core value.
To be friend, to be partner.
Real comments from our client, Trust you will like our products.
We are the right supplier. You know why?
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
