DC6V Motion Detector Under Cabinet Lights
IR dry battery operated magnetic furniture decorative aluminum DC6V small furniture light
Features:
IR cabinet light
4 AAA dry battery (Without batteries)
1W, DC 6V, SMD, Ra＞80
Light body length 300mm

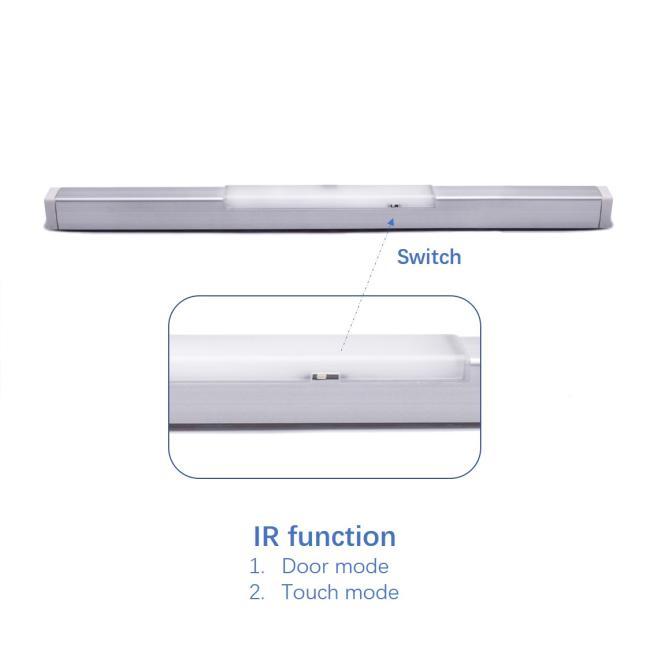

IR function, door mode/touch mode
White lens
Specification:
|
Product specifications
|
|
|
Material
|
Aluminum+PC
|
|
Parts
|
4 AAA battery,Soft magnet+3M adhesive
|
|
Dimensions
|
17mm(W)x18mm(H) x300mm(L)
|
|
Light Source:
|
High brightness SMD 3014LED
|
|
Operating Temperature:
|
-20°C to 45°C - Indoors
|
|
Warranty:
|
2 years with proper installation
|
|
Installation:
|
adsorption
|
|
Ingress Protection Grade:
|
IP20
|
| Model | Size | Power | Voltage | Beam Angle | Lumen(lm) | Remarks |
| LS17-300 IR | 17x18x300 | 1 | DC 6V | 112° | 42 | IR mode: 1)door mode; 2)touch mode; |
| LS17-300 PIR | 17x18x300 | 1 | DC 6V | 112° | 42 | PIR mode,detection area: 120°3m distance |
Description:
All aluminum housing, good heat dissipation;
Micky diffuser make light more soft;

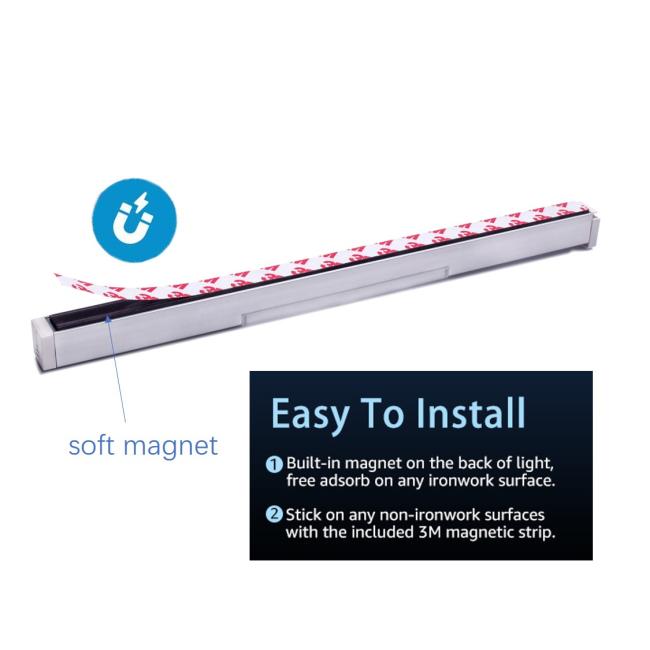

Easy to intall: Built-in magnet on the back of light,free adsorb on any ironwork surface
Stick on any non-ironwork surfaces with the included 3M magnetic strip;

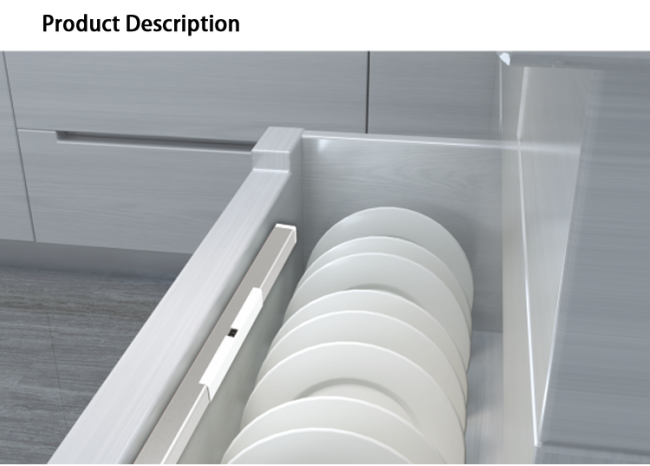

This cabinet light is suited for any array of application-sink,display,bookcase,workbench,under closet etc.
Application:
This cabinet can be widely used in kitchen, living room, cabinet and other desired places;
FAQ
IR dry battery operated magnetic furniture decorative aluminum DC6V small furniture light
Q1. Can I have a sample order for cabinet light?
A: Yes, we welcome sample order for testing and quality checking. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,45 working days for mass production.
Q3. Do you have MOQ for cabinet light order?
A: MOQ 1000pcs, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for cabinet light?
A: Firstly let us know your detail requirements.
Secondly We quote according to your requirements.
Thirdly customer confirms the samples and arrange deposit for formal order. Then we arrange the production.
Q6. Is it OK to print my logo on sticker of cabinet light product?
A: Yes. Please send us your design.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty.
