300mm Undermount LED Cabinet Lights Aluminum Infrared Induction
Multi-function aluminum alloy CCT adjustable IR motion sensor under mount dimmable cabinet light
Features:
IR under mounted cabinet light
DC 12V, SMD, Ra＞80
IR sensor function, two modes in one ( touch mode and door mode)
Milky lens
Fashion and delicacy
Energy saving, long lifespan
Specification:
|
Product specifications
|
|
|
Material
|
Aluminum + PC
|
|
Parts
|
Screws
|
|
Dimensions
|
28mm(W)x12.5mm(H) x“300/500/1000mm(L)”
|
|
Light Source:
|
High brightness SMD2835 LED
|
|
Operating Temperature:
|
-20°C to 45°C - Indoors
|
|
Warranty:
|
2 years with proper installation
|
|

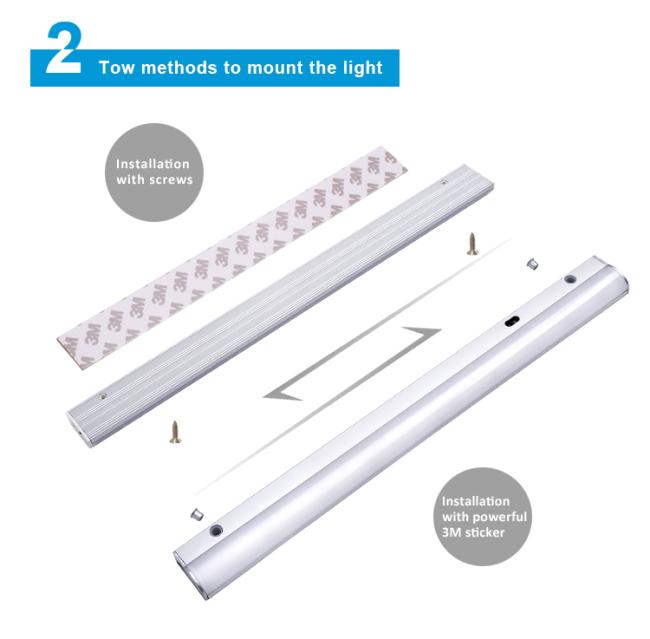

Installation:
|
2pcs M2.5 screws allows easy installation
|
|
Ingress Protection Grade:
|
IP20
|
| Model | Size | Power | Voltage | Beam Angle | Lumen(lm) | Remarks |
| LS272-300 | 28x12.5x300 | 3 | DC 12V | 109° | 225 |
IR sensor function,two modes in one (touch mode and door mode) |
| LS272-500 | 28x12.5x500 | 5.5 | DC 12V | 109° | 412 | |
| LS272-1000 | 28x12.5x1000 | 10 | DC 12V | 109° | 788 |
Description:
Aluminum housing for good heat dissipation

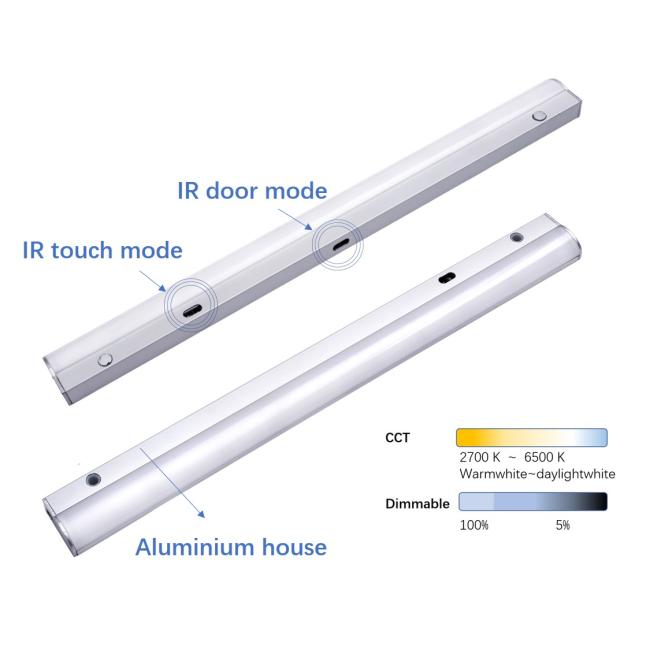

IR sensor function, two modes in one ( touch mode and door mode)
CCT adjustable(2700K-6500K) and dimmable
easy installation:2pcs M2.5 screws allows
Application:
This cabinet can be widely used in kitchen, living room, cabinet and other desired places;
FAQ
Multi-function aluminum alloy CCT adjustable IR motion sensor under mount dimmable cabinet light
Q1. Can I have a sample order for cabinet light?
A: Yes, we welcome sample order for testing and quality checking. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,45 working days for mass production.
Q3. Do you have MOQ for cabinet light order?
A: MOQ 1000pcs, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for cabinet light?
A: Firstly let us know your detail requirements.
Secondly We quote according to your requirements.
Thirdly customer confirms the samples and arrange deposit for formal order. Then we arrange the production.
Q6. Is it OK to print my logo on sticker of cabinet light product?
A: Yes. Please send us your design.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty.
