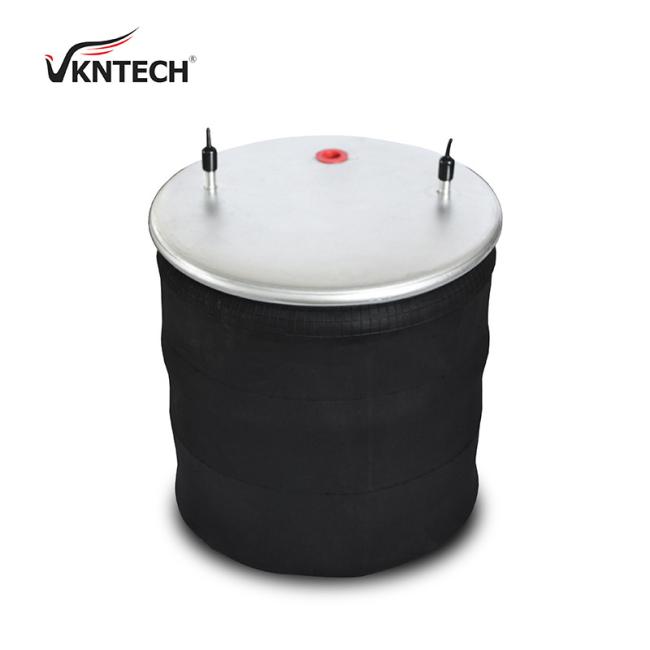

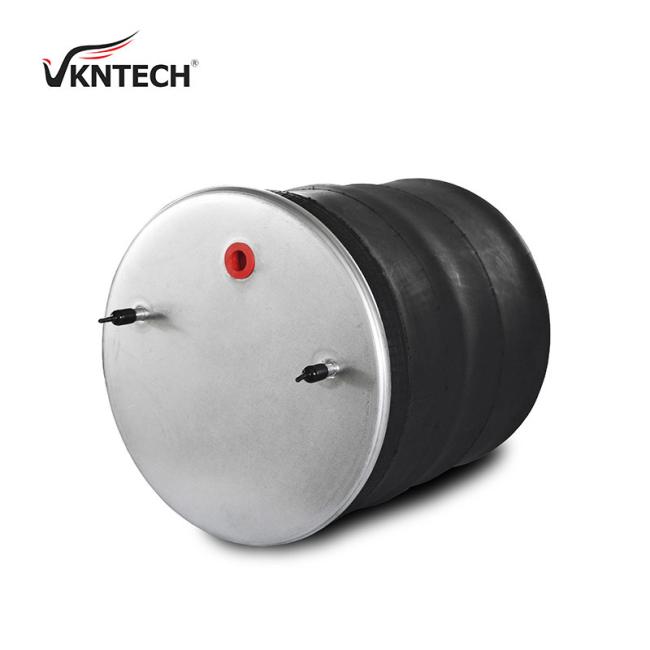

High Quality BPW 36 Air Bag GOODYEAR 1R14-748 Rubber Air Spring For Trailer
High Quality BPW 36 Air Bag GOODYEAR 1R14-748 Rubber Air Spring For Trailer
| CROSS REFERENCE | OEM REFERENCE | ||
| DUNLOP FR | D14B36 | BPW | 05.429.43.51.0 |
| GOODYEAR | 1R14-748 | BPW Type | BPW 36 |
| PHOENIX | 1 DK 32-2 | SCHMITZ | 750496 |
| TAURUS | KR-836-05 | 750549 | |
| WABCO | 951 814 748 0 |
REPLACES
Goodyear
- 1R14-708
- 566-28-3-500
ContiTech
- 881MB
BPW – (Type 36)
- 05.429.42.26.0
05.429.40.01.0
ITAL
- IT9070G
Phoenix
- 1DK32
Taurus
- UR836-01
Replacement Pistons
- BP1261 (metal)
BP1271 (plastic)

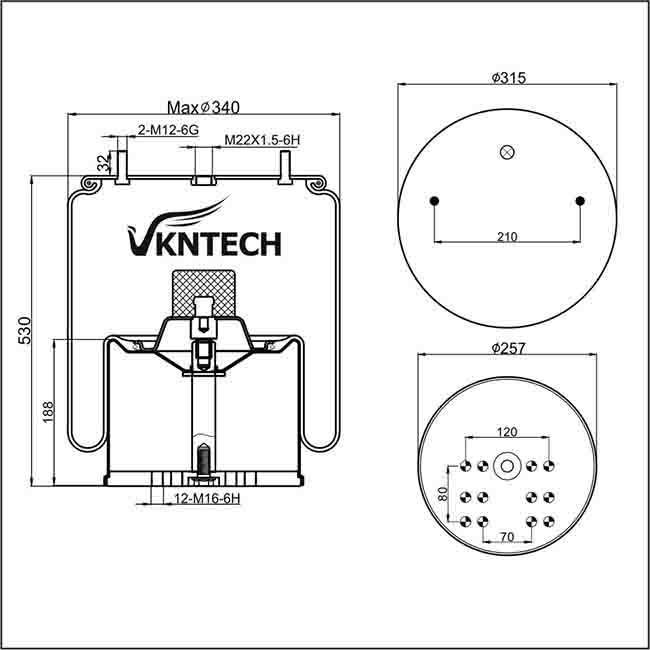

Product Drawing
What are Suspension Air Bag Kits?
The basic function of these air bag kits is to assist the factory springs when a heavy load is applied and keep your vehicle from sagging in the rear. They will also help improve steering control, reduce sway and lessen wear on existing suspension components. Basic installation is done by mounting the kits between the frame and suspension. Air pressure within the air bags will help support additional weight. All factory suspension components are retained.
How to Adjust Air Pressure?
Air pressure can easily be adjusted by using the included inflation valves. These valves are usually run to the rear of the vehicle with air hose and mounted near the rear bumper. Adjustment of pressure is done the same way a standard tire is inflated or deflated. Optional air systems are also available that allow you control the air pressure from the cab of your truck.
