Universal Air Bag Hendrickson Trailer S22948 And Firestone W01-358-8713 Air Springs
Universal Air Bag Hendrickson Trailer S22948 And Firestone W01-358-8713 Air Springs
| CROSS REFERENCE | OEM REFERENCE | ||
| FIRESTONE | 1T17CA-6.5 | TRIANGLE | 8533 |
| CONTITECH | 10 10-17.5 S 533 | HENDRICKSON | S22948 |
| FIRESTONE 2 | W01 358 8713 | ||
| GOODYEAR | 1R13-176 | ||
| 1 R13-140 |
Replacement Part Numbers
Triangle: 8484
Firestone: W01-358-8713
Goodyear: 1R13-176
Hendrickson: S-22948
Contitech: 10 10-16 S 533
Specifications
Extended Height : 21.50"
Compressed Height : 8.00"
Top Plate Width : 10.38"
Piston Width : 9.22"
Weight : 15.6 lbs
Product Drawing:
Product Description
Manufacturer: Viking Air spring
Part Number: 1K8713
Spring Pro bellows numbers are the actual air bag number. No more research is required to know what air bag you need.
Goodyear Bellows Number: 566-26-3-078
Replaces Goodyear Part Number: 1R13-176
Firestone Bellows Number: 1T17CA-6.5
Replaces Firestone Part Number: W01-358-8713
Replaces: Hendrickson Trailer S22948 (Van Traax)
Cross References: 1R13176, 566263078, C22948, C-22948, S-22948, 8533, S22948, 1R13-176, 10 10-16 S 533, 1010-16S533, 101016S533, W01-358-8713, W013588713, 1T17CA6.5, 137082, S23178, S-23178
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.

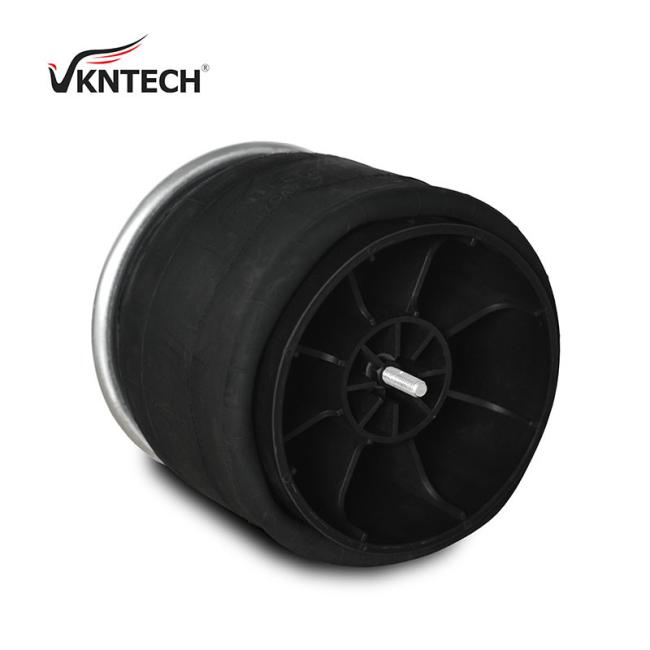

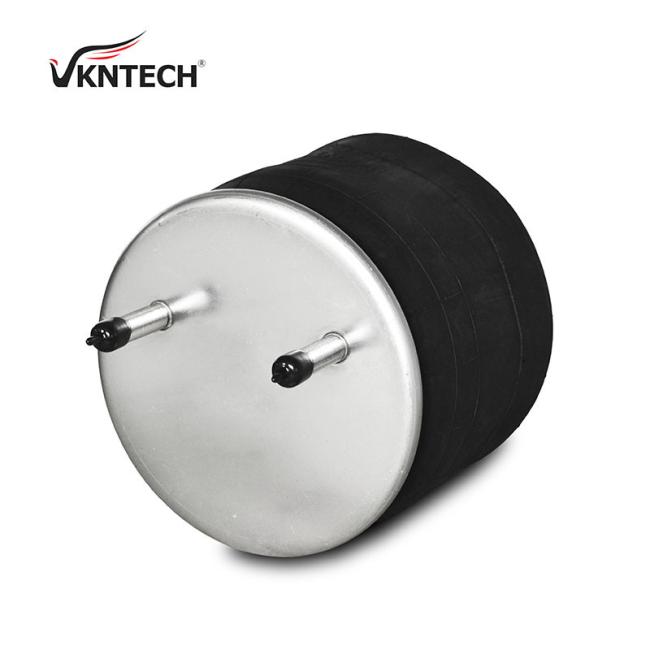

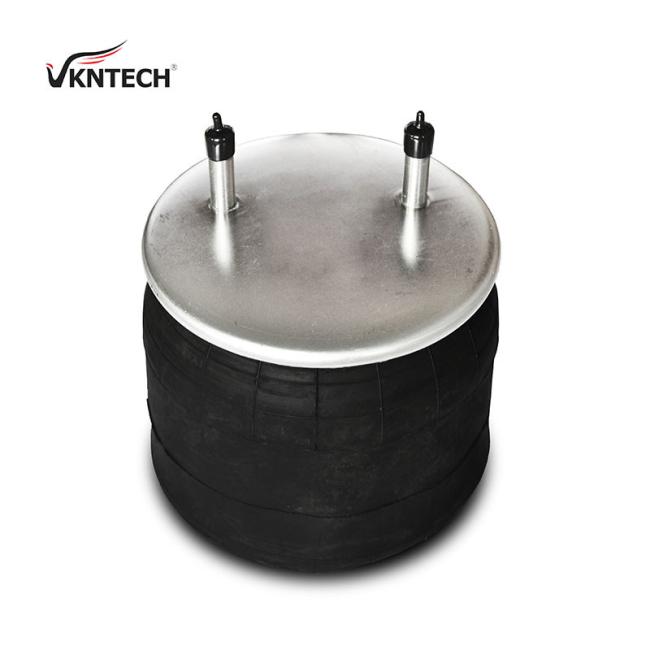

Factory Pictures:
