13 Years Of Experience Manufacturer Air Suspension Bag For HENDRICKSON TRAILER S21800 Firestone W01-358-8709 Air Spring

Price Negotiable
Price: $1.00 - $45.00/Pieces
MOQ: 10 Pieces
Delivery Time: Negotiable
Brand: VKNTECH
Product Description

 13 Years Of Experience Manufacturer Air Suspension Bag For HENDRICKSON TRAILER S21800 Firestone W01-358-8709 Air Spring



OEM Numbers



Contitech 10 10-15 S 453 HENDRICKSON TRAILER S21800
HKA-180
(Intraax AA230)
[8/97-up]
Firestone W01-358-8709
W01-358-8751
1T17CA-5

Goodyear 1R13-159

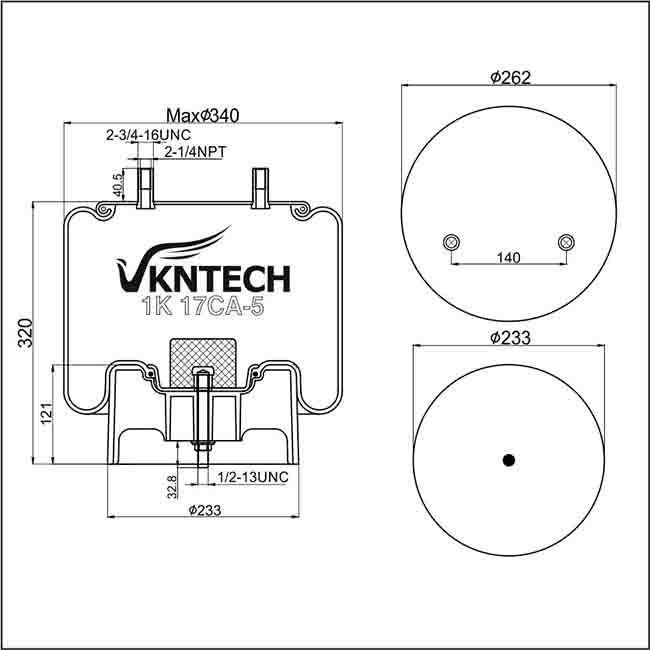

 Product Drawing












Specifications





Air Spring Air Fitting Size 2 x Combination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T.
Air Spring Compressed Height 6 in.
Air Spring # of Lobes 1 Solid Sleeve
Air Spring Type 1T - Reversible Sleeve
Bead Plate (Top) & Deflated Bellows O.D. 10.62 and 10.38 in.
Bead Plate (Top) Mounting Bolts Dimension Center to Center 5.50 in.
Diameter 10.62 in.
Extended Height Deflated 19.4 in.
Finished Weight 14.1 lbs
Piston Height 4.74 in.
Bead Plate Top Diameter 10.38 in.
Bead Plate Bottom Diameter 9.15 in.
Application Hendrickson Trailer S21800 (Intraax AA230) [8/97-up] -replaces W01-358-8751 (approx. 6/98)
Bottom Bead Plate Hardware Key Bold or Stud 1/2-13
Compressed Height (in.) 6
Extended Height (in.) 19.4
Firestone Bellows Number 1T17CA-5
Piston Width (in.) 9.15
Top Plate Width (in.) 10.38







Warning and Tips



  • ✅ QUALITY - Easy to identify part number permanently engraved on the rubber. 4.5 - 5.00 mm thick rubber that exceeds OEM requirements. 25% stronger 4140 grade steel studs. Stronger composite pistons. Highest leak test ratio after final assembly. Industry's only air spring backed with a Limited Lifetime Warranty.

  • ✅ SPECS - Extended Height: 19.40"
