Air Bag 11 10.5-17 A 377/Air Ride Suspension System 1R13-047/Truck Spare Parts Air Ballons Air Bags W01-358-9144
Price:
$1.00 - $45.00/Pieces
MOQ:
20 Pieces
Delivery Time:
Negotiable
Brand:
VKNTECH
Product Description
Air Bag 11 10.5-17 A 377/Air Ride Suspension System 1R13-047/Truck Spare Parts Air Ballons Air Bags W01-358-9144
OEM Numbers
| Contitech | 11 10.5-17 A 377 | NEWAY | 90557155 |
| Firestone | W01-358-9144 | ||
| 1T19L-7/F-7 | |||
| Goodyear | 1R13-047 | ||
| 1R13-160 | |||
| 1R14-215 | |||
| 1R14-160 |

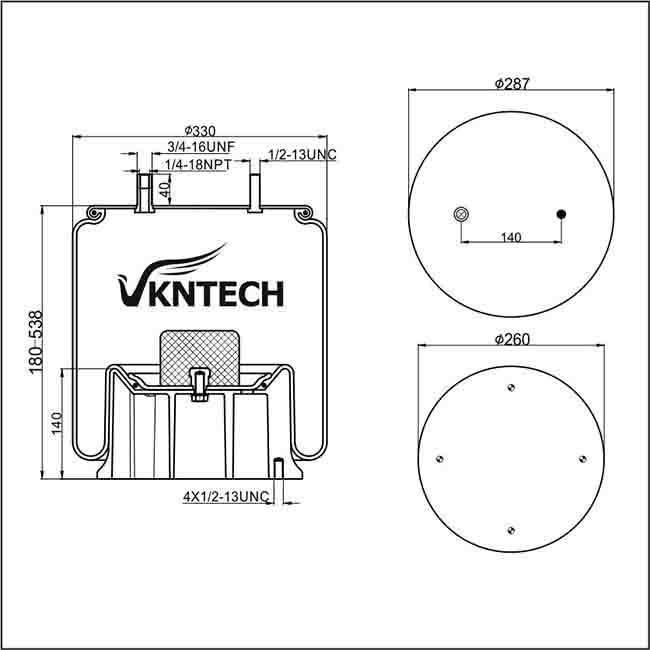

Product Drawing
Specifications
| Air Spring Air Fitting Size | Combination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T. |
| Air Spring Compressed Height | 8.4 in. |
| Air Spring # of Lobes | 1 Solid Sleeve |
| Air Spring Type | 1T - Reversible Sleeve |
| Bead Plate (Top) & Deflated Bellows O.D. | 11.31 and 10.62 in. |
| Bead Plate (Top) Mounting Bolts Dimension Center to Center | 5.50 in. |
| Diameter | 10.62 in. |
| Extended Height Deflated | 21.7 in. |
| Finished Weight | 23.7 lbs |
| Piston (Bottom) Mounting Bolt Dimensions Center to Center | 7.88 in. |
| Piston Height | 5.5 in. |
| Bead Plate Top Diameter | 11.31 in. |
| Bead Plate Bottom Diameter | 10.25 in. |
| Application | Holland (Neway) 90557155 |
| Bottom Bead Plate Hardware Key | 4 x Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons |
| Compressed Height (in.) | 8.4 |
| Extended Height (in.) | 21.7 |
| Firestone Bellows Number | 1T19F-7 |
| Holland (Neway) Number | 905-57-155 |
| Piston Number | 9657 |
| Piston Width (in.) | 10.5 |
| Top Bead Plate Hardware Key | Bold or Stud 1/2-13 |
| Top Plate Width (in.) | 11.31 |
| Top Plate Number | 3388 |
| Triangle Part Number | 8377 |
| Triangle Bellows Number | 6365 |
