ISO9000 Hendrickson Suspension Air Bags W01-358-9580 Firestone Air Spring SC2761
Trailer Air Suspension Hendrickson Suspension Parts Firestone Air Spring W01-358-9580 SC2761
OEM
| Firestone | W01-M58-9580 | ERF TRUCK | 139855-0 |
| W01-M58-9262 | HENDRICKSON TRAILER | C20127 | |
| 1T17CL-9.5 | S20127 | ||
| Goodyear | 1R13-118 | HT-250U | |
| 1R13-144 | (9-006) | ||
| Contitech | 10 10-21 P 434 | HT-250U-Y | |
| (9Y-006) |

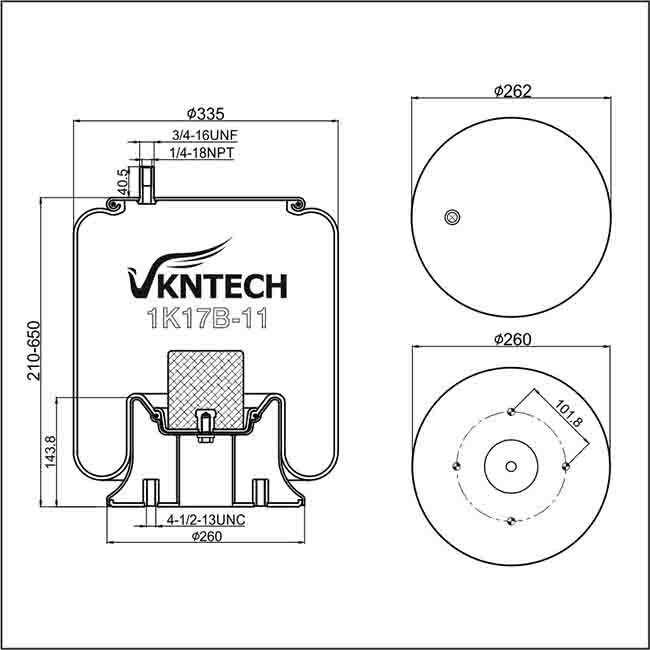

Product Drawing
Specification
| ir Spring Air Fitting Size | Combination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T. |
| Air Spring Compressed Height | 7.4 in. |
| Air Spring # of Lobes | 1 Solid Sleeve |
| Air Spring Type | 1T - Reversible Sleeve |
| Bead Plate (Top) & Deflated Bellows O.D. | 10.38 and 10.62 in. |
| Diameter | 10.62 in. |
| Extended Height Deflated | 24.2 in. |
| Finished Weight | 18.9 lbs |
| Piston (Bottom) Mounting Bolt Dimensions Center to Center | 4.00 in. |
| Piston Height | 5.7 in. |
| Bead Plate Top Diameter | 10.38 in. |
| Bead Plate Bottom Diameter | 10.75 in. |
| Application | Hendrickson Trailer S20127 [HT-250U 9-006] [HT-250UY 9Y-006] replaces 1T15VLT-10.5 1T15V-11W01-358-9262 |
| Bottom Bead Plate Hardware Key | 4 x Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons |
PRODUCT DESCRIPTION
VKNTECH air helper springs, also known as air bags, are used to help keep commercial vehicles from squatting under heavy load. In turn, commercial drivers will experience a more stable, safe and comfortable ride. When in need of replacement air springs for your air suspension system, shop VKNTECH!
This air spring (air bag) from VKNTECH Industries is made for Hendrickson trailer HT-250U 9-006, HT-250UY 9Y006. This reversible sleeve air spring from VKNTECH contains an extended height measurement of 24.2 inches and a compressed height measurement of 7.4 inches. Its top plate number is 3244 and top plate width measures 10.38 inches. Piston number is 9689 and piston width measures 10.75 inches. VKNTECH bellows number: 1T17CL-9.5. Replaces VKNTECH part number W01-358-9262.
This product comes with a limited lifetime warranty.
For over 80 years, VKNTECH Industries Products (VKNTECH) has continued to impress customers with cutting-edge air spring manufacturing and technology. VKNTECH air springs are built to last for all types of heavy-duty commercial vehicles including trucks and trailers; light trucks; mini vans, motorhomes and buses. When in need of replacement air springs (air bags) for heavy-duty applications, look no further than VKNTECH!
FEATURES
Extended height measurement of 24.2 inches
Compressed height measurement of 7.4 inches
Top plate number is 3244
Top plate width measures 10.38 inches
Piston number is 9689
Piston width measures 10.75 inches
VKNTECH bellows number: 1T17CL-9.5
Replaces VKNTECH part number W01-358-9262
