W01-358-9321 Firestone Airbag Replacement NS 501304 1R12-256 Goodyear
Price:
$1.00 - $50.00/Pieces
MOQ:
10 Pieces
Delivery Time:
Negotiable
Brand:
VKNTECH
Product Description
1R12-256 , W01-358-9321 Air Suspension Spring For Truck Air Spring NS 501304,Air Ballons
OEM Reference
| Firestone | W01-358-9321 1T15M-11 |
DAYTON | 352-9321 |
| Goodyear | 1R12-256 | GRANNING | 7640 |
| TRIANGLE | 8361 6373 |
HENDRICKSON | NS501304 |
| NEWAY | 57009321 | ||
| REYCO GRANNING | 7640 | ||
| 85 101 160 | |||
| WATSON & CHALIN | AS-0036 |
Crosses with:
Continental ContiTech 9 10-21 A 361, ContiTech Order # 64715, Airtech No. 39321K, Automann 1DK23N-9321A, Brake & Wheel M3545, Dayton 352-9321, Firestone No. W01-358-9321, Firestone Style 1T15M-11, FleetPride AS9321, Goodyear 1R12-335, Goodyear Flex No. 566243090, Granning 7640, Hendrickson B-14249, Hendrickson NS501304, Loadguard SC2120, Ridewell 1003589321C, SAF Holland 57009321, Taurus 6373, Triangle AS-8361, 85101160, Watson & Chalin AS-0036-G

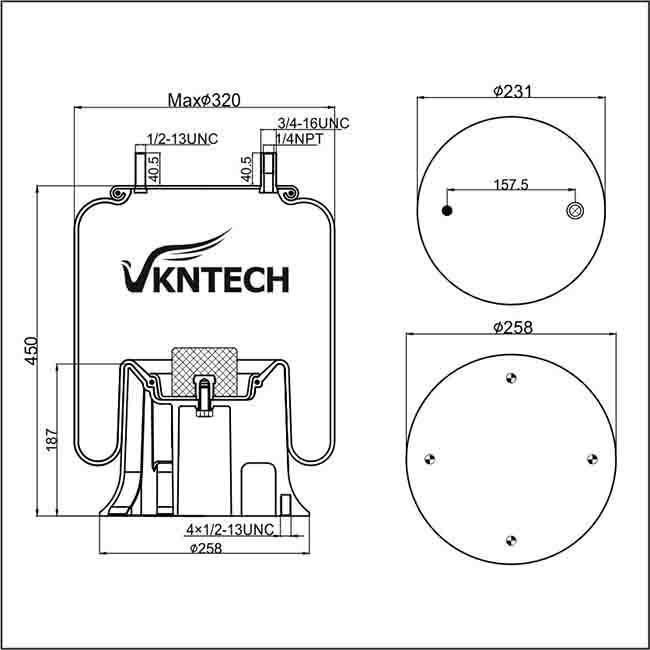

Product Drawing
If you searched our site using your air springs part number then odds are we took you to the right place. If you feel your trucks air spring looks nothing like the schematic feel free to contact us and we will be glad to double check for you.
Technical Data
| Order Number: | W01-358-9321 |
| Bellows #: | 1T15M-11 |
| Assembly Weight: | 19.8 lbs |
| Design Height: | 16-20 inches |
| Minimum Jounce Height: | 9.5 inches |
| Maximum Rebound Height: | 26.78 inches |
| Loading Capacity at 20 psig: | 1,470 lbsf |
| Loading Capacity at 60 psig: | 4,410 lbsf |
| Loading Capacity at 90 psig: | 6,615 lbsf |
| Natural Frequency: | Hz |
| Maximum Diameter: | 12.8 inches |
| Material Type: | Natural Rubber |
| Operating Temperature: | 57Cº to-54Cº |
| Remarks: M-11 ON M-9 PISTON |
We provide replacement Air Springs / Air Bags / Suspension parts for the following Semi Heavy Duty Truck brands - Kenworth, Mercedes, , Peterbilt, Hendrickson, Navistar, Freightliner and more.
