Natural Rubber 9 10S-16 A 382 Contitech Air Spring Systems 1R12-303 W01-358-9780
Price:
$1.00 - $50.00/Pieces
MOQ:
10 Pieces
Delivery Time:
Negotiable
Brand:
VKNTECH
Product Description
W01-358-9780 , 9 10S-16 A 382 Air Suspension Spring For Truck Air Spring 1R12-303 Air Ballons
OEM Reference
| Firestone | W01-358-9780 | FREIGHTLINER | 16-13810-000 |
| W01-358-5779 | |||
| 1T15ZR-6 | |||
| Goodyear | 1R12-303 | ||
| 1R12-186 | |||
| 1R12-189 | |||
| Phoenix | 1DK23K9780 | ||
| Contitech | 9 10S-16 A 382 |
Firestone 9780, Firestone 8537, Freightliner 16-13810-000, 16-13810-001, 16-13810-002, 681-320-0017, A16-14004-000, A16-14004-001, Firestone W01-358-9780, W01-377-8537, Goodyear 1R12-189, 1R12-303, 1R12-186, Triangle 8382, Contitech 910S-16P382, Watson & Chalin AS01471G, Freightliner 1613810000, 1613810001, 1613810002, 6813200017, A1614004000, A1614004001, Firestone W013589780, W013778537, Goodyear 1R12189, 1R12303, 1R12186, Triangle 8382, Contitech 910S16P382, Watson & Chalin AS01471G

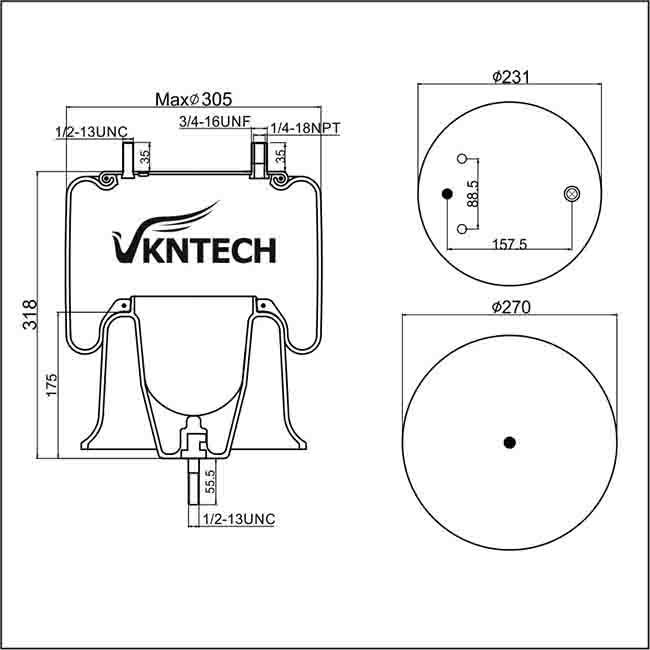

Product Drawing
Technical Data
| Order Number: | W01-358-9780 |
| Bellows #: | 1T15ZR-6 |
| Assembly Weight: | 16.6 lbs |
| Design Height: | 13-15.5 inches |
| Minimum Jounce Height: | N/A inches |
| Maximum Rebound Height: | N/A inches |
| Loading Capacity at 20 psig: | 1,600 lbsf |
| Loading Capacity at 60 psig: | 4,800 lbsf |
| Loading Capacity at 90 psig: | 7,200 lbsf |
| Natural Frequency: | Hz |
| Maximum Diameter: | 12.7 inches |
| Material Type: | Natural Rubber |
| Operating Temperature: | 57Cº to-54Cº |
QUALITY - Easy to identify part number permanently engraved on the rubber. 4.5 - 5.00 mm thick rubber that exceeds OEM requirements. 25% stronger 4140 grade steel studs. Stronger composite pistons. Highest leak test ratio after final assembly. Industry's only air spring backed with a Limited Lifetime Warranty.
✅ SPECS -
Extended Height: 23.00"
