GRANNING 6252 Natural Rubber Air Bag Suspension Spring/ 1R10-036 Air Ride Suspension System Spare Parts W01-358-9049
Price:
$1.00 - $50.00/Pieces
MOQ:
20 Pieces
Delivery Time:
Negotiable
Brand:
VKNTECH
Product Description
| AIRSTROKE ACTUATOR | |
| Maximum Diameter @ 100 PSIG (inches) | 11.1 |
| Maximum Height (inches) | 16 |
| Maximum Stroke (inches) | 10 |
| Minimum Usable Height (inches) | 6 |
| Force @ 80PSI at Stroke of 1 Inch (pounds) | 5070 |
| Force @ 80PSI at Stroke of 3 Inch (pounds) | 4420 |
| Force @ 80PSI at Stroke of Maximum Stroke (pounds) | 2830 |
| Material | 2-Ply Standard Cord |
| END CLOSURE DETAILS | |
| Bead plate Type | 3 |
| Blind Nut Centers (inches) | 6.2 |
| Port Offset from Blind Nut Centerline (inches) | 2.88 |
| AIRMOUNT ISOLATOR | |
| Design Height | 12 |
| Load (at Design Height) at: 40 psig (pounds) | 2040 |
| Load (at Design Height) at: 60 psig (pounds) | 3140 |
| Load (at Design Height) at: 80 psig (pounds) | 4220 |
| Natural Frequency (@80 psig) (cpm) | 74 |
| % of Isolation at Forced Frequency 400 CPM | 96.5 |
| % of Isolation at Forced Frequency 800 CPM | 99.1 |
| % of Isolation at Forced Frequency 1500 CPM | 99.8 |
GRANNING 6252 Natural Rubber Air Bag Suspension Spring/ 1R10-036 Air Ride Suspension System Spare Parts W01-358-9049
OEM Numbers
| Firestone | W01-358-9049 1T15AA-3 1T15S-6 |
GRANNING | 6252 |
| Goodyear | 1R10-036 |

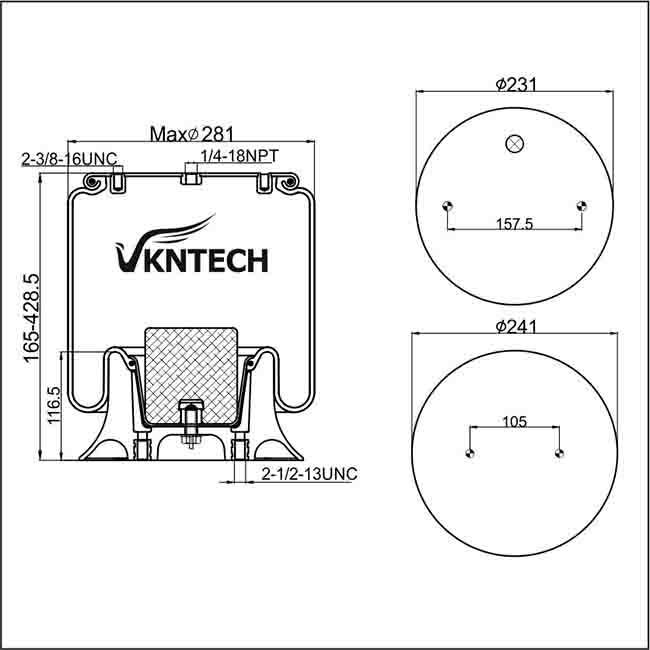

Prodcut Drawing
Technical data
| AIRSTROKE ACTUATOR | |
| Maximum Diameter @ 100 PSIG (inches) | 11.1 |
| Maximum Height (inches) | 16 |
| Maximum Stroke (inches) | 10 |
| Minimum Usable Height (inches) | 6 |
| Force @ 80PSI at Stroke of 1 Inch (pounds) | 5070 |
| Force @ 80PSI at Stroke of 3 Inch (pounds) | 4420 |
| Force @ 80PSI at Stroke of Maximum Stroke (pounds) | 2830 |
| Material | 2-Ply Standard Cord |
| END CLOSURE DETAILS | |
| Bead plate Type | 3 |
| Blind Nut Centers (inches) | 6.2 |
| Port Offset from Blind Nut Centerline (inches) | 2.88 |
| AIRMOUNT ISOLATOR | |
| Design Height | 12 |
| Load (at Design Height) at: 40 psig (pounds) | 2040 |
| Load (at Design Height) at: 60 psig (pounds) | 3140 |
| Load (at Design Height) at: 80 psig (pounds) | 4220 |
| Natural Frequency (@80 psig) (cpm) | 74 |
| % of Isolation at Forced Frequency 400 CPM | 96.5 |
| % of Isolation at Forced Frequency 800 CPM | 99.1 |
| % of Isolation at Forced Frequency 1500 CPM | 99.8 |
