B-12514-004/S2063 Natural Rubber Air Spring/1R14-019 Air Suspension Spring Parts For OEM Piston Steel 11 10.5-21 A 318
Price:
$1.00 - $50.00/Pieces
MOQ:
20 Pieces
Delivery Time:
Negotiable
Brand:
VKNTECH
Product Description
B-12514-004/S2063 Natural Rubber Air Spring/1R14-019 Air Suspension Spring Parts For OEM Piston Steel 11 10.5-21 A 318
OEM Numbers
| Contitech | 11 10.5-21 A 318 | MFG.SV.# NEWAY | 90044197 |
| Goodyear | 1R14-019 | NEWAY | 90557005 |
| Firestone | W01-358-9152 | 90557069 | |
| W01-358-9158 | HENDRICKSON | B-12514-004 | |
| 1T19L-11/F-11 | B-12514-011 | ||
| HENDRICKSON TRAILER | S2063 | ||
| RIDEWELL | 1003589158C |

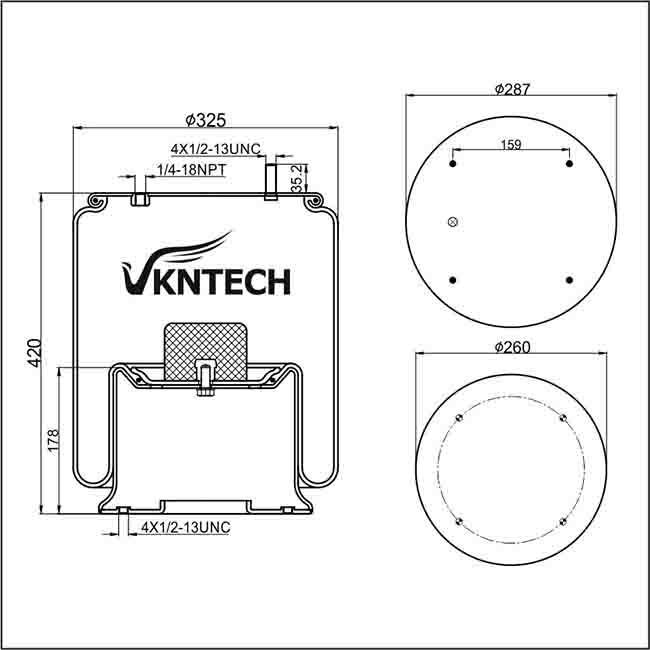

Product Drawing
Specifications
| Air Spring Compressed Height | 8.7 in. |
| Air Spring Type | 1T Reversible Sleeve |
| Diameter | 10.62 in. |
| Maximum Height | 27.3 in. |
| Piston Height | 7 in. |
| Bead Plate Top Diameter | 11.31 in. |
| Top Mount | stud |
| Bottom Stud Configuration | 4 |
| Bottom Mount | flat |
| Top Stud Configuration | 5 |
| Bead Plate Bottom Diameter | 10.3 in. |
| Application | Hendrickson Trailer S2063, Holland (Neway) 90557069,MFG.SV.# Neway 90044197, Porcupine, Peerless |
| Assembled Product Weight (lb) | 24 |
| Bellows | 1T19L-11 |
| Design Height (in.) | 14.5-18.5 |
| Loading Capacity at 20 psig | 1,760 lbsf |
| Loading Capacity at 60 psig | 5,280 lbsf |
| Loading Capacity at 90 psig | 7,920 lbsf |
| Maximum Diameter | 13.7 |
| Minimum Jounce Height (in.) | 8.88 |
| Natural Frequency | Hz |
| Operating Temperature (Deg C) | 57 to -54 |
Featues and Benefits
-
· Require little to no maintenance
-
· Pressure tested for quality assurance
-
· Increase towing and hauling capabilities
-
· Replace worn out oem air bags
-
· Increase life of other suspension components
-
· NO maintenance required – these air bags are true workhorses and do not require any upkeep after the initial installation
-
· Direct replacement from OEM air springs – no additional components required
-
· Great for extending the life of your suspension as a whole – VKNTECH air springs are the most conveinent and reliable solution
-
· Spring Pro Bellows Number: TR9158
-
· Goodyear Bellows Number: 566-28-3-020
-
· Goodyear Part Number: 1R14-030
-
· Firestone Bellows Number: 1T19F-11 or 1T19L-11
-
· Firestone Part Number: W01-358-9158
-
· Replaces: Hendrickson Can. B-12514-004, Hendrickson Can. B-12514-011, Neway 90557005, Hendrickson Trailer S2063, Neway 90557069, Ridewell 1003589158C, Mfg SV# Neway 90044197
-
· Cross References: E1R14030, 1R14030, 9152, 8318, 8369, 352-9158, B-12514-004, B-2063, 36514-1, 36514-4, 554780C1, SC2045, AR-1215-1-F, 90557005, 90557069, S-2574C, AS622-9158, 64352, 11 10.5-21 A 318, 1110.5-21A318, 1110.521A318, W01-358-9158, W013589158
-
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
