S2827/S11566 Natural Rubber Air Spring/1R12-352 Air Suspension Spring Parts For OEM Piston Aluminum W01-358-9010 9 10-14
S2827/S11566 Natural Rubber Air Spring/1R12-352 Air Suspension Spring Parts For OEM Piston Aluminum W01-358-9010 9 10-14
OEM Numbers
| Contitech | 9 10-14 P 345 | RIDEWELL | 1003589010C |
| Firestone | W01-358-9010 | (replace 9064C) | |
| 1T15M-4 | REYCO | 1003589010C | |
| Goodyear | 1R12-352 | HENDRICKSON TRAILER | S2827 |
| S11566(remove bolt) | |||
| WATSON & CHALIN | AS-0044 |

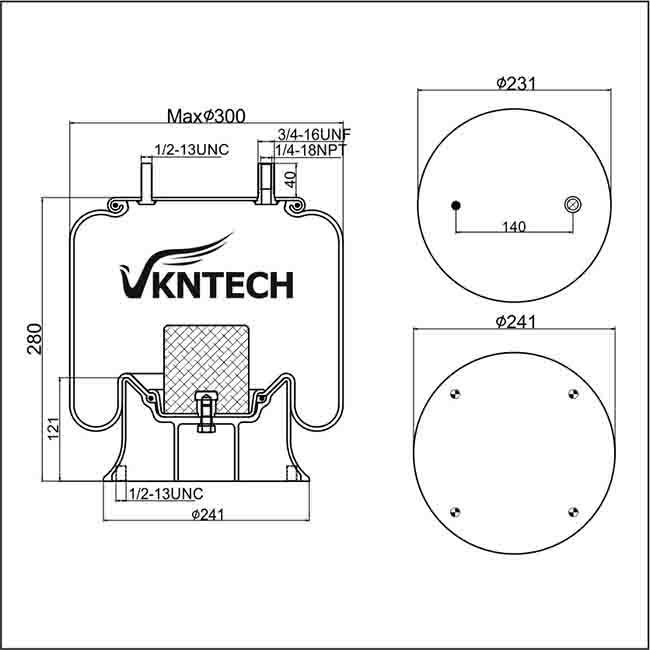

Drawing
Special Notes
The 280-9213 can be used to replace Firestone W01-358-9219 and W01-358-9296 air bags by loosening the base, rotating the base to line up the studs top and bottom, and retightening the base. You will also need to reuse the top bracket off of the W01-358-9296. The W01-358-9219 does not use a top bracket.
Product Description
Manufacturer: Spring Pro
Spring Pro Bellows Number: 889213
Goodyear Bellows Number: 566-24-3-038
Goodyear Part Number: 1R12-090
Firestone Bellows Number: 1T15M-6
Firestone Part Number: W01-358-9213
Replaces: Navistar 501259C-1, Navistar 501559C-2 and Navistar 1660581C-1, /GM Heavy Duty Truck 350003-3201 (rotate piston), /GM Heavy Duty Truck 352223-3203 (rotate piston), /GM Heavy Duty Truck 350003-3204 (rotate piston), /GM Heavy Duty Truck 350003-3209 (rotate piston), /GM 8061151 (rotate piston & reuse top bracket), /GM 8169868 (rotate piston & reuse top bracket)
Cross References: 350003-3201, 352223-3203, 350003-3204, 350003-3209, 8061151, 8169868, 1R12182, E1R12090, E1R12182, 1R12090, 1R12204, 501559C2, 566243067, 9219, 9296, 8407, 8441, 167240C1, 1R12182, 1R12400, 1R12-090, 352-9213, 1660581C1, 501559C1, 501559C2, SC2048, 8407, 64308, 9 10-16 P 441, 910-16P441, 91016P441, W01-358-9213, W013589213, W01-358-9219, W013589219, W01-358-9296, W013589296
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
Technical Data
| Air Spring Compressed Height | 7.1 in. |
| Air Spring Type | 1T Reversible Sleeve |
| Diameter | 10.12 in. |
| Maximum Height | 18 in. |
| Piston Height | 4.75 in. |
| Bead Plate Top Diameter | 9 in. |
| Top Mount | stud |
| Bottom Stud Configuration | 4 |
| Bottom Mount | flat |
| Top Stud Configuration | 2 |
| Bead Plate Bottom Diameter | 9.5 in. |
| Application | Hendrickson Trailer S11566 (remove bolt), Watson & Chalin AS-0044, |
| Assembled Product Weight (lb) | 16.2 |
| Bellows | 1T15M-4 |
| Design Height (in.) | 10.5-12.5 |
| Loading Capacity at 20 psig | 1,410 lbsf |
| Loading Capacity at 60 psig | 4,230 lbsf |
| Loading Capacity at 90 psig | 6,345 lbsf |
| Maximum Diameter | 12.5 |
| Maximum Rebound Height (in.) | 17.78 |
| Minimum Jounce Height (in.) | 7.1 |
| Natural Frequency | Hz |
| Operating Temperature (Deg C) | 57 to -54 |
