0083656 836M2K8 Rubber Air Shock Absorber/ Air Ride Suspension System Air Spring Steel Parts Steel Piston W01-M58-8703

0083656 836M2K8 Rubber Air Shock Absorber/ Air Ride Suspension System Air Spring Steel Parts Steel Piston W01-M58-8703

OEM Numbers

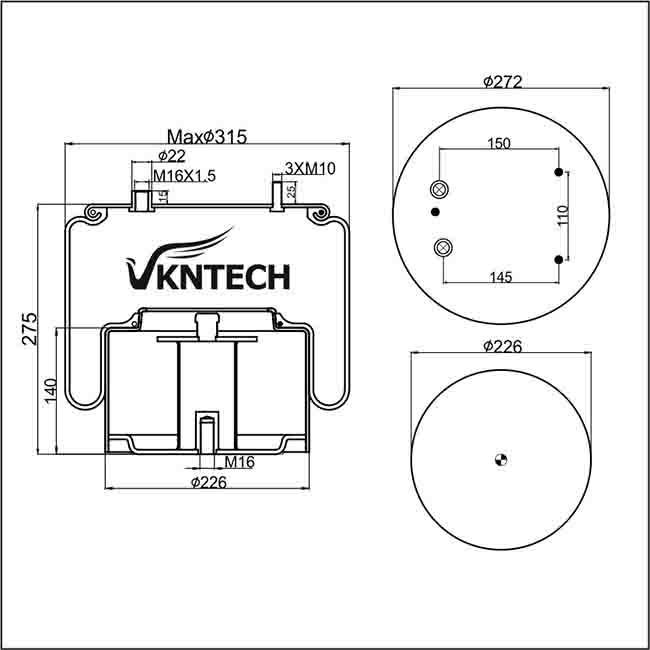

Air Spring Drawing

Technical Data

Assembly weight 8,6 kg
Loading capacity at pressure = 5 bar 24,5 kN
Loading capacity at pressure  max. = 6,5 bar 31,9 kN
Loading capacity at pressure  min. = 0,3 bar 1,5 kN
Deflection (Height min.) 185 mm
Deflection (Height max.) 440 mm
Measurement d max. 300 mm
Space required (dR) 315 mm
Design height (h) 278 mm
Natural frequency 1,20 Hz
Piston volume 0,0 dm³

Advantage of the Air Spring

The air spring plays crucial role to improve the comfortable of driver, and make transportation easier.

-Prevent cargo, truck body and accessories transportation from damage as it's low frequency.

-Lifting & dropping the chassis height with the help of the adjustment device to facilitate loading &unloading.

-Vehicles equipped with air spring also can protect road as it's low frequency decreased the impact to road.
