Truck Chassis Parts 1T19F-7 Air Suspension Springs W01-358-9141 Firestone Airide Springs

Firestone Airide Springs W01-358-9141 / 1T19F-7 Rubber Air Balloon For Truck Chassis Parts Air Bag Suspension

OEM Reference

352-9141 9141 W01-358-9141 Firestone Air Spring Assembly 1R14-215

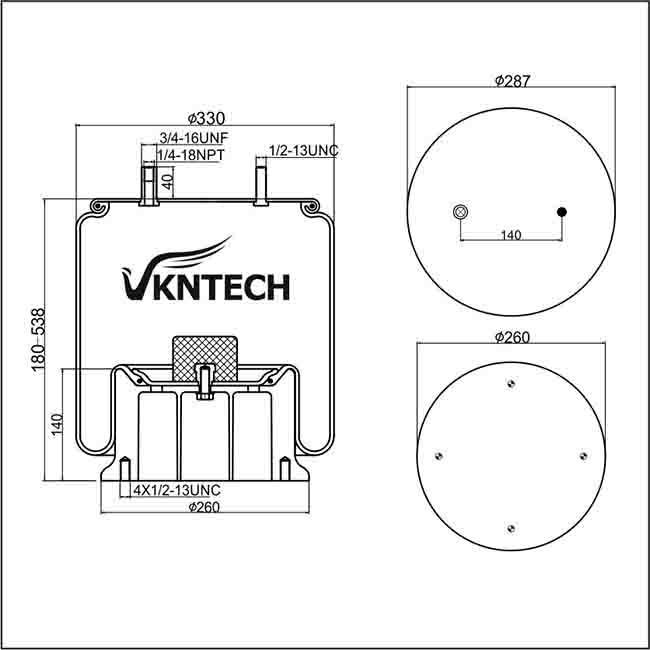

Product Drawing

Technical data

Design heighe : 2 6 0mm
Deflection (Hight min) : 1 80mm
Deflection (Hight max) : 4 1 5mm
Working stroke : 2 3 5 mm
Measurement d max : 2 9 5 mm
Space required : 3 1 0 mm
Loading cap. at 1.0bar : 3 . 5 k N
Loading cap. at 9.5bar : 4 0 . 0 kN

About this item

COMPATIBILITY VEHICLES - Our Air Suspension Air Bag W01-358-9422 compatible with Firestone/Airtech/ContiTech/Goodyear//NEWAY/Ridewell/Triangle

LOW FRICTION ACTION - Because there is a flexible rubber member separating the rigid attachment points to the frame and suspension, there is freedom to move about all six degrees of freedom without the resistance and squeaks experienced by the rigid interactions characteristic of steel leaf and coil springs.
User-friendly Height Control - Using air pressure from the compressor, the air spring height can be maintained by a closed loop control system or adjusted to other desired heights. This allows for “load leveling” and “squatting” capabilities that steel springs cannot offer.

RIDE COMFORT - The use of air springs combined with automatic vehicle leveling ensures that the vehicle body is both suspended flexibly and kept at a constant ride height whatever the payload. This maximizes passenger comfort and suspension travel at all times.

VARIABLE LOAD-CARRYING CAPABILITY - The load an air spring can carry can be adjusted over a wide range, without changing the air spring height, simply by changing the air pressure. In addition to changing the load-carrying capability, a change in air pressure will also afford the benefit of changing the spring rate without changing the height and without a significant change in the natural frequency
