Ceramic Sleeve Hybrid Fiber Optic SC To ST Adapter For CATV CCTV FTTH
Ceramic Sleeve Hybrid Fiber Optic SC To ST Adapter For CATV CCTV FTTH

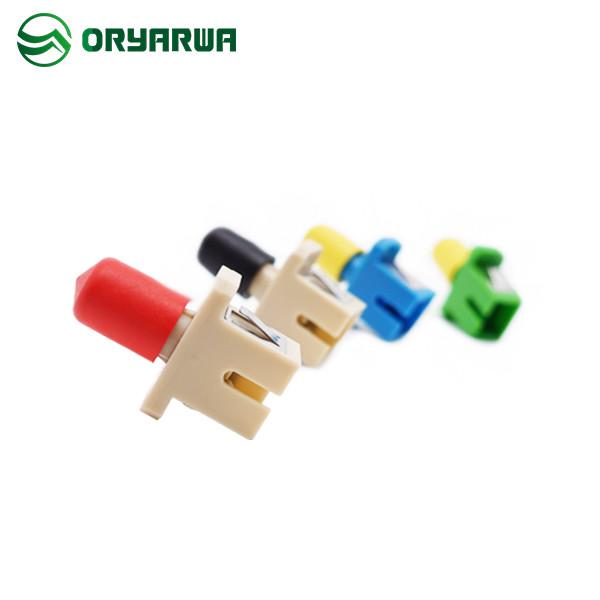

SC to ST Simplex Optical Hybrid Fiber Adapter
|
Product Name |
SC to ST Hybrid Fiber Optic Adapter |
Color |
Green/Blue/Beige/Aqua/Violet |
|---|---|---|---|
|
Mode Type |
Singlemode, Multimode |
Insertion Loss |
≤0.2dB |
|
Sleeve Pull Force |
2-5.9N |
Durability |
≤0.2dB( 500 Times) |
|
Operating Temp. |
-40℃~+80℃ |
Standards |
IEC613000 |
Environmental and Mechanism:
|
Properties |
Test Condition |
Conformance |
Test Result |
|---|---|---|---|
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
500 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-12 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-6 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +85ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%RH, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
Features:
> Low insertion loss and back reflection loss
> With high precise dimension
> Good repeatability and exchange ability
> Flammability UL94 V-0 standard
> Strict curing time and temperature control
> Strict testing standards and methods for quality
> Meet IEC and ROHS standards
> The fiber optical adapter can be customized according to customers' specific requirements
(Customized Connector/Length/package...)
> Ease of installation
Fiber Optic Adapter Application:
> High speed transmission systems
> Fiber optic sensing
> Industrial, Mechanical and Military
> Fiber Optic Telecommunications
> LAN (Local Area Network)
> FTTH (Fiber To The Home)
> CATV&CCTV System
Drawing:
Reports:
