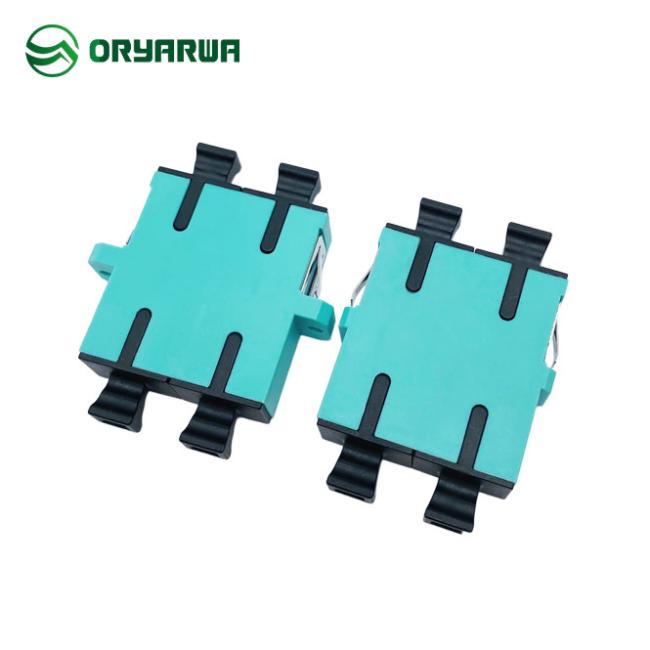

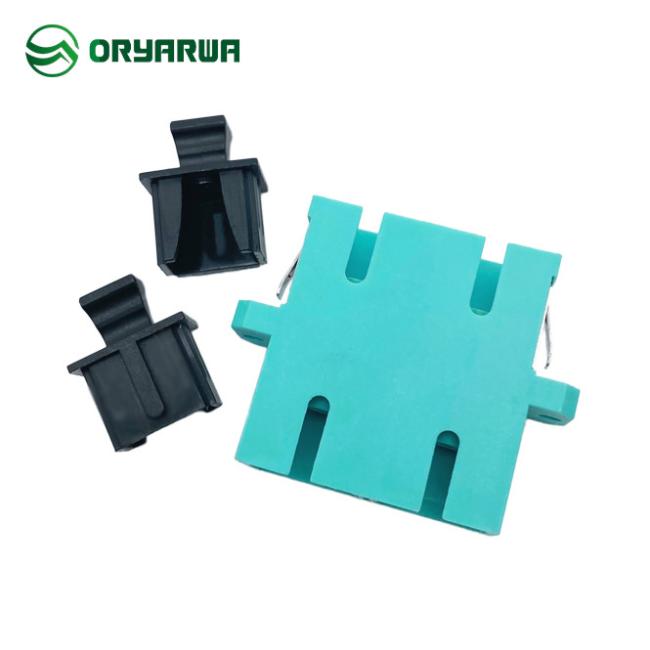

One Piece Type OM3 OM4 Duplex SC Fiber Optic Adapter
One Piece Type OM3 OM4 Duplex SC Fiber Optic Adapter
SC SM OM3 OM4 Duplex One Piece Molding Fiber Optic Adapter For Optical Fiber Panel FTTH
|
Product Name |
Aqua SC Duplex One Piece Type Fiber Optic Adapter | Color | Aqua |
|---|---|---|---|
| Mode Type | Singlemode, Multimode | Insertion Loss | ≤0.2dB |
| Sleeve Pull Force | 2-5.9N | Durability | ≤0.2dB( 500 Times) |
| Operating Temp. | -40℃～+80℃ | Standards |
IEC61754-4-2013 / IEC613000 |
Environmental and Mechanism:
| Properties | Test Condition | Conformance | Test Result |
|---|---|---|---|
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 500 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-12 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-6 | ≤0.2dB |
| Temperature Cycling | 40ºC to +85ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%RH, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
Features:
> Complies with IEC 61754-4, Flammability UL94 V-0 standard
> Available in Flanged and Flangeless options
> Precision connection with zirconia sleeve
> Low insertion loss, High Return loss
> Good interchangeability and reliability
> Meet IEC and ROHS standards
> High precision of mechanical dimensions Accuracy
Fiber Optic Adapter Application:
> Telecommunication Networks.
> Communication System.
> Test Equipment.
> Fiber CATV.
> FTTH.
FAQ:
Q1: How can I get the sample?
Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,
our clients just need offer express account and pay the freight.
Q2: What is your MOQ?
Our MOQ is 1000PCS for Our normal models, if you need to open new mold.
MOQ will be check again based on your design.
Q3: What is your Lead time?
Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have
enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.
OEM project will be check delivery time again.
Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design
new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.
Q5: What certifications do you have?
All our product meet IEC standard, pass REACH, RoHS test.
