A01: Plastic Spraying Steel Pallet Single Deck Steel Pallet Metal Pallet

Name: A01: Plastic Spraying Steel Pallet Single Deck Steel Pallet Metal Pallet
Brand: Anhui Huayide Intelligent Storage Equipment Co., Ltd.

Price Negotiable

Price: can be negotiable

MOQ: 10 sets

Delivery Time: 10-20 working days

Brand: Huayide

Product Description

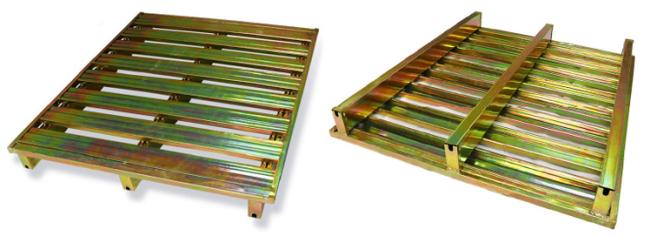

Single Deck Steel Pallet

——

pallet is a flat transport structure, which supports goods in a stable fashion while being lifted by a forklift, a pallet jack,a front loader, a jacking device, or an erect crane. A pallet is the structural foundation of a unit load which allows handling and storage efficiency. Goods or shipping containers are often placed on a pallet secured with strapping, stretch wrap or shrink wrap and shipped. Since its invention in the twentieth century, its use has dramatically supplanted older forms of crating like the wooden box and the wooden barrel, as it works well with modern packaging like corrugated boxes and intermodal containers commonly used for bulk shipping.

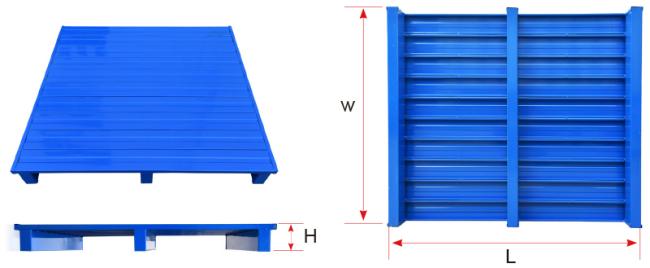

Specification

—

2-Way Entersteel Palate

Size	Steel Surface	Weight	Static Load	Dynamic Load
1000×1000×125mm	Full Steel Surface	22	1.5 Ton	2～2.5 Ton
1000×1000×125mm	Gap Steel Surface	19	0.8 Ton	1.5～2 Ton
1000×1100×125mm	Full Steel Surface	24	1.5 Ton	2～2.5 Ton
1000×1100×125mm	Gap Steel Surface	20	0.8 Ton	1.5～2 Ton
1000×1200×125mm	Full Steel Surface	25	1.5 Ton	2～2.5 Ton
1000×1200×125mm	Gap Steel Surface	22	0.8 Ton	1.5～2 Ton
1100×1100×125mm	Full Steel Surface	25	1.5 Ton	2～2.5 Ton
1100×1100×125mm	Gap Steel Surface	23	0.8 Ton	1.5～2 Ton
1100×1200×125mm	Full Steel Surface	27	1.5 Ton	2～2.5 Ton
1100×1200×125mm	Gap Steel Surface	24	0.8 Ton	1.5～2 Ton
1200×1200×125mm	Full Steel Surface	30	1.5 Ton	2～2.5 Ton
1200×1200×125mm	Gap Steel Surface	25	0.8 Ton	1.5～2 Ton

4-Way Entersteel Palate

Size	Steel Surface	Weight	Static Load	Dynamic Load
1000×1000×125mm	Full Steel Surface	24	1.5 Ton	2～2.5 Ton
1000×1000×125mm	Gap Steel Surface	20	0.8 Ton	1.5～2 Ton
1000×1100×125mm	Full Steel Surface	25	1.5 Ton	2～2.5 Ton
1000×1100×125mm	Gap Steel Surface	21	0.8 Ton	1.5～2 Ton
1000×1200×125mm	Full Steel Surface	26	1.5 Ton	2～2.5 Ton
1000×1200×125mm	Gap Steel Surface	22	0.8 Ton	1.5～2 Ton
1100×1100×125mm	Full Steel Surface	27	1.5 Ton	2～2.5 Ton
1100×1100×125mm	Gap Steel Surface	23	0.8 Ton	1.5～2 Ton
1100×1200×125mm	Full Steel Surface	28	1.5 Ton	2～2.5 Ton
1100×1200×125mm	Gap Steel Surface	24	0.8 Ton	1.5～2 Ton
1200×1200×125mm	Full Steel Surface	31	1.5 Ton	2～2.5 Ton
1200×1200×125mm	Gap Steel Surface	27	0.8 Ton	1.5～2 Ton

Size, color, thicknessall can customized bycustomer requirement.

Main Feature

——

1. Green products,Made of heavy duty prime quality Q235 steel for greater strength.
2. Stackable for efficient storage.
3. Offers excellent durability at the lowest cost, more durable competitive than plastic, wood
4. Accessable, 4 way and 2 way entry.
5. Excellent surface powder paint coating finish.
6. Galvanized Steel Pallets have advantages in cold storage.
7. Power Coated Pallets are available in various color options.

Other Types

——

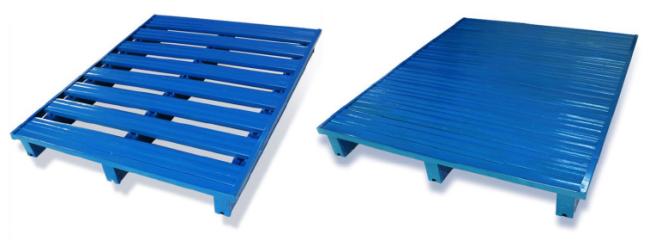

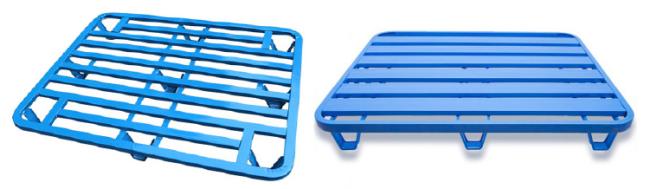

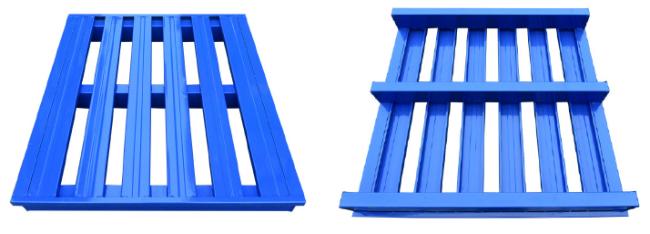

Plastic Spraying , Half Cover, 2 ways in | Plastic Spraying , Full Cover, 2 ways in

Color zinc , Half Cover, 2 ways in

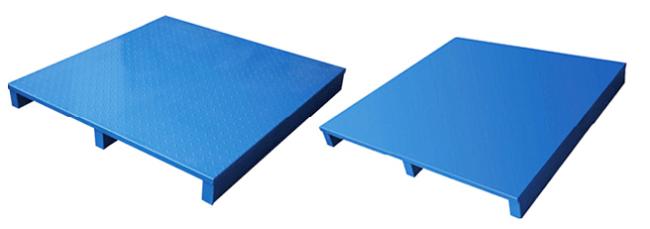

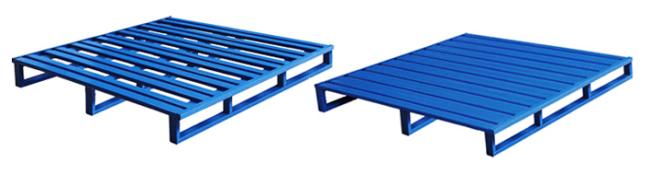

Plastic Spraying , Surface anti-skid pattern, 2 ways in | Plastic Spraying , Surface Flat, 2 ways in

Plastic Spraying , Surface anti-skid pattern, 4 ways in | Plastic Spraying , Surface Flat, 4 ways in

Plastic Spraying , Light duty 9 feet , 4 ways in | Plastic Spraying , 9 feet, 4 ways in

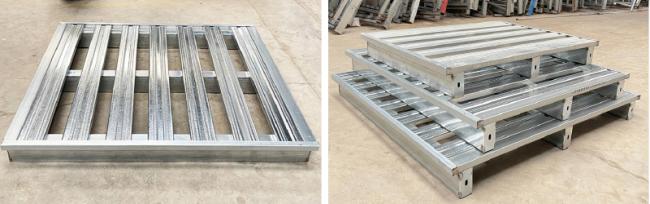

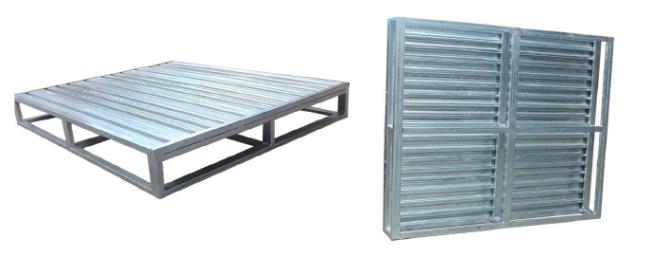

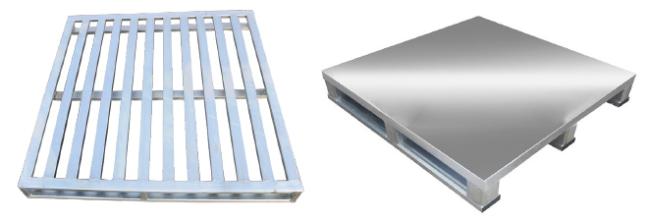

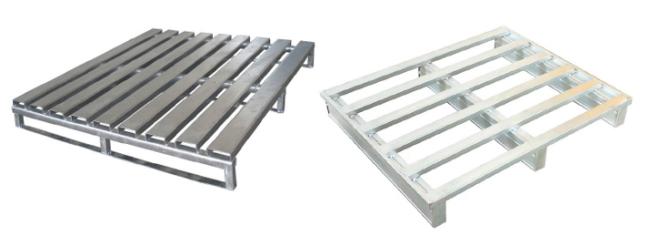

Galvanized Single Deck Steel Pallet

Steel Pallet · Warehouse Storage Rack · Made In China

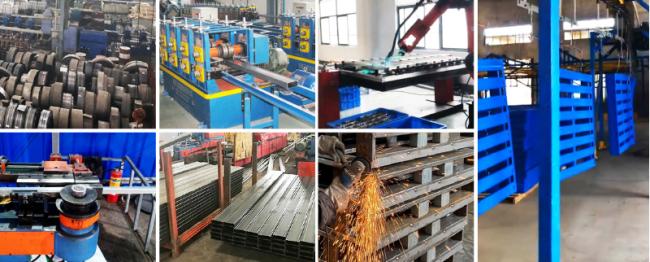

Ensure the quality of Huayide racking products

—

1	The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
2	The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
3	Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
4	Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
